2020-2026 Duramax HD Stage 3 FOX 2.0 Performance Leveling System (AXGM20STAGE3FOX2.0)

The Axiom Supply Stage 3 system levels your 2020-2026 GM HD and fixes the geometry problems a basic key kit leaves behind. Forged torsion leveling keys add up to 2" of front ride height, true double-shear upper control arms restore proper operating angles, and a full set of vehicle-specific FOX Performance Series 2.0 IFP shocks (front and rear) handles the damping. It is a complete bolt-on package for trucks that tow, haul, and see rough ground.

Part Number: AXGM20STAGE3FOX2.0

• Complete set of four FOX Performance Series 2.0 IFP shocks, sized and valved specifically for leveled GM HD trucks
• Monotube Internal Floating Piston design separates shock oil from the nitrogen charge to prevent aeration and damping fade
• Impact extruded aluminum shock bodies for better heat dissipation and corrosion resistance
• Forged torsion leveling keys deliver up to 2" of front ride height adjustment while keeping proper torsion bar indexing

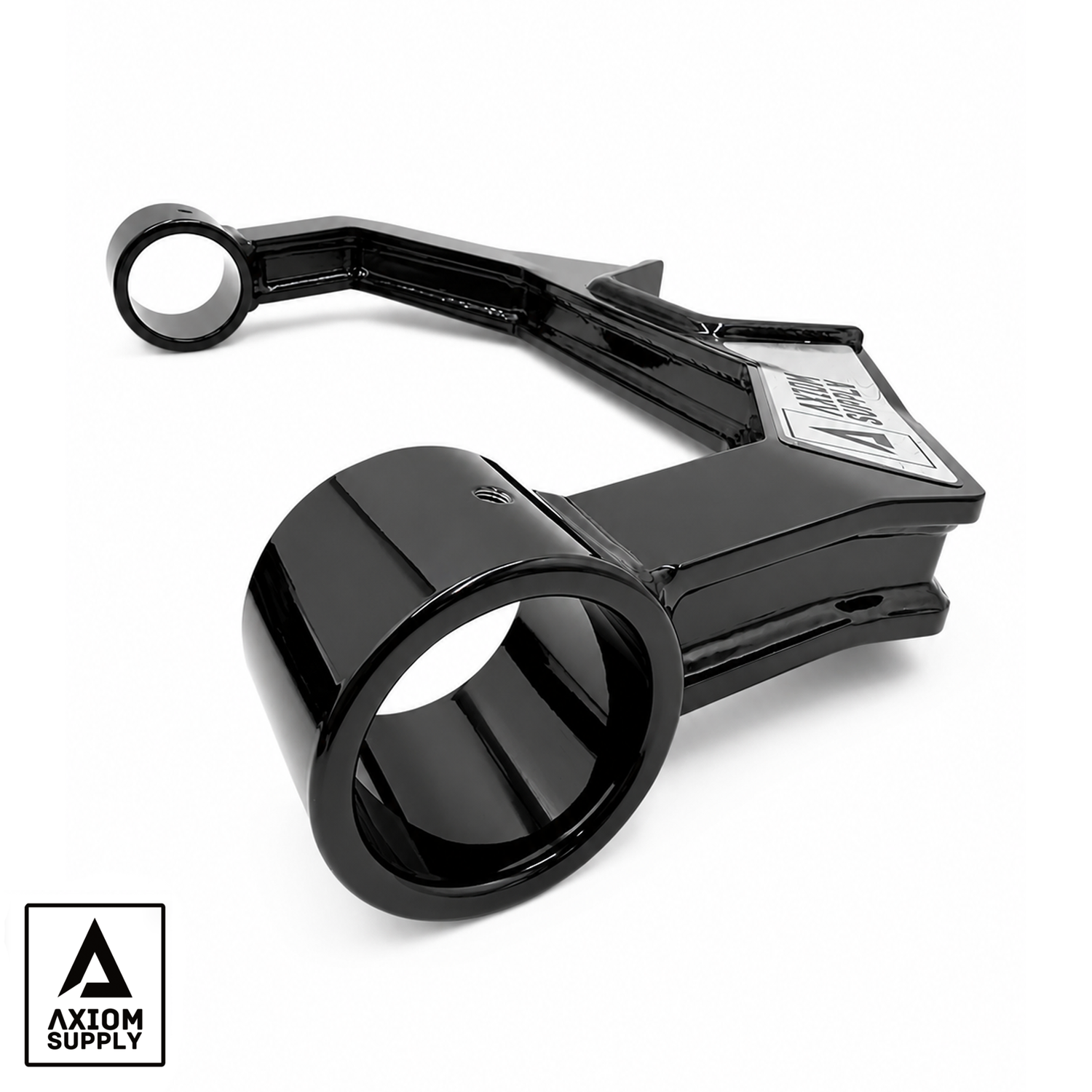

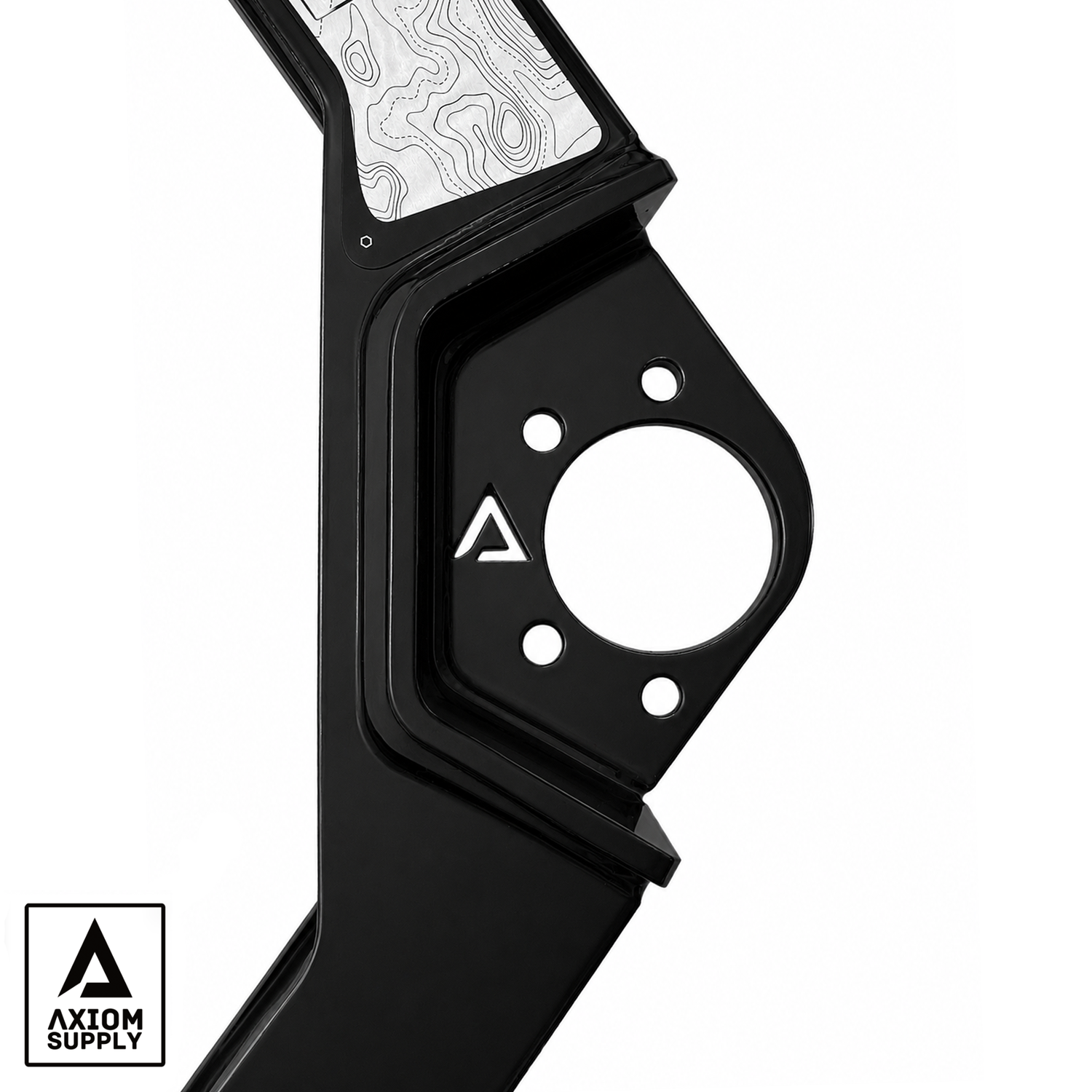

• True double-shear upper control arms built from laser-cut 3/16" steel plates, hand welded into a rigid boxed structure
• Equipped with AX6292 Grade 12.9 bolt-on upper ball joints for maximum stud strength and steering precision
• Dual-position ball joint mounting (above or below the plate) for extra alignment flexibility
• Greaseable, service-friendly design with premium bushings and sleeves

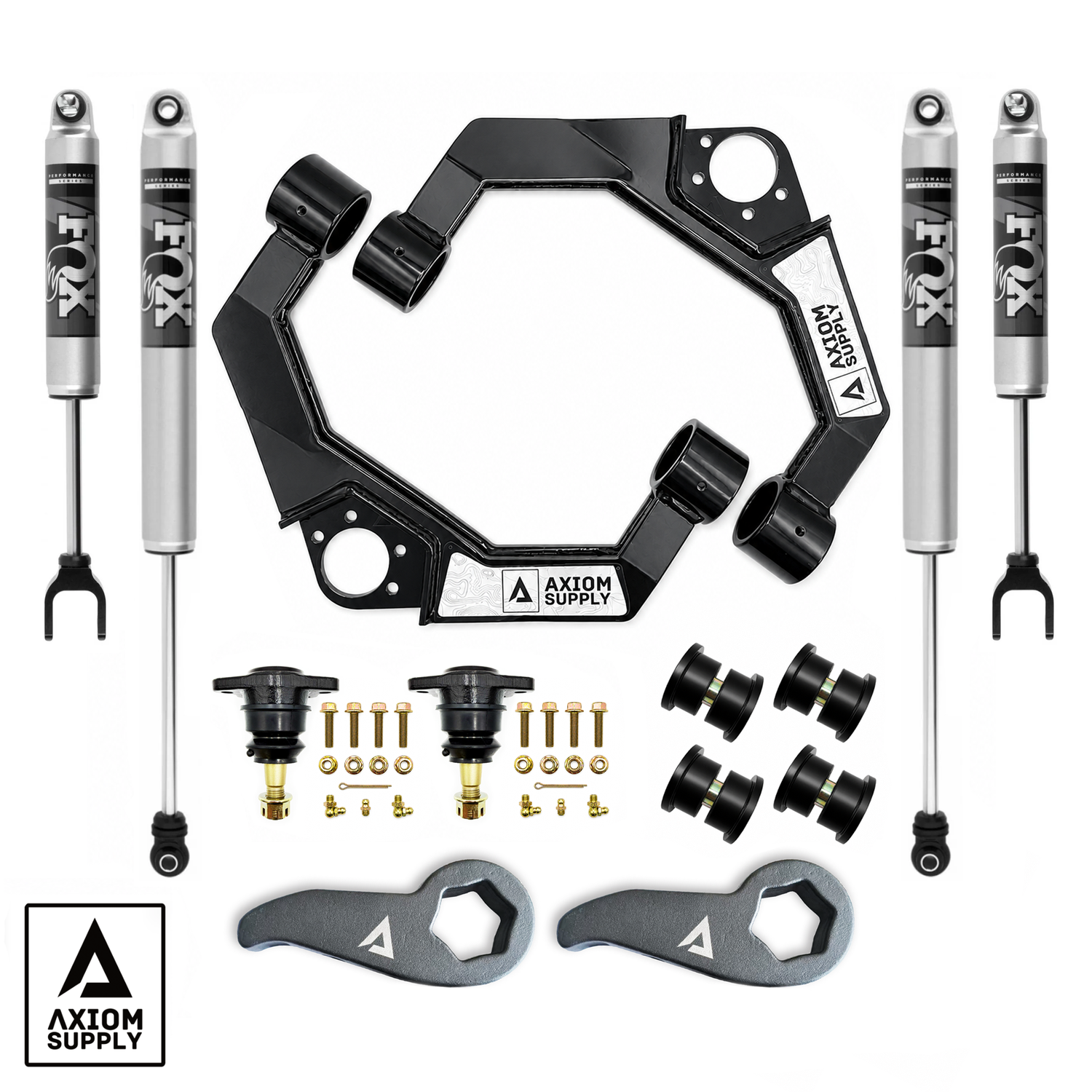

• (2) Axiom Supply Heavy-Duty Upper Control Arms
• (2) Axiom Supply AX6292 Grade 12.9 Bolt-On Upper Ball Joints
• (2) Axiom Supply Forged Torsion Leveling Keys
• (2) FOX Performance Series 2.0 IFP Front Shocks
• (2) FOX Performance Series 2.0 IFP Rear Shocks
• (4) Control Arm Sleeves
• (8) Control Arm Bushings
• (1) Complete Installation Hardware Kit

• Provides up to 2" of front ride height adjustment; works on stock, leveled, and lifted trucks.
• Compatible with most aftermarket suspension systems that use factory-style upper control arm mounting locations.
• Tires wider than 11.50" may contact the control arm with certain factory wheel configurations; additional wheel offset or spacers may be required.
• Apply 3 pumps of grease to each ball joint at install, then service every 5,000 to 7,000 miles. Do not over-grease.
