2017-2019 3.0L Powerstroke 4" Coilover BDS Lift Kit (BDS1533F)

Take your F150 up a notch in strength, control, and stance with the BDS 4" Coilover lift kit! This Performance Coilover system brings together the safety and capability of BDS's 4'' lift kits with the uncompromising performance of Fox factory series 2.5 remote reservoir Coilovers and rear Fox 2.0 IFP shocks for a true blend of on-road comfort and off-road performance.

Tire & Wheel Combinations:

  • 35" x 12.50" w/ 18 x 9 and 5"
  • 35" x 12.50" w/ 18 x 9 and 5 - 5.5"
  • 35 x 12.50 w/ 20 x 9 and 5-5.5"

Notes:

  • 18" wheels with 5-5.5" total backspacing should be test fit prior to mounting the tire to ensure proper clearance to BDS steering knuckle.
  • 18" or larger diameter wheels required. Stock 17" & 18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to 305/60-20 tires.
  • For a level to tail low appearance use #023416 with Kit#1502H or use #013429 with Kit#1503H. Block kits replace factory 1-1/4" block.
  • Models with a 2-piece rear driveshaft may require carrier bearing drop shim kit #122405
  • Kits will work on Diesel Models.
  • Requires frame bracket modification.
  • This kit is FMVSS No.126 Compliant The NHTSA's Federal Motor Vehicle Safety Standard (FMVSS) No.126 requires all new passenger vehicles to include Electronic Stability Control (ESC) systems that meet certain standards that can be tested through a comprehensive series of evasive maneuvers.

Installation:

Part Number: BDS1533F

Base Kit


Fox 2.5 Series Remote Reservoir Coilovers

When you want the best in performance and capability, go with FOX. These race-proven FOX 2.5 factory series remote reservoir coilovers up the ante allowing for next-level damper capability and control all neatly packaged. Designed for bolt-on installation, the engineers at BDS and FOX teamed up to offer this race-winning technology into a bolt-on, pre-tuned Coilover designed to perform and provide correct ride height right out of the box. From valving to spring rate, preload, and hose length these FOX coilovers are designed to take all the guesswork out of setting your vehicle up and are designed to be used with BDS lift systems. These coilovers use a large 2.5" body, 3" coil springs, 7/8" hardened carbon steel shaft, high flow piston, JM92 advanced racing shock oil, CNC machined 6061 T6 ends, and external remote reservoir to improve damper capability across any terrain.


Show more

2015-2022 3.0L Powerstroke Fox 2.5 Series RR Coilovers w/DSC (FOX88306134)-Front Coilover-BDS-FOX88306134-Dirty Diesel Customs

Fox 2.5 Series Remote Reservoir Coilovers w/ DSC

These race-proven FOX 2.5 remote reservoir coilovers up the ante allowing for next-level damper capability and control all neatly packaged. Designed for bolt-on installation, the engineers at BDS and FOX teamed up to offer this race-winning technology into a bolt-on, pre-tuned Coilover designed to perform and provide correct ride height right out of the box. From valving to spring rate, preload, and hose length these FOX coilovers are designed to take all the guesswork out of setting your vehicle up and are designed to be used with BDS lift systems. These have the added benefit of DSC (dual speed compression) adjustment for easy-to-use high-speed and low-speed compression tuning build into the end of the reservoir to dial in the performance for various terrains. These coilovers use a large 2.5" body, 3" coil springs, 7/8" hardened carbon steel shaft, high flow piston, JM92 advanced racing shock oil, CNC machined 6061 T6 ends, and DSC external remote reservoir to improve damper capability across any terrain.


Show more

Front Box Kit (1 of 2)

Front Box Kit

This Box Kit includes the following products:

  • Drive Shaft Spacer
  • Front & Rear Cross Member
  • Differential Support Bracket
  • 8 Eccentric Cams
  • 4 Eccentric Bolts
  • 4 M18-2.5 prevailing torque nuts
  • Strap w/stud
  • Bolt Pack - Drive Shaft Spacer

Show more

Front Box Kit (2 of 2)

Front Box Kit

This Box Kit includes the following products:

  • Driver & Passenger Differential Drop Bracket
  • Differential Support Bracket
  • Differential Skid Plate
  • Sway Bar Drop
  • 5/16” x 10” Hose
  • Bolt Pack - Differential Drop
  • Bolt Pack

Show more

Knuckle Box Kit (1 of 2)


Drivers Side Knuckle Box Kit


Show more

Knuckle Box Kit (2 of 2)


Passenger Side Knuckle Box Kit

View product page

Show more

Rear Lift


4" Rear Block Kit


Show more

Rear Shocks

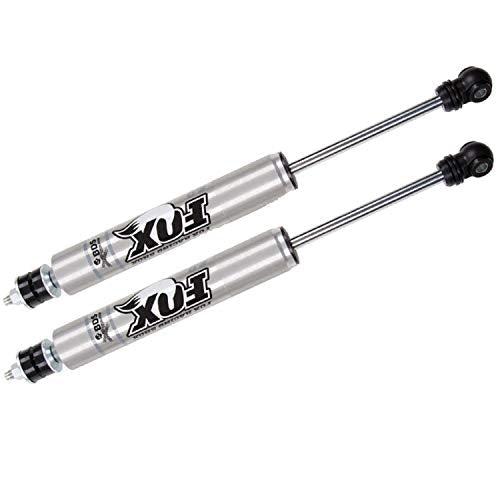

2004-2021 F-150 Powerstroke 4" Lift 2.0 Series Rear Shock (982-24-828)-Shocks-FOX-982-24-828-Dirty Diesel Customs

Rear Fox 2.0 Series Shocks (2x)

Improve ride quality and capability with the FOX 2.0 performance series IFP shocks. Specially designed for BDS lift systems, these FOX 2.0 aluminum body shocks offer improved cooling capacity and corrosion protection. These shocks use race-proven vehicle-specific valving along with an internal floating piston (IFP) monotube design to separate the shock oil from high-pressure nitrogen to eliminate aeration and maximize performance on/off-road.

Show more

Traction Bar Box Kit

Features:

  • Adjustable axle wrap control utilizing dual-stage resistance springs
  • Full-floating traction bar design will not bind throughout the full range of wheel travel and/or hinder suspension articulation.
  • Does not adversely affect ride quality when springs - particularly when resistance springs are adjusted to still be active.
  • Spring preload can be adjusted on the vehicle without disassembling the traction bar
  • Adjustments can be made for optimum performance over a wide range of uses/terrain. (On-Road - Unloaded, Towing/Hauling, Off-Road, Competition pulling)
  • Traction bar ends are greaseable and rebuildable

No Thanks

Universal RECOIL Traction Bar (BDS123409)-Traction Bars-BDS-BDS123409-Dirty Diesel Customs

Universal Recoil Traction Bar


Show more

Traction Bar Mounting Kit

Required if you have added the Traction Bar.

No Thanks

2004-2019 Powerstroke 0-6" Lift Recoil Traction Bar Mounting Kit F-150 4wd (BDS123419)-Traction Bar Mounting Kits-BDS-BDS123419-Dirty Diesel Customs

Recoil Traction Bar Mounting Kit

Mounting brackets are bolt-on, only requiring minor drilling for frame mount installation.

Note:

  • Does not fit regular cab models
  • Must measure axle - this kit fits trucks with 3-5/8" axle tube diameter

Show more

Upper Control Arms

These performance control arms are built from high strength 1.5" OD x .120-wall tubing, fully welded for strength and durability. They use an indexed ball joint cup to correct the ball joint positioning for use with leveling kits and most full IFS lift kits on the market. The frame mounting ends feature durometer-specific rubber bushings. At the other end, they use an indexed ball joint cup with premium Moog brand ball joints for smooth, quiet operation and superior durability to arms that feature uniballs, poly bushings, or heims. These control arms come finished in a durable black powder coat and include a billet aluminum machined ball joint dust cap as well as proper brake line attachment points to ensure a factory-like fit. The control arms come fully assembled for easy installation right out of the box.


No Thanks

2004-2019 F150 Powerstroke Upper Control Arm Box Kit (BDS123253)-Box Kit-BDS-BDS123253-Dirty Diesel Customs

Upper Control Arm Box Kit


Show more

Carrier Bearing Drop Kit

The kit comes with multiple shim plates for full adjustability from 1/8" to 1-1/2" of drop. Includes necessary hardware.

Note:

  • For all 3"+ Lift Kits.

No Thanks

Universal Carrier Bearing Drop Spacer (BDS122406)-Carrier Bearings-BDS-BDS122406-Dirty Diesel Customs

Carrier Bearing Drop Spacer


Show more

Summary
