2017-2019 Powerstroke 2.5" Coilover Radius Arm Lift Kit (BDS1543F)

Built to take full advantage of the factory suspension design, these 4" radius arm systems paired with Fox 2.5 Series Remote Reservoir Coilovers correct suspension, steering, and driveline geometry with room for 35" tires. The arms bolt into the factory mounting points and reposition the front axle to correct the caster angle. Only the best quality materials & relevant parts go into BDS Kits; which means less maintenance, less time looking, and less confusion for you. Everything you need to take your new Super Duty to the next level.

Tire & Wheel Combinations:

  • 35" x 12.50 w/ 17 x 9 and 5"
  • 35" x 12.50 w/ 18 x 9 and 5"
  • 35" x 12.50 w/ 20 x 9 and 5"

Notes:

  • Coilovers are designed for diesel applications only.
  • Mounting larger tires on factory wheels is not recommended due to potential brake line clearance issues.
  • Factory track bar mounting bolt requires 405 ft-lbs of torque, plan ahead on how to achieve this torque spec.

Installation:

Part Number: BDS1543F

Base Kit

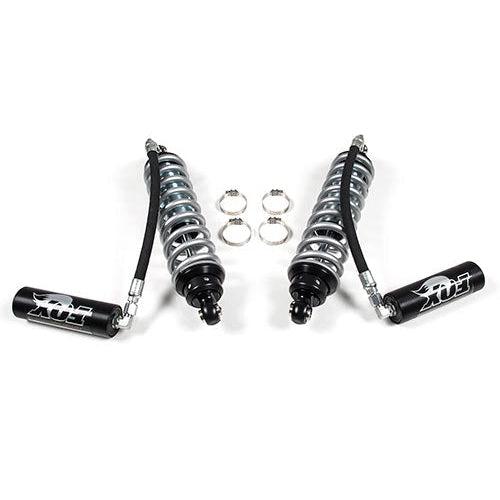

2005-2019 Powerstroke 2.5" Lift Front Fox 2.5 Remote Reservoir Coilover (Pair) (FOX88402148)-Shocks-BDS-FOX88402148-Dirty Diesel Customs

Front Fox 2.5 Remote Reservoir Coilovers

When you want the best in performance and capability, go with FOX. These race-proven FOX 2.5 factory series remote reservoir coilovers up the ante allowing for next-level damper capability and control all neatly packaged. Designed for bolt-on installation, the engineers at BDS and FOX teamed up to offer this race-winning technology into a bolt-on, pre-tuned Coilover designed to perform and provide correct ride height right out of the box. From valving to spring rate, preload, and hose length; designed to take all the guesswork out of setting your vehicle up and are designed to be used with BDS lift systems. These coilovers use a large 2.5" body, 3" coil springs, 7/8" hardened carbon steel shaft, high flow piston, JM92 advanced racing shock oil, CNC machined 6061 T6 ends, and external remote reservoir to improve damper capability across any terrain.

Show more

Coilover Mounting Kit


2017-2019 Powerstroke 2.5-8" Lift Coilover Mount Kit (BDS123613)-Shock Mount-BDS-BDS123613-Dirty Diesel Customs

Coilover Mounting Kit

This Box Kit includes the following products:

  • Lower Coilover Mount
  • Upper Coilover Mounting Bracket
  • Zip Ties
  • 2” Bump Stop (2.5” Kit)
  • 2 Bolt Packs

Show more

Front Box Kit


2-4" Lift Radius Arm Box Kit


Show more

Radius Arm Box Kit


2005-2022 Super Duty Radius Arm Kit (BDS123251)-Radius Arm-BDS-BDS123251-Dirty Diesel Customs

Radius Arm Upgrade Kit

This Box Kit includes the following products:

  • Driver & Passenger Side Replacement Radius Arm
  • Bag Kit - Replacement Radius Arm
  • Caster Cam Plates
  • M18-2.50 X 150mm Bolt
  • M18-2.50 Prevailing Torque Nut
  • Washer
  • Zip Tie - Push In

Show more

Rear Block Kit


4" Rear Block Kit


Show more

Front Shocks

Important: With the Coilovers & the Mounting kit provided, you have the option of keeping the factory location shocks or upgrading to Fox 2.0.

No Thanks

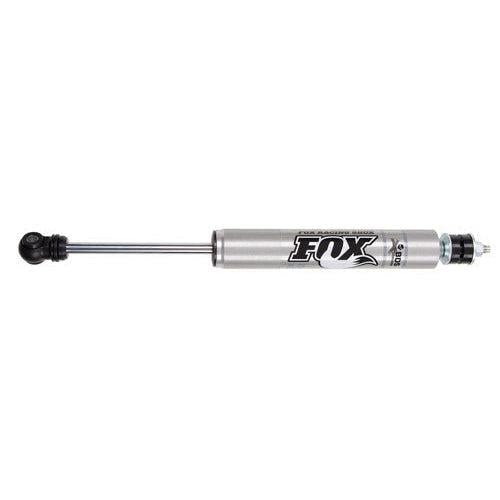

2017-2021 Powerstroke 2-3" Lift Front Fox 2.0 Series Shock Absorber (FOX98224720)-Shocks-BDS-FOX98224720-Dirty Diesel Customs

Front Fox 2.0 Series Shocks (2x)

Improve ride quality and capability with the FOX 2.0 performance series IFP shocks. Specially designed for BDS lift systems, these FOX 2.0 aluminum body shocks offer improved cooling capacity and corrosion protection. These shocks use race-proven vehicle-specific valving along with an internal floating piston (IFP) monotube design to separate the shock oil from high-pressure nitrogen to eliminate aeration and maximize performance on/off-road.

Show more

Rear Shocks


Steering Stabilizers


No Thanks

Steering Stabilizer Bracket Kit

Mandatory if you have selected a dual steering stabilizer.

No Thanks

Traction Bar Box Kit

Features:

  • Adjustable axle wrap control utilizing dual-stage resistance springs
  • Full-floating traction bar design will not bind throughout the full range of wheel travel and/or hinder suspension articulation.
  • Does not adversely affect ride quality when springs - particularly when resistance springs are adjusted to still be active.
  • Spring preload can be adjusted on the vehicle without disassembling the traction bar
  • Adjustments can be made for optimum performance over a wide range of uses/terrain. (On-Road - Unloaded, Towing/Hauling, Off-Road, Competition pulling)
  • Traction bar ends are greaseable and rebuildable

No Thanks

Universal RECOIL Traction Bar (BDS123409)-Traction Bars-BDS-BDS123409-Dirty Diesel Customs

Universal Recoil Traction Bar


Show more

Traction Bar Mounting Kit

Required if you have added the Traction Bar.

No Thanks

2017-2023 Powerstroke 0-6" Lift Recoil Traction Bar 3.5" / 4" axle Mounting Kit (BDS123416)-Traction Bar Mounting Kits-BDS-BDS123416-Dirty Diesel Customs

RECOIL Traction Bar Mounting Kit (3.5"- 4" Axle Diameter)

Mounting brackets are bolt-on, only requiring minor drilling for frame mount installation.

Note:

  • Does not fit regular cab models

Show more

Summary
