2017-2019 Powerstroke 6" 4-Link Coilover Lift Kit - 2 Leaf (BDS1527F)

Take your new Super Duty to the next level with the tried & true BDS 4-link conversion system. A big upgrade for your truck, these high-strength 4-link conversions offer improved handling, stability, strength, & caster control during wheel travel. In the rear of these 6" systems, BDS offers multiple lift options for both the OE 2-leaf main spring pack & OE 3-leaf main spring pack equipped trucks. With Fox 2.0 Series shocks to compliment the front setup for all-around impressive performance.

Tire & Wheel Combinations:

  • 38 x 13.50 w/ 17 x 9 and 4.5" - 5"
  • 38 x 13.50 w/ 17 x 10 and 5"
  • 38 x 13.50 w/ 20 x 10 and 5"

Notes:

  • Diesel applications Only
  • If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)
  • 38 x 13.50 tires may require minor trimming.
  • Some models may be factory equipped with a 2-leaf main rear leaf spring pack and others a 3-leaf main. Be sure to order the correct option when customizing your kit.
  • The transfer case indexing ring will not fit 6.2L vehicles equipped with the 6R100 transmission.
  • If your truck is equipped with a factory rear sway bar add: 123005
  • The indexing ring has not been designed to work on manual-shift transfer case models. Modification to the shift cable mount will be required.
  • For trucks equipped with 2-Leaf main rear leaf pack only. Click here to view an example.

Installation:

Part Number: BDS1527F

Base Kit


2005-2019 Powerstroke 6" Lift Front Fox 2.5 Remote Reservoir Coilover (Pair) (FOX88402127)-Shocks-BDS-FOX88402127-Dirty Diesel Customs

Front Fox 2.5 Series Remote Reservoir Coilovers

When you want the best in performance and capability, go with FOX. These race-proven FOX 2.5 factory series remote reservoir coilovers up the ante allowing for next-level damper capability and control all neatly packaged. Designed for bolt-on installation, the engineers at BDS and FOX teamed up to offer this race-winning technology into a bolt-on, pre-tuned Coilover designed to perform and provide correct ride height right out of the box. From valving to spring rate, preload, and hose length these FOX coilovers are designed to take all the guesswork out of setting your vehicle up and are designed to be used with BDS lift systems. These coilovers use a large 2.5" body, 3" coil springs, 7/8" hardened carbon steel shaft, high flow piston, JM92 advanced racing shock oil, CNC machined 6061 T6 ends, and external remote reservoir to improve damper capability across any terrain.

Show more

2005-2020 Powerstroke F250/F350 6" Lift 2.5 Series Front Shock (884-06-127)-Shocks-FOX-884-06-127-Dirty Diesel Customs

Front Fox 2.5 Series Remote Reservoir Coilovers w/ DSC

These race-proven FOX 2.5 remote reservoir coilovers up the ante allowing for next-level damper capability and control all neatly packaged. Designed for bolt-on installation, the engineers at BDS and FOX teamed up to offer this race-winning technology into a bolt-on, pre-tuned Coilover designed to perform and provide correct ride height right out of the box. From valving to spring rate, preload, and hose length these FOX coilovers are designed to take all the guesswork out of setting your vehicle up and are designed to be used with BDS lift systems. These have the added benefit of DSC (dual speed compression) adjustment for easy-to-use high-speed and low-speed compression tuning build into the end of the reservoir to dial in the performance for various terrains. These coilovers use a large 2.5" body, 3" coil springs, 7/8" hardened carbon steel shaft, high flow piston, JM92 advanced racing shock oil, CNC machined 6061 T6 ends, and DSC external remote reservoir to improve damper capability across any terrain.

View product page

Show more

Coilover Mounting Kit


2017-2019 Powerstroke 2.5-8" Lift Coilover Mount Kit (BDS123613)-Shock Mount-BDS-BDS123613-Dirty Diesel Customs

Coilover Mounting Kit

This Box Kit includes the following products:

  • Lower Coilover Mount
  • Upper Coilover Mounting Bracket
  • Zip Ties
  • 2” Bump Stop (2.5” Kit)
  • 2 Bolt Packs

Show more

Rear Block Kit


6" Rear Block Kit

This Box Kit includes the following products:

  • Driver & Passenger Side 5" Tapered Block
  • 5/8 x 3-1/8 x 19 Semi-Round U-bolts
  • 1" x 3" Bolt-on Block
  • Bag Kit
  • 7/16" x 6" Center Pin
  • 5/8" Washers
  • 5/8" High Nuts
  • E-Brake Relocation Bracket
  • E-Brake Clamp Bracket
  • Bolt Pack -E-Brake Brackets

Show more

Transfer Case Indexing Kit


SD Transfer-Case Indexing Kit- DSL


Show more

Rear Lift Option

Some F250/350 factory options increase the main leaf pack count from 2 to 3 leafs (this is for top overload options only). Be sure to verify which factory leaf spring configuration your vehicle has and choose the appropriate option below.

If you have a factory 3-Leaf Main, you can skip this section.

No Thanks

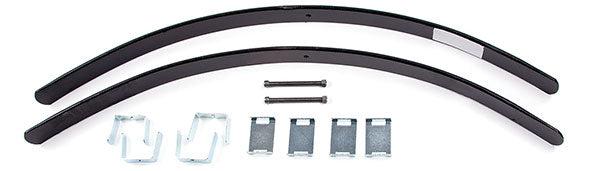

2017-2019 Powerstroke Rear 'Add-A-Leaf' (BDS013219)-Add-A-Leaf-BDS-BDS013219-Dirty Diesel Customs

Rear 'Add-A-Leaf'

Does the rear of your truck need a little extra boost? The BDS Add-a-Leaf kits are the perfect answer. This kit comes with complete instructions, new center pins, and new leaf alignment clamps. Order one kit per axle. Add-A-Leaf kits are sold as pairs except for dual add-a-leaf kits which are sold in sets of four.


U-bolts are not included in add-a-leaf purchases but are listed here for reference. The u-bolts listed may be longer than necessary for add-a-leaf installation. U-bolts sizes were based on maximum OE leaf packs which can vary widely due to towing packages, GVWR variations, etc.

Show more

2020-2021 Powerstroke 4" Lift Rear Leaf Spring (BDS003639)-Leaf Springs-BDS-BDS003639-Dirty Diesel Customs

Rear Leaf Spring (2x)

BDS Glide-Ride leaf springs will reduce axle wrap and create a more controlled and stable feel when towing. The actual leaf spring may not be exactly as shown in the photo. Includes OE-style bushings installed.

Note:

  • Select this option if you want full leaf spring replacements

Show more

Leaf Spring Box Kit

Only select this box kit if you have added full leaf spring replacements.

No Thanks

Rear Leaf Spring Box Kit

This Box Kit includes the following products:

  • Driver & Passenger Side 5" Tapered Block
  • 4 5/8 x 3-1/8 x 19 Semi-Round U-bolts
  • Bag Kit
  • 5/8" Washers
  • 5/8" High Nuts

Show more

Front Shocks

Important: With the Coilovers & the Mounting kit provided, you have the option of keeping the factory location shocks or upgrading to Fox 2.0.

No Thanks

Rear Shocks


Steering Stabilizers


Steering Stabilizer Bracket Kit


Track Bar

Features:

  • Standard turn-buckle length adjustment as featured on other BDS truck track bars
  • Works with 0-4" of lift using the stock track bar bracket and 4+"-8" with replacement extended track bar bracket
  • 1-3/8" solid steel stock with CNC machined threads
  • Greaseable, high-durometer polyurethane bushings at the frame end
  • Heavy-duty, greaseable replacement ball joint pre-installed at the axle end

No Thanks

Traction Bar Box Kit

Features:

  • Adjustable axle wrap control utilizing dual-stage resistance springs
  • Full-floating traction bar design will not bind throughout the full range of wheel travel and/or hinder suspension articulation.
  • Does not adversely affect ride quality when springs - particularly when resistance springs are adjusted to still be active.
  • Spring preload can be adjusted on the vehicle without disassembling the traction bar
  • Adjustments can be made for optimum performance over a wide range of uses/terrain. (On-Road - Unloaded, Towing/Hauling, Off-Road, Competition pulling
  • Traction bar ends are greaseable and rebuildable

No Thanks

Universal RECOIL Traction Bar (BDS123409)-Traction Bars-BDS-BDS123409-Dirty Diesel Customs

Universal Recoil Traction Bar


Show more

Traction Bar Mounting Kit

Required if you have added the Traction Bar.

No Thanks

2017-2023 Powerstroke 0-6" Lift Recoil Traction Bar 3.5" / 4" axle Mounting Kit (BDS123416)-Traction Bar Mounting Kits-BDS-BDS123416-Dirty Diesel Customs

RECOIL Traction Bar Mounting Kit (3.5"- 4" Axle Diameter)

Mounting brackets are bolt-on, only requiring minor drilling for frame mount installation.

Note:

  • Does not fit regular cab models

Show more

Carrier Bearing Drop Kit

The kit comes with multiple shim plates for full adjustability from 1/8" to 1-1/2" of drop. Includes necessary hardware.

Note:

  • For all 3"+ Lift Kits.

No Thanks

Universal Carrier Bearing Drop Spacer (BDS122406)-Carrier Bearings-BDS-BDS122406-Dirty Diesel Customs

Carrier Bearing Drop Spacer


Show more

Driveshaft Spacer Kit

IMPORTANT: Will ONLY fit trucks with a 4 bolt flange style rear driveshaft mount on the axle.

When lifting the 2011-2020 model Ford Super Duty 6" or more it may be necessary to extend the rear driveshaft to ensure adequate spline engagement at full droop of the suspension. While one option is to have a custom extended length driveshaft built, BDS Suspension is now offering a more affordable solution with their new high strength rear driveshaft spacer. Built from T6061 billet aluminum and CNC machined for a precision fit, this rear driveshaft spacer mounts between the driveshaft and rear axle providing the necessary driveshaft spline engagement. Longer hardware and thread locker are also supplied complete the simple install.

No Thanks

U-Bolts

The following kit ID's 1567H, 1567F, 1551H, 1551F - If installed on a truck with a top mount overload spring, and the overload spacer block is taller than 1-1/8" then these U-Bolts (Qty:4) are required.

Note:

  • All u-bolts come with high nuts and washers.

No Thanks

Universal Radius 3-1/8"X19" U-Bolt (UBT4027)-U-Bolts-BDS-UBT4027-Dirty Diesel Customs

Universal U-Bolt (4x)


Show more
