2019-2022 Ram 1500 2" Performance Coilover Lift Kit (BDS1664F)

BDS Suspension now has  2" Coilover systems for the RAM 1500. Designed to be so much more than just a "leveling kit", these new Coilover systems take advantage of the factory suspension geometry without overextending operating angles and offer next-level performance in a smaller lift package.

Tire & Wheel Combinations:

  • Stock Fitment
  • 295/65r w/ 20x9 and 5"
  • 33x12.50 w/ 20x9 and 4.5"

Notes:

  • Vehicles equipped with "Offroad or Rebel Package" will not achieve a full 2" of lift, net ride height change will be around 1" above stock.
  • Will not fit vehicle equipped with factory Air Ride.
  • 33x12.50 tires cannot be installed on factory wheels due to a clearance issue with the UCA. Aftermarket wheels with 33x12.50 tires or stock wheels with narrower tires are required.
  • Follow recommended tire/wheel specs.
  • Will NOT fit 2019 RAM 1500 Classic models, Refer to the 2018 kit listings.

Installation:

Part Number: BDS1664F

Base Kit


Front Fox 2.5 Series Remote Reservoir Coilovers

These race-proven FOX 2.5 factory series remote reservoir coilovers up the ante allowing for next-level damper capability and control all neatly packaged. Designed for bolt-on installation, the engineers at BDS and FOX teamed up to offer this race-winning technology into a bolt-on, pre-tuned Coilover designed to perform and provide correct ride height right out of the box. From valving to spring rate, preload, and hose length these FOX coilovers are designed to take all the guesswork out of setting your vehicle up and are designed to be used with BDS lift systems. These coilovers use a large 2.5" body, 3" coil springs, 7/8" hardened carbon steel shaft, high flow piston, JM92 advanced racing shock oil, CNC machined 6061 T6 ends, and external remote reservoir to improve damper capability across any terrain.

Show more

2019-2023 Ram Ecodiesel Coilovers w/ DSC Adjustment (FOX88406242)-Front Coilover-BDS-FOX88406242-Dirty Diesel Customs

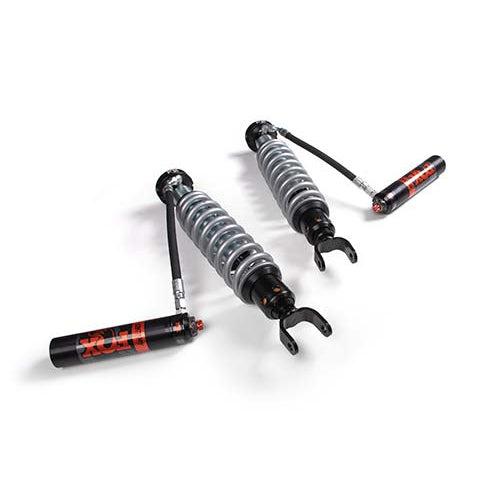

Front Fox 2.5 Series Remote Reservoir Coilovers w/ DSC Adjustment

These race-proven FOX 2.5 remote reservoir coilovers up the ante allowing for next-level damper capability and control all neatly packaged. Designed for bolt-on installation, the engineers at BDS and FOX teamed up to offer this race-winning technology into a bolt-on, pre-tuned Coilover designed to perform and provide correct ride height right out of the box. From valving to spring rate, preload, and hose length these FOX coilovers are designed to take all the guesswork out of setting your vehicle up and are designed to be used with BDS lift systems. These have the added benefit of DSC (dual speed compression) adjustment for easy-to-use high-speed and low-speed compression tuning build into the end of the reservoir to dial in the performance for various terrains. These coilovers use a large 2.5" body, 3" coil springs, 7/8" hardened carbon steel shaft, high flow piston, JM92 advanced racing shock oil, CNC machined 6061 T6 ends, and DSC external remote reservoir to improve damper capability across any terrain.

Show more

Control Arms

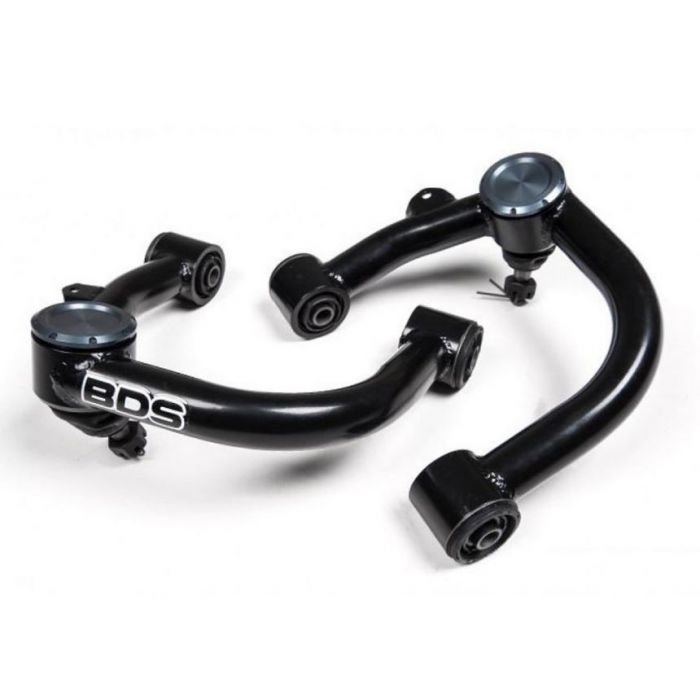

2006-2022 Ecodiesel Ram 1500 UCA Kit - 2-3" Lift Height (BDS122253)-Upper Control Arms-BDS-BDS122253-Dirty Diesel Customs

Upper Control Arm Kit

View product page

Show more

Rear Shocks


Summary
