2020-2021 Powerstroke 4" 4-Link Coilover Suspension Lift - Fox (BDS1567F)

Take your new Super Duty to the next level with the tried and true BDS 4-link conversion system. A big upgrade from the factory stamped steel radius arms, these high-strength 4-link conversions offer improved handling, stability, strength, and caster control during wheel travel. Full-length 4" ProRide diesel-specific coil springs are used for the additional ride height paired with Fox 2.0 Series shocks for a smooth ride on any terrain and all-around impressive performance.

Tire & Wheel Combinations:

  • 37 x 12.50 w/ 17 x 9 and 4.5" - 5"
  • 37 x 12.50 w/ 18 x 9 and 4.5" - 5"
  • 37 x 12.50 w/ 20 x 9 and 4.5" - 5"

Notes:

  • If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)
  • 37 x 12.50 tires may require minor trimming.
  • Some models may be factory equipped with a 2-leaf main rear leaf spring pack and others a 3-leaf main. Be sure to order the correct option when customizing your kit.
  • If your truck is equipped with a factory rear sway bar add: 123005
  • Due to taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models.
  • If installed on a truck with a top-mounted overload spring, with an overload spacer block taller than 1-1/8" UBT4027 (Qty: 4) are required)

Installation:

Part Number: BDS1567F

Base Kit


2005-2019 Powerstroke 4" Lift Front Fox 2.5 Remote Reservoir Coilovers (Pair) (FOX88402149)-Shocks-BDS-FOX88402149-Dirty Diesel Customs

Front Fox 2.5 Series Remote Reservoir Coilovers

When you want the best in performance and capability, go with FOX. These race-proven FOX 2.5 factory series remote reservoir coilovers up the ante allowing for next-level damper capability and control all neatly packaged. Designed for bolt-on installation, the engineers at BDS and FOX teamed up to offer this race-winning technology into a bolt-on, pre-tuned Coilover designed to perform and provide correct ride height right out of the box. From valving to spring rate, preload, and hose length these FOX coilovers are designed to take all the guesswork out of setting your vehicle up and are designed to be used with BDS lift systems. These coilovers use a large 2.5" body, 3" coil springs, 7/8" hardened carbon steel shaft, high flow piston, JM92 advanced racing shock oil, CNC machined 6061 T6 ends, and external remote reservoir improve damper capability across any terrain.

Show more

2005-2020 Ford F250/F350 Front Coilover, 2.5 Series, R/R 4" Lift, DSC (FOX88406149)-Coilovers-BDS-FOX88406149-Dirty Diesel Customs

Front Fox 2.5 Series Coilovers w/ DSC Adjustment

These race-proven FOX 2.5 remote reservoir coilovers up the ante allowing for next-level damper capability and control all neatly packaged. Designed for bolt-on installation, the engineers at BDS and FOX teamed up to offer this race-winning technology into a bolt-on, pre-tuned Coilover designed to perform and provide correct ride height right out of the box. From valving to spring rate, preload, and hose length these FOX coilovers are designed to take all the guesswork out of setting your vehicle up and are designed to be used with BDS lift systems. These have the added benefit of DSC (dual speed compression) adjustment for easy-to-use high-speed and low-speed compression tuning build into the end of the reservoir to dial in the performance for various terrains. These coilovers use a large 2.5" body, 3" coil springs, 7/8" hardened carbon steel shaft, high flow piston, JM92 advanced racing shock oil, CNC machined 6061 T6 ends, and DSC external remote reservoir improve damper capability across any terrain.

Show more

Coilover Mounting Kit


2017-2019 Powerstroke 2.5-8" Lift Coilover Mount Kit (BDS123613)-Shock Mount-BDS-BDS123613-Dirty Diesel Customs

Coilover Mounting Kit


Show more

Front Shocks

Important: With the Coilovers & the Mounting kit provided, you have the option of keeping the factory location shocks or upgrading to Fox 2.0.

No Thanks

Rear Shocks


Rear Lift

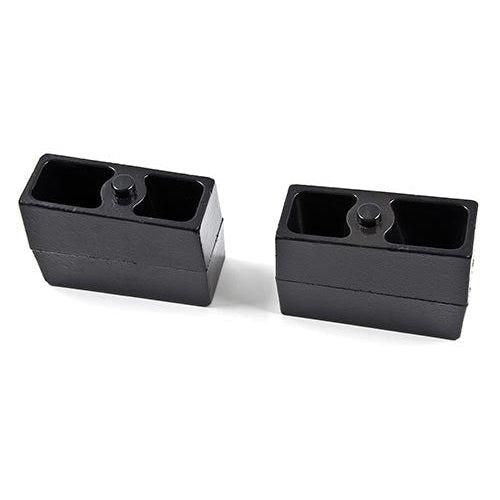

2020-2022 Powerstroke 4.5" Rear Block Kit (BDS013459)-Lift Blocks-BDS-BDS013459-Dirty Diesel Customs

4.5" Rear Block Kit


Show more

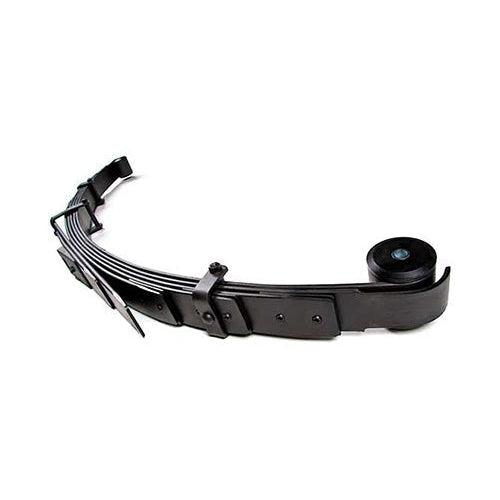

2020-2021 Powerstroke 4" Lift Rear Leaf Spring (BDS003639)-Leaf Springs-BDS-BDS003639-Dirty Diesel Customs

4" Rear Leaf Springs (2x)

Show more

Leaf Spring Box Kit


2017-2020 Super Duty 4" Rear Leaf Spring Box Kit (BDS013438)-Leaf Springs-BDS-BDS013438-Dirty Diesel Customs

Rear Leaf Spring Box Kit


Show more

Steering Stabilizers


Dual Steering Stabilizer Bracket Kit


No Thanks

Track Bar

Features:

  • Standard turn-buckle length adjustment as featured on other BDS truck track bars
  • Works with 0-4" of lift using the stock track bar bracket and 4+"-8" with replacement extended track bar bracket
  • 1-3/8" solid steel stock with CNC machined threads
  • Greaseable, high-durometer polyurethane bushings at the frame end
  • Heavy-duty, greaseable replacement ball joint pre-installed at the axle end

No Thanks

Recoil Traction Bar Box Kit

Features:

  • Adjustable axle wrap control utilizing dual-stage resistance springs
  • A full floating traction bar design will not bind throughout the full range of wheel travel and/or hinder suspension articulation.
  • Does not adversely affect ride quality when springs - particularly when resistance springs are adjusted to still be active.
  • Spring preload can be adjusted on the vehicle without disassembling the traction bar
  • Adjustments can be made for optimum performance over a wide range of uses/terrain. (On-Road - Unloaded, Towing/Hauling, Off-Road, Competition pulling)
  • Traction bar ends are greaseable and rebuildable

No Thanks

Universal RECOIL Traction Bar (BDS123409)-Traction Bars-BDS-BDS123409-Dirty Diesel Customs

Universal Recoil Traction Bar


Show more

Recoil Traction Bar Mounting Kit


No Thanks

2017-2023 Powerstroke 0-6" Lift Recoil Traction Bar 3.5" / 4" axle Mounting Kit (BDS123416)-Traction Bar Mounting Kits-BDS-BDS123416-Dirty Diesel Customs

RECOIL Traction Bar Mounting Kit (3.5"- 4" Axle Diameter)

Mounting brackets are bolt-on, only requiring minor drilling for frame mount installation.

Note:

  • Does not fit regular cab models

Show more

Summary
