2020-2021 Powerstroke 4-Link 6" Coilover Lift Kit (BDS1571F)

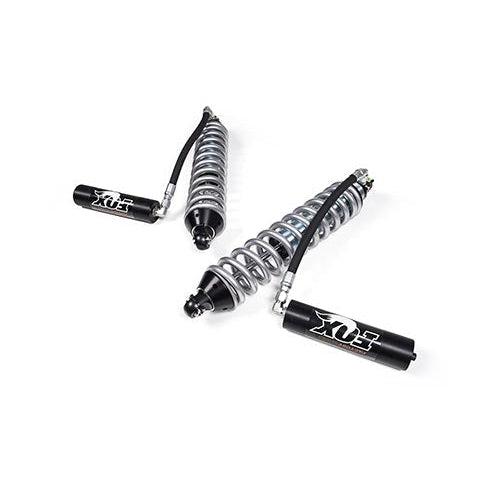

When you want the best in performance and capability, go with FOX. These race-proven FOX 2.5 factory series remote reservoir coilovers up the ante allowing for next-level damper capability and control all neatly packaged. Designed for bolt-on installation, the engineers at BDS and FOX teamed up to offer this race-winning technology into a bolt-on, pre-tuned Coilover designed to perform and provide correct ride height right out of the box. From valving to spring rate, preload, and hose length these FOX coilovers are designed to take all the guesswork out of setting your vehicle up and are designed to be used with BDS lift systems. These coilovers use a large 2.5" body, 3" coil springs, 7/8" hardened carbon steel shaft, high flow piston, JM92 advanced racing shock oil, CNC machined 6061 T6 ends, and external remote reservoir to improve damper capability across any terrain.

These race-proven FOX 2.5 remote reservoir coilovers up the ante allowing for next-level damper capability and control all neatly packaged. Designed for bolt-on installation, the engineers at BDS and FOX teamed up to offer this race-winning technology into a bolt-on, pre-tuned Coilover designed to perform and provide correct ride height right out of the box. From valving to spring rate, preload, and hose length these FOX coilovers are designed to take all the guesswork out of setting your vehicle up and are designed to be used with BDS lift systems. These have the added benefit of DSC (dual speed compression) adjustment for easy-to-use high-speed and low-speed compression tuning build into the end of the reservoir to dial in the performance for various terrains. These coilovers use a large 2.5" body, 3" coil springs, 7/8" hardened carbon steel shaft, high flow piston, JM92 advanced racing shock oil, CNC machined 6061 T6 ends, and DSC external remote reservoir to improve damper capability across any terrain.

This Box Kit includes the following products:

• Upper & Lower 4-Link Arms
• Bolt Pack - 4-link Arm Hardware
• Bag Kit - Upper & Lower Arms
• 4 90 degree grease fittings
• 4 1.0 x 0.120 x 3.25 DOM Sleeve
• 8 Bushings
• Cam Lock Plate

This Box Kit includes the following products:

• Pitman Arm
• Front Bump Stop Extension
• Track Bar Bracket
• Driver & Passenger Side Sway Bar Drop
• Driver & Passenger Side 4-Link Bracket
• BDS Badge
• Rivet Bolt Packs
• Track Bar Cam Washer
•  4-Link Bracket Shim
• Driver & Passenger Side Front Brake Line Bracket - (4" & 6" Box Kit)
• U-Hardline Extension (6" Box Kit)
• 4-Link Bracket Nut Tab
• M8-1.25 x 130mm Bolt
• 5/16" SAE Flat Washers
• Zip Ties
• Drive Shaft Boot Clamp
• 1/8" x 1-1/4" Cotter Pin
• Bolt Pack - 4-Link Bracket
• Bolt Pack - ABS Wire Clamp (4" Box Kit)
•  Bolt Pack - Sway Bar Drop Bracket

This Box Kit includes the following products:

• Driver & Passenger Side 6.5" Tapered Block
• 4 5/8 x 3-1/8 x 19 Semi-Round U-Bolts
• E-Brake Relocation Bracket
• E-Brake Clamp Bracket
• 5/8" Washers
•  5/8" High Nut
• E-Brake Relocation Bolt Pack


BDS Glide-Ride leaf springs will reduce axle wrap and create a more controlled and stable feel when towing. These springs are covered by the BDS No Fine Print Warranty. The actual leaf spring may not be exactly as shown in the photo. Includes OE-style bushings installed.

Mounting brackets are bolt-on, only requiring minor drilling for frame mount installation.

Note:

• Does not fit regular cab models
