2020-2021 Powerstroke DRW F350 4" Radius Arm Suspension Lift System-C/O (BDS1563F)

Built to take full advantage of the factory suspension design, these 4" radius arm systems correct suspension, steering and driveline geometry with room for 37" tires. At the heart of this system is a pair of heavy-duty radius arms built to withstand whatever abuse you can throw at them. Using a high clearance design for extra ground clearance and are formed inward to allow for additional clearance of oversized tires. The additional 4" of lift comes from a pair of specially tuned FOX 2.5 factory series remote reservoir coilovers. They are an easy install using the supplied frame and axle mounting brackets, paired with FOX 2.0 performance gas shocks offer a smooth ride and improved control over rough terrain.

Tire & Wheel Combinations:

  • 37x12.50 w/ 17x9 and 4.5"-5"
  • 37x12.50 w/ 18x9 and 4.5"-5"
  • 37x12.50 w/ 20x9 and 4.5"-5"

Notes:

  • Removal of the factory leaf spring block required.
  • Net rear lift will vary depending on the height of the factory block but will result in a level stance.
  • If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)
  • Front exhaust modification may be required to clear the front driveshaft
  • Torque wrench capable of 405 ft-lbs required.
  • 37 x 12.50 tires may require minor trimming.

Installation:

Part Number: BDS1563F

Base Kit

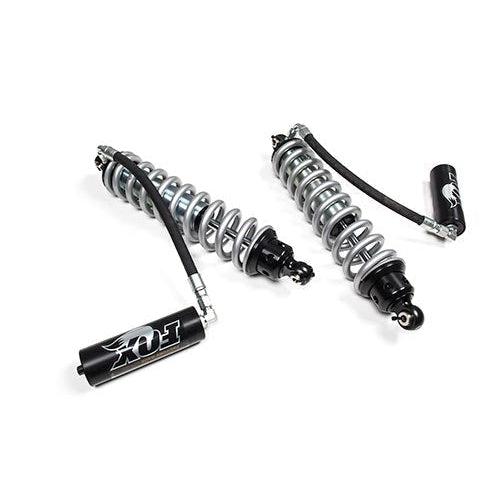

2005-2019 Powerstroke 4" Lift Front Fox 2.5 Remote Reservoir Coilovers (Pair) (FOX88402149)-Shocks-BDS-FOX88402149-Dirty Diesel Customs

Front Fox 2.5 Series Remote Reservoir Coilovers

When you want the best in performance and capability, go with FOX. These race-proven FOX 2.5 factory series remote reservoir coilovers up the ante allowing for next-level damper capability and control all neatly packaged. Designed for bolt-on installation, the engineers at BDS and FOX teamed up to offer this race-winning technology into a bolt-on, pre-tuned coilover designed to perform and provide correct ride height right out of the box. From valving to spring rate, preload, and hose length these FOX coilovers are designed to take all the guesswork out of setting your vehicle up and are designed to be used with BDS lift systems. These coilovers use a large 2.5" body, 3" coil springs, 7/8" hardened carbon steel shaft, high flow piston, JM92 advanced racing shock oil, CNC machined 6061 T6 ends, and external remote reservoir improve damper capability across any terrain. Up our vehicle's performance with FOX 2.5 R/R Coilovers.

Show more

2005-2020 Ford F250/F350 Front Coilover, 2.5 Series, R/R 4" Lift, DSC (FOX88406149)-Coilovers-BDS-FOX88406149-Dirty Diesel Customs

Fox 2.5 Series Coilover w/ DSC Adjuster

These race-proven FOX 2.5 remote reservoir coilovers up the ante allowing for next-level damper capability and control all neatly packaged. Designed for bolt-on installation, the engineers at BDS and FOX teamed up to offer this race-winning technology into a bolt-on, pre-tuned coilover designed to perform and provide correct ride height right out of the box. From valving to spring rate, preload, and hose length these FOX coilovers are designed to take all the guesswork out of setting your vehicle up and are designed to be used with BDS lift systems. These have the added benefit of DSC (dual speed compression) adjustment for easy-to-use high-speed and low-speed compression tuning built into the end of the reservoir to dial in the performance for various terrains. These coilovers use a large 2.5" body, 3" coil springs, 7/8" hardened carbon steel shaft, high flow piston, JM92 advanced racing shock oil, CNC machined 6061 T6 ends, and DSC external remote reservoir improve damper capability across any terrain.

Show more

Coilover Mounting Kit


2017-2019 Powerstroke 2.5-8" Lift Coilover Mount Kit (BDS123613)-Shock Mount-BDS-BDS123613-Dirty Diesel Customs

Coilover Mounting Kit


Show more

Front Box Kit

4" Front Box Kit

This Box Kit includes the following:

  • Pitman Arm
  • Driver & Passenger Side Brakeline Bracket
  • Front Bump Stop Extension
  • Driver & Passenger Side Sway Bar Drop
  • Bag Kit
  • Track Bar Cam Washer
  • 1/8" x 1-1/8" cotter pin
  • Zip Ties
  • Bolt Pack - Sway Bar Drop Bracket
  • Bolt Pack - Bump Stops

Show more

Rear Box Kit


3" Rear Box Kit

This Box Kit includes the following:

  • 2 3" Rear Block
  • 4  5/8 x 3-1/8 x 19 Semi-Round U-bolt
  • 3" Bump Stop Spacer
  • 2 Bolt Packs
  • Bag Kit
  • 5/8 Washers
  • 5/8 High Nuts
  • E-Brake Relocation Bracket
  •  E-Brake Relocation Clamp Bracket
  • Logo Plate
  • Rivets

Show more

Radius Arm Box Kit

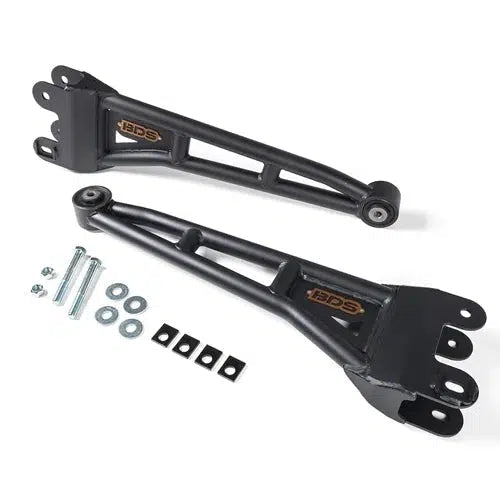

2005-2022 Super Duty Radius Arm Kit (BDS123251)-Radius Arm-BDS-BDS123251-Dirty Diesel Customs

Radius Arm Kit

This Box Kit included the following:

  • Driver & Passenger Side Radius Arm Assembly
  • Bag Kit
  • Radius Arm Cam Plates
  • 18mm x 150mm bolts
  • 18mm Prevailing Torque Nuts
  • 3/4" SAE Washers

Show more

Front Shocks

Important: With the Coilovers & the Mounting kit provided, you have the option of keeping the factory location shocks or upgrading to Fox 2.0.

No Thanks

Rear Shocks


Steering Stabilizers


Dual Steering Stabilizer Bracket Kit


No Thanks

Track Bar

Featured:

  • Standard turn-buckle length adjustment as featured on other BDS truck track bars
  • Works with 0-4" of lift using the stock track bar bracket and 4+"-8" with replacement extended track bar bracket
  • 1-3/8" solid steel stock with CNC machined threads
  • Greaseable, high-durometer polyurethane bushings at the frame end
  • Heavy-duty, greaseable replacement ball joint pre-installed at the axle end

No Thanks

Recoil Traction Bar Box Kit

Features:

  • Adjustable axle wrap control utilizing dual-stage resistance springs
  • Full-floating traction bar design will not bind throughout the full range of wheel travel and/or hinder suspension articulation.
  • Does not adversely affect ride quality when springs - particularly when resistance springs are adjusted to still be active.
  • Spring preload can be adjusted on the vehicle without disassembling the traction bar
  • Adjustments can be made for optimum performance over a wide range of uses/terrain. (On-Road - Unloaded, Towing/Hauling, Off-Road, Competition pulling)
  • Traction bar ends are greaseable and rebuildable

No Thanks

Universal RECOIL Traction Bar (BDS123409)-Traction Bars-BDS-BDS123409-Dirty Diesel Customs

Universal Recoil Traction Bar Box Kit


Show more

Recoil Traction Bar Mounting Kit

Required if you have added the Traction Bar.

No Thanks

2017-2023 Powerstroke 0-6" Lift Recoil Traction Bar 3.5" / 4" axle Mounting Kit (BDS123416)-Traction Bar Mounting Kits-BDS-BDS123416-Dirty Diesel Customs

RECOIL Traction Bar Mounting Kit (3.5"- 4" Axle Diameter)

Mounting brackets are bolt-on, only requiring minor drilling for frame mount installation.

Show more

Driveshaft Alignment Kit

These shims are designed to improve rear driveline angle on trucks equipped with a 2-piece rear driveshaft to eliminate any potential driveline vibrations. Not needed on trucks equipped with a 1-piece rear driveshaft.

No Thanks

2020-2022 Powerstroke Driveshaft Alignment Kit (BDS123402)-Shims-BDS-BDS123402-Dirty Diesel Customs

Driveshaft Alignment Kit


Show more

U-Bolts

The following kit ID's 1567H, 1567F, 1551H, 1551F - If installed on a truck with a top mount overload spring, and the overload spacer block is taller than 1-1/8" then UBT4027 (Qty:4) is required.

No Thanks

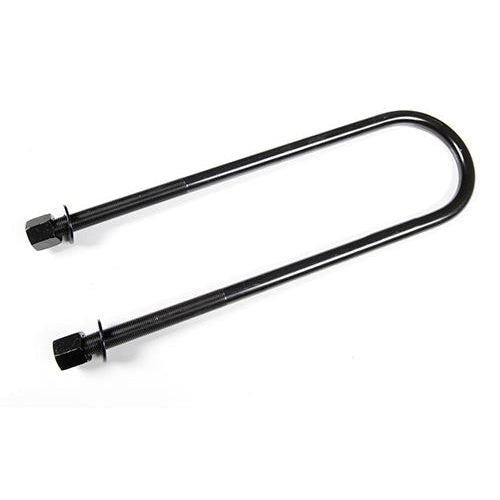

Universal Radius 3-1/8"X19" U-Bolt (UBT4027)-U-Bolts-BDS-UBT4027-Dirty Diesel Customs

U-Bolts - (3-1/8"X19") (4x)


Show more
