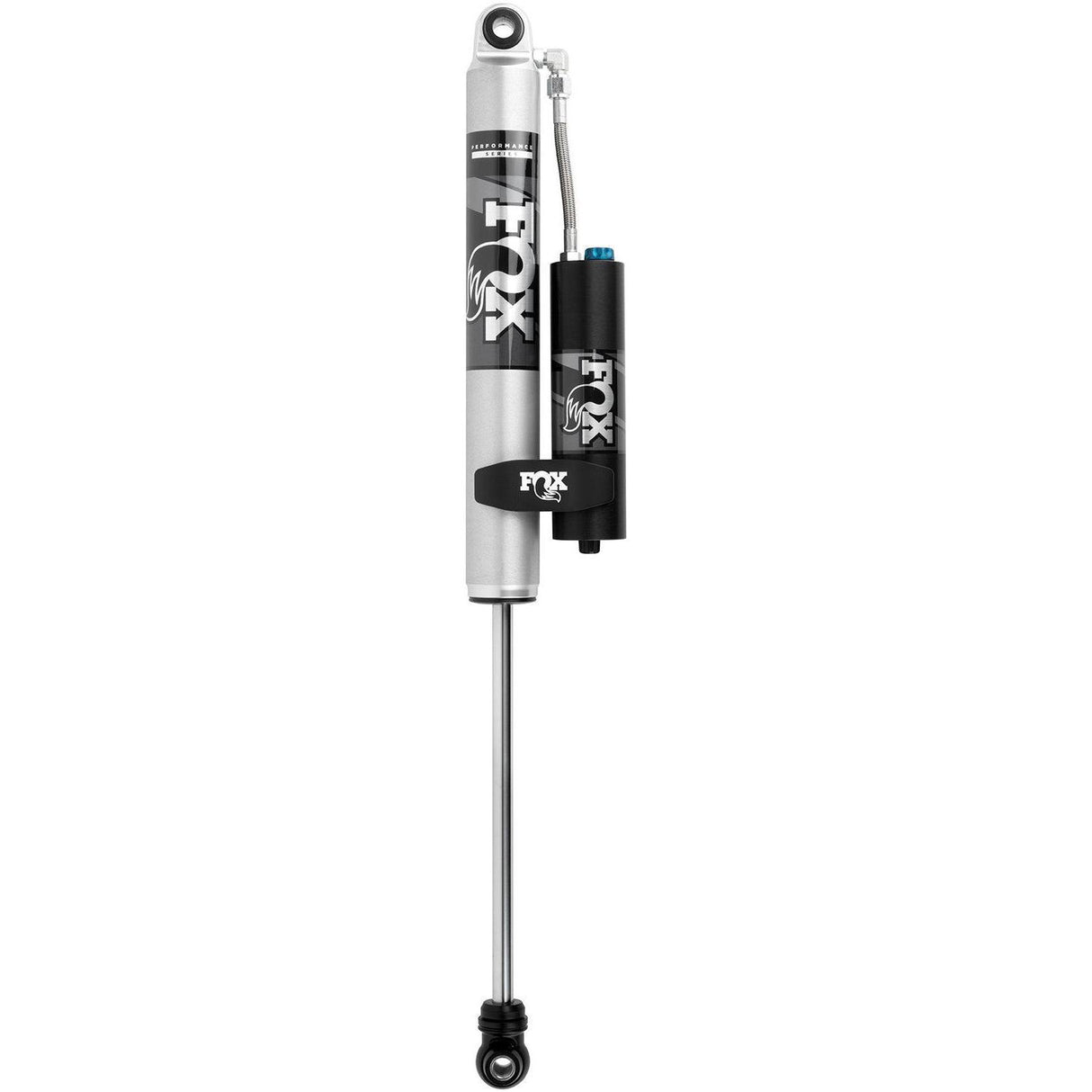

1988-2019 Patrol Rear 0-2.5" Performance Series 2.0 Smooth Body Reservoir Shock (Pair) - Adjustable

Fits

The aluminum-bodied Performance Series 2.0 Reservoir smooth body shock delivers FOX's industry-leading and race-dominating performance in an affordable, hassle-free bolt-on package.

With an external reservoir that increases oil and nitrogen capacity, this shock not only looks race-ready but also delivers a smooth ride quality thanks to its specially designed piston and valving. Don't let rough roads stop you - this shock can handle them all!

Part Number: 885-26-224

• Body 2.0"  Impact extruded 6061-T6 aluminum
• Rust resistant
• Body Plating Clear-anodized
• Components Black-anodized, CNC-machined 6061-T6 billet aluminum
• Shaft 5/8" hard chrome plated heat-treated alloy steel
• Piston Race-developed high-flow Piston design
• Valving Application specific Valving
• Seals Redundant sealing pack system main seal, wiper seal, scraper seal

Specs

• Travel: 10.12"
• Rear Lift Height: 0-2.5"
• Extended Length: 26.02"
• Compressed Length: 15.9"
• Top Mount: EB4
• Bottom Mount: EB4

• Click Here

• Includes Billet Reservoir Clamp
• Includes Universal Bracket
• Does NOT fit leaf spring models

Parts Only

• 1-Year Limited Warranty
• FOX Factory Inc. products are covered by a 1-Year Limited Warranty against defects in materials and/or workmanship. Any modifications to the product will void the warranty. This Warranty will be extended to the original retail consumer of an OEM Customer's FOX Factory Inc. equipped vehicle and is valid for one year from the original date of purchase from an OEM Customer's authorized dealer. Warranty is limited to the repair or replacement of the FOX Factory Inc. product. FOX Factory Inc. reserves the right to make the final decision with regards to all warranty related issues.
