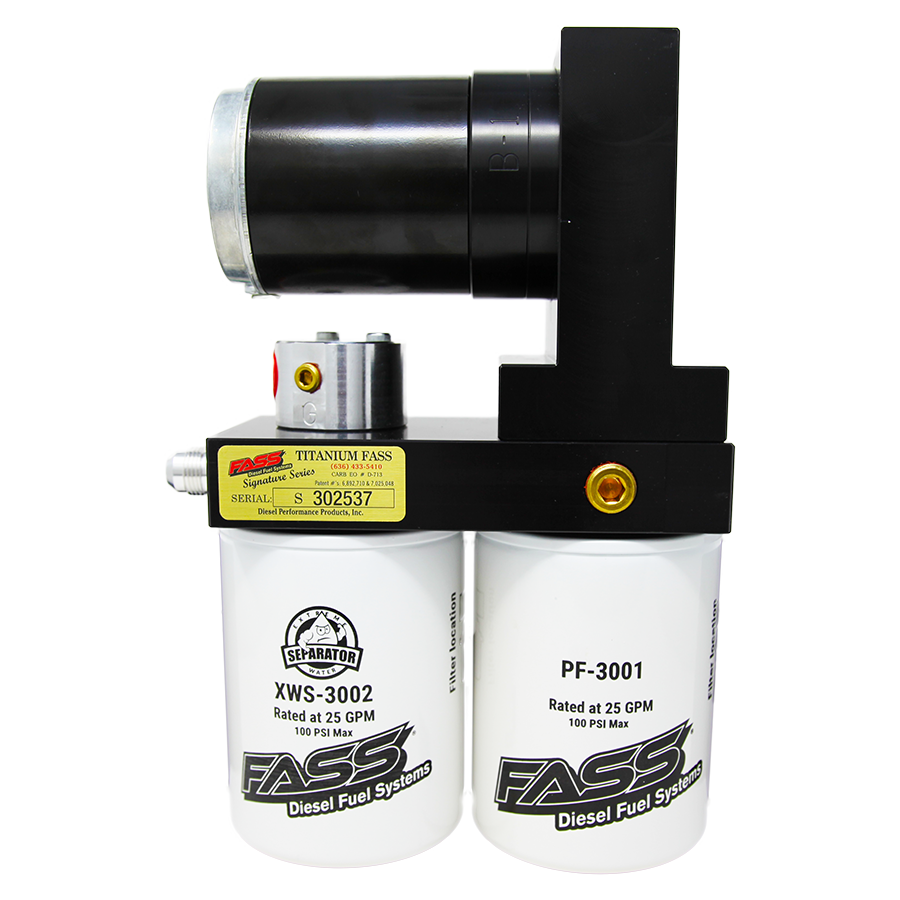

1989-1993 Cummins Titanium Signature Series 100GPH Lift Pump (TSD02100G)

Fits

Power Rating: Stock - 600hp

Flow Rating: 100 GPH

Preset Fuel Pressure: 8-10PSI

Filter Life Expectancy: 30,000 Mile

Filtration Rating: 2 Micron

Warranty: Limited Lifetime Warranty

This Titanium Signature Series diesel fuel lift pump was engineered by FASS Fuel Systems to be the top-performing, longest lasting and most reliable aftermarket filtration system in the diesel industry. Rated at 100 gallons per hour and backed by a limited lifetime warranty this Titanium Signature Series lift pump is capable of supporting your 1st Gen 12-Valve Cummins with enough fuel for up to 600HP.

This Titanium Signature Series lift pump also offers advanced filtration benefits that will help protect your injection systems, effectively extending the life of both your Injection Pump and Diesel Injectors. These Benefits include an improved filtration rating of 2 Microns, a built-in water separation filter, and FASS Fuel Systems patented air/vapour removal process. Aftermarket lift pumps are important for both daily drivers and high-performance Cummins when looking to improve either fuel economy or increase horsepower/torque.

FASS has taken the time to perfect its System before letting it hit the market and because of this, they have less than a 2% failure rating with its motor and a design that implements unique design features you can only get with Fass Diesel Fuel Systems.

Part Number: TSD02100G

Superseded Part Number: TS D02 100G

• New Whisper Technology
• New Bolt On Bracket Installation
• Removes Water, Air, and Debris From Diesel Fuel
• Protects and Extends The Life Of Your Injectors
• Improved Cold Weather Starts
• ½ Inch Fuel Lines and Ports
• Fuel Mileage Improvement
• Improved Fuel Volume Delivery
• Smoother Engine Idle
• Quietest Motor On The Market
• Limited Lifetime Warranty
• 1,000,000 Mile Motor
• 30,000 Mile Filter Life Expectancy

FASS Whisper Technology (FWT) was engineered to meet the stringent demands of today’s quiet diesel engines. FASS Whisper Technology was in development and testing for over two and a half years to meet FASS Fuel System’s high quality and durability standards. FASS Whisper Technology effectively and drastically reduces the sound levels of the Signature Series FASS Diesel Fuel System to a “whisper” while at the same time increasing fuel flow rates. Our competition reduces noise levels by reducing flow rates.

Performance Radius Cuts (PRC) are an advanced machining technique used to improve the flow of fuel through the FASS System by creating smooth-flowing cuts within the aluminum housing.  This prevents the reintroduction of air and vapor back into the fuel and prevents eddy currents from forming within the corner of a 90° sharp angle. FASS Titanium Signature Fuel Systems are the only Fuel Air Separation System that incorporates these exclusive Performance Radius Cuts, lesser competitors commonly use T-Bone and square 90° fittings that can limit fuel flow, cause restrictions and reintroduce air back into your fuel.

Mass Flow Return (MFR) technology is used to continually polish your fuel by keeping a positive pressure on the fuel being delivered to the engine to prevent cavitation along with galling and scoring. Then returning the fuel, that’s not yet needed, back to the tank after it has been passed through the filtration process, removing dirt, air, vapour, and water. This means your fuel is being constantly “Polished” (cleaned), guaranteeing that your diesel truck always has the cleanest fuel possible. The MFR in combination with the optional FASS Fuel Heater options will help ensure “EXTREME” cold weather operations!

Bolt-On Bracket Mounts made from machined steel for superior support and strength are now utilized to simplify the mounting process. Unlike old mounting styles that require drilling or welding, FASS utilizes your Dodge Cummins factory bed bolt (the bolt that secures your truck bed to your frame). In turn, this makes mounting your new Titanium Series Lift Pump a simple process that only takes minutes to install.
