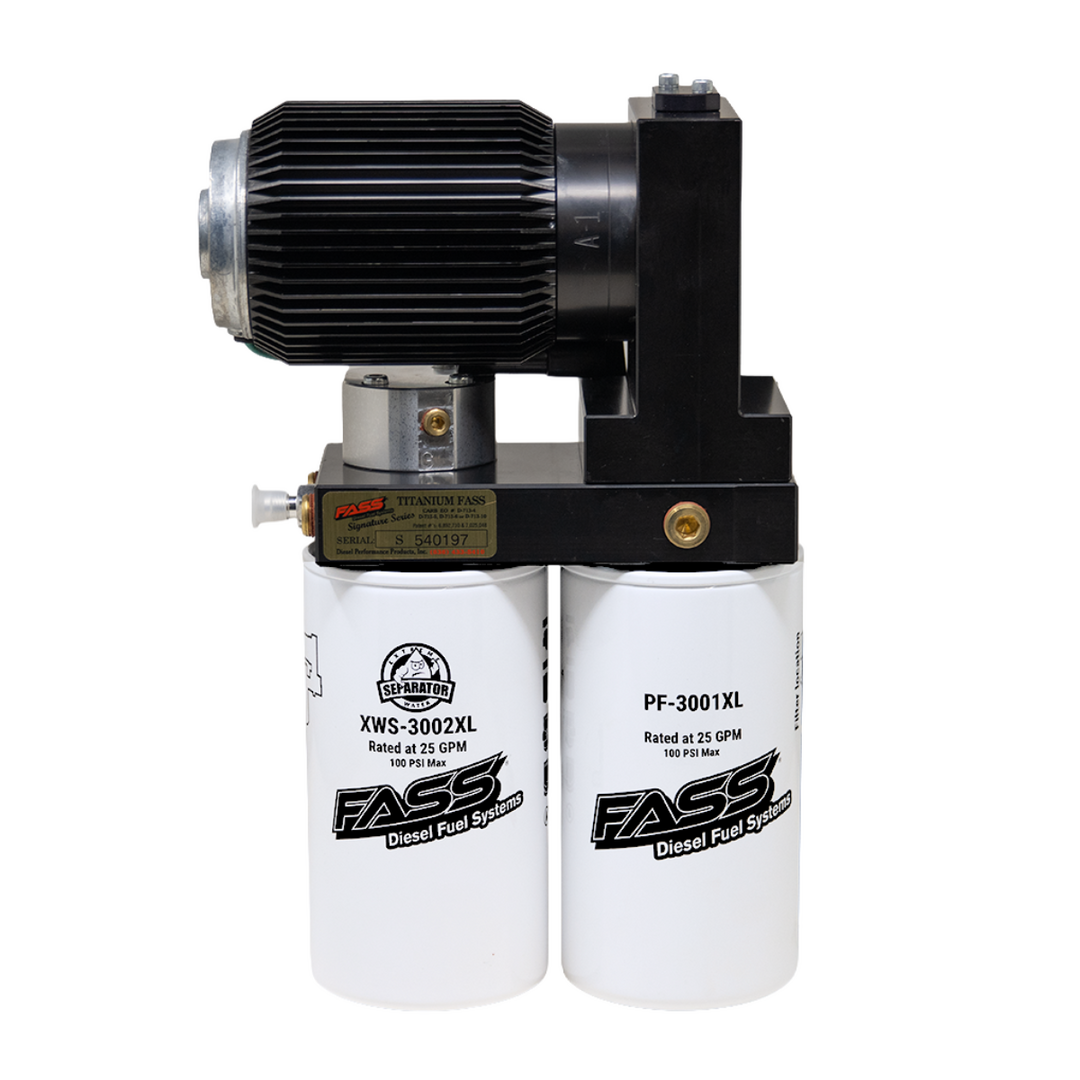

1989-2024 Universal Industrial Series 290GPH Lift Pump (INDDD15290G)

Fits

Power Rating: 900-1200HP

Flow Rating: 290GPH

Filtration Rating: 2 Micron

Introducing the FASS INDDD15290G Lift Pump! Proudly crafted in the good ol' US of A, this diesel fuel system is designed by FASS Fuel Systems to be the ultimate choice for performance, longevity, and dependability in the industry. With a 290GPH rating and an impressive 1 million mile/5 year warranty, you can trust this aftermarket filtration system to keep your rig running smoothly.

This cutting-edge system features enhanced filtration technology, rated at 2 Microns, along with a built-in water separation filter and FASS Fuel Systems' innovative air/vapor removal process. Safeguard your injection system and prolong the life of your injectors!

With superior filtration and a focus on perfection, FASS Diesel Fuel Systems sets itself apart from competitors. Don't settle for rushed releases! And an intense engineering focus, FASS Fuel Systems offers motors with a failure rate under 2% and exclusive design elements. This Industrial Series Diesel Fuel System also eliminates the need for a dedicated fuel return line kit, saving you 50% or more installation time.

Part Number: INDDD15290G

• FASS air separation port ties into OEM engine fuel return
• No need to purchase an additional fuel line kit
• Preset 3-18 PSI fuel pressure
• 290 GPH flow rating
• Removes water, air and debris from diesel fuel
• 2 Micron filtration rating
• Protects and extends the life of your injectors
• Improved cold weather starts
• Decreases carbon monoxide and carbon dioxide emissions
• ½" fuel lines and ports
• Fuel mileage improvement
• Improved fuel volume delivery
• Smoother engine idle
• Optional electric heater ports
• Optional fuel pressure gauge port
• 30,000-mile filter life expectancy
• Quietest motor on the market


• FASS Extreme Water Separator removes over 99% of the water in diesel fuel along with removing dirt, rust, and all other particulates down to 2 microns absolute. Traditional water separators lose filtration efficiency as flow rates increase while the FASS Extreme Water Separator remains highly efficient at removing contaminants.
• FASS Silencing Technology (FST) was developed by the engineering team at FASS Fuel Systems to help reduce the noise created by aftermarket fuel and air separation diesel Systems. By using radius cuts, tighter tolerances on all gears and a high-quality military Spec’d Coating over the aluminum base, FASS Fuel Systems was able to develop the quietest fuel air separation System on the market.
• Performance Radius Cuts (PRC) are an advanced machining technique used to improve the flow of fuel through the diesel System by creating smooth-flowing cuts within the aluminum housing. This prevents the reintroduction of air and vapor back into the fuel and also prevents stagnate fuel pockets from forming within the corner of a 90° bend. FASS Fuel Systems Titanium Signature Series Diesel Fuel Systems are the only Fuel Air Separation System that incorporates these exclusive Performance Radius Cuts, lesser competitors commonly use T-Bone and square 90° fittings that can limit fuel flow, cause restrictions and reintroduce air back into your fuel.
• Continuous Fuel Polishing (CFP) technology is used to continually “polish” your fuel by repeatedly circulating the fuel within the Extreme Water Separator prior to the fuel being sent to the fuel injection System. This process ensures that your diesel engine is supplied with the purest diesel fuel possible.

• Click Here

Parts Only

• 1 Million Mile / 5 Year Warranty
• 1,000,000 Mile Motor
