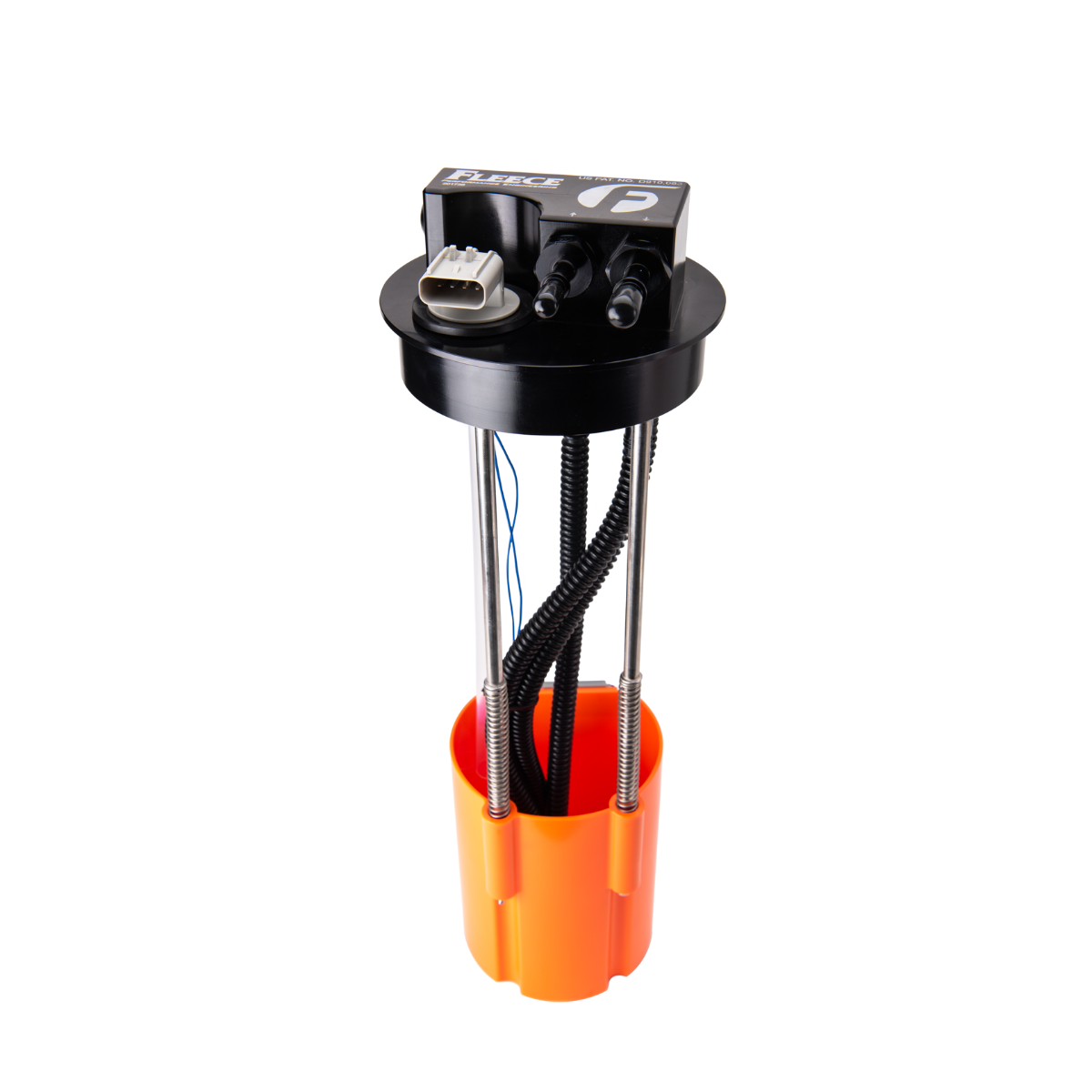

1991-1997 Cummins SureFlo Performance Sending Unit (FPE-SF-CUMM-9197)

Fits

This performance sending unit is an ideal alternative for trucks that don't have an in-tank pump needing to repair a malfunctioning level sender, or if you want to run your own custom fuel lines. Compatible with aftermarket lift pumps & fits directly into your stock sending unit location.

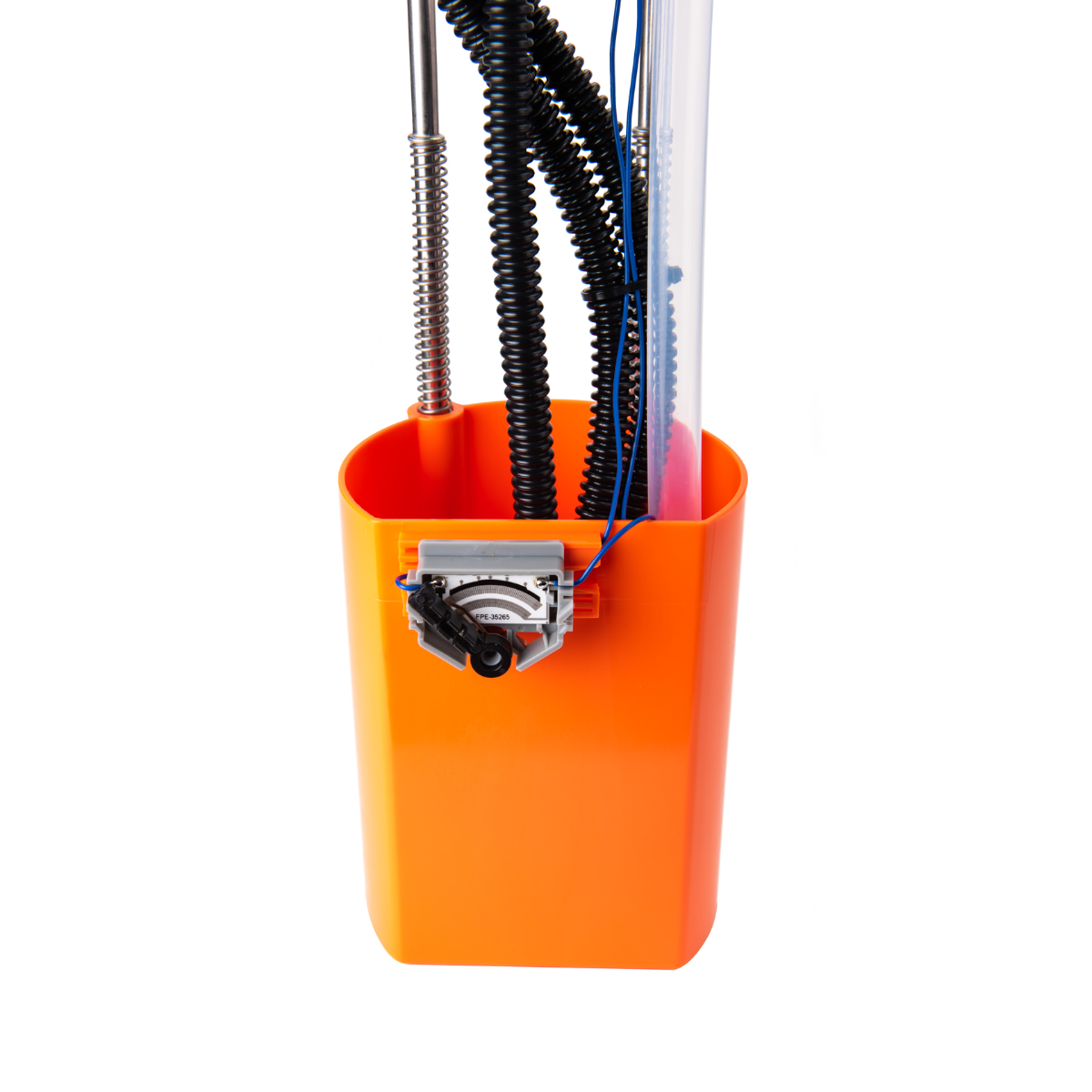

SureFlo works by drawing fuel from and returning fuel to the bucket assembly at the base of the unit. This ensures you are always drawing fuel into your pump and not drawing air into the fuel system.

Part Number: FPE-SF-CUMM-9197

• OEM style fitment that requires no tank cutting or drilling
• New fuel level electronics and fuel float

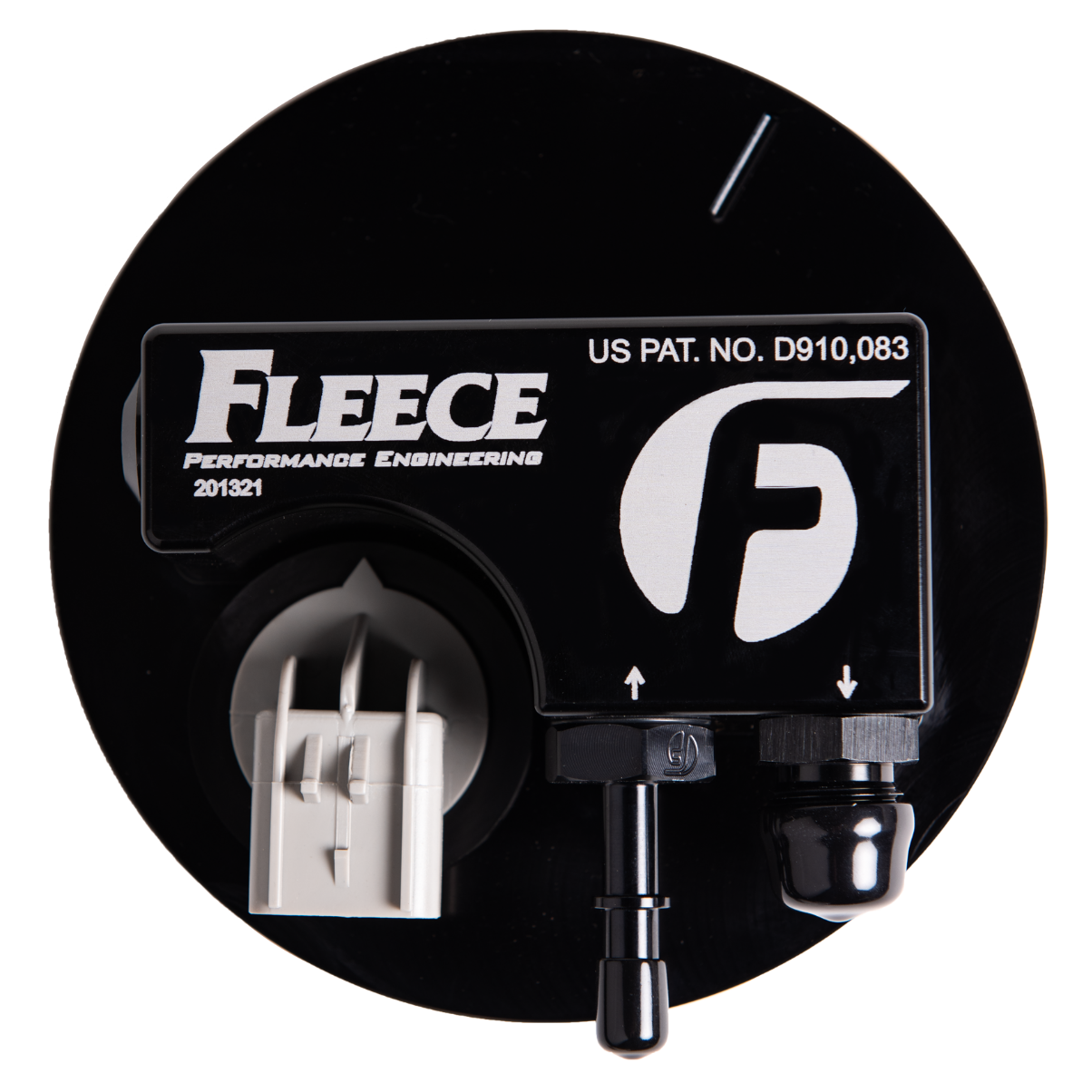

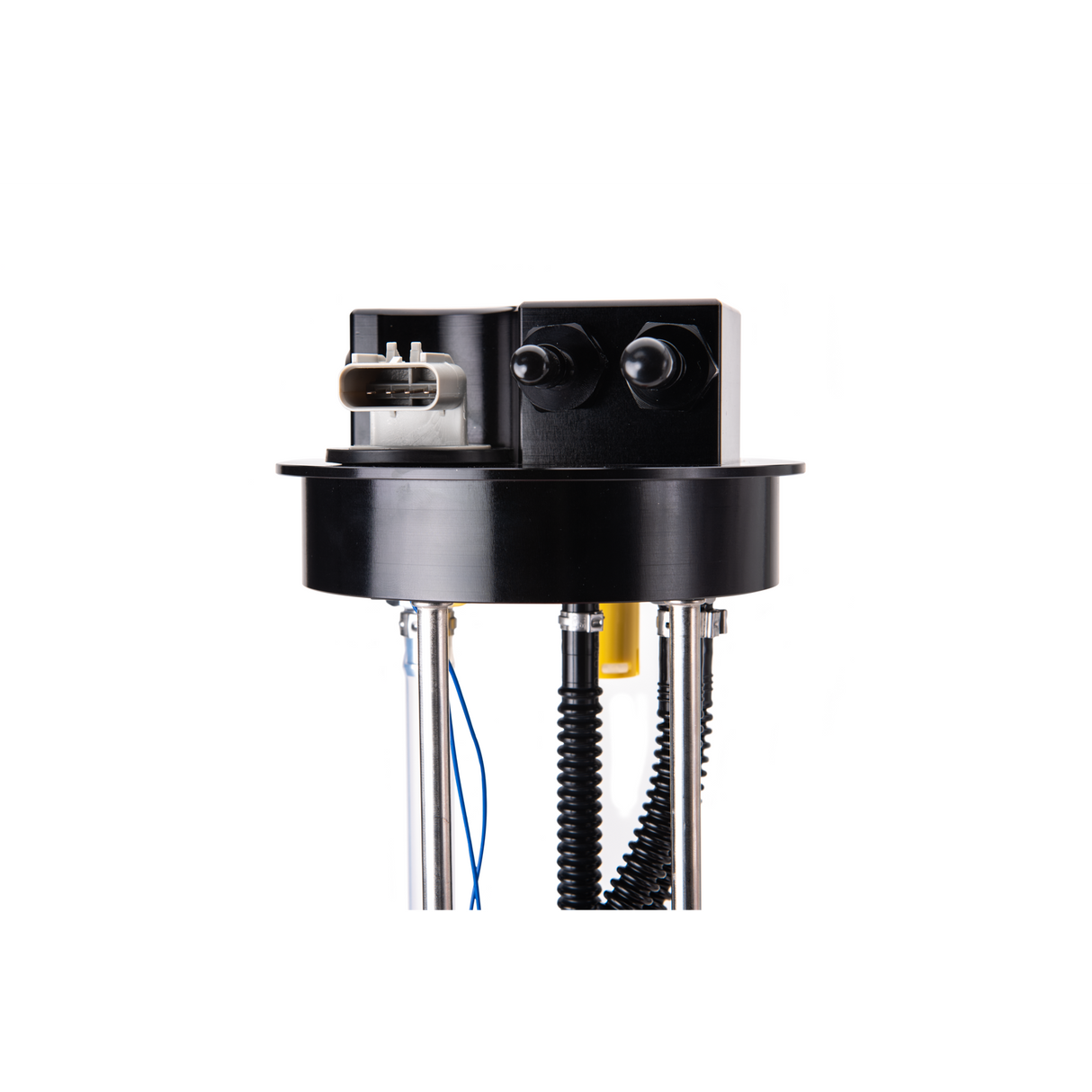

• Heavy duty billet aluminum cap
• Universal -8 AN ports for professionally plumbing a custom fuel setup
• New tank flange seal
• Adaptation pigtail connector
• Eliminates the dreaded ¼ tank problems

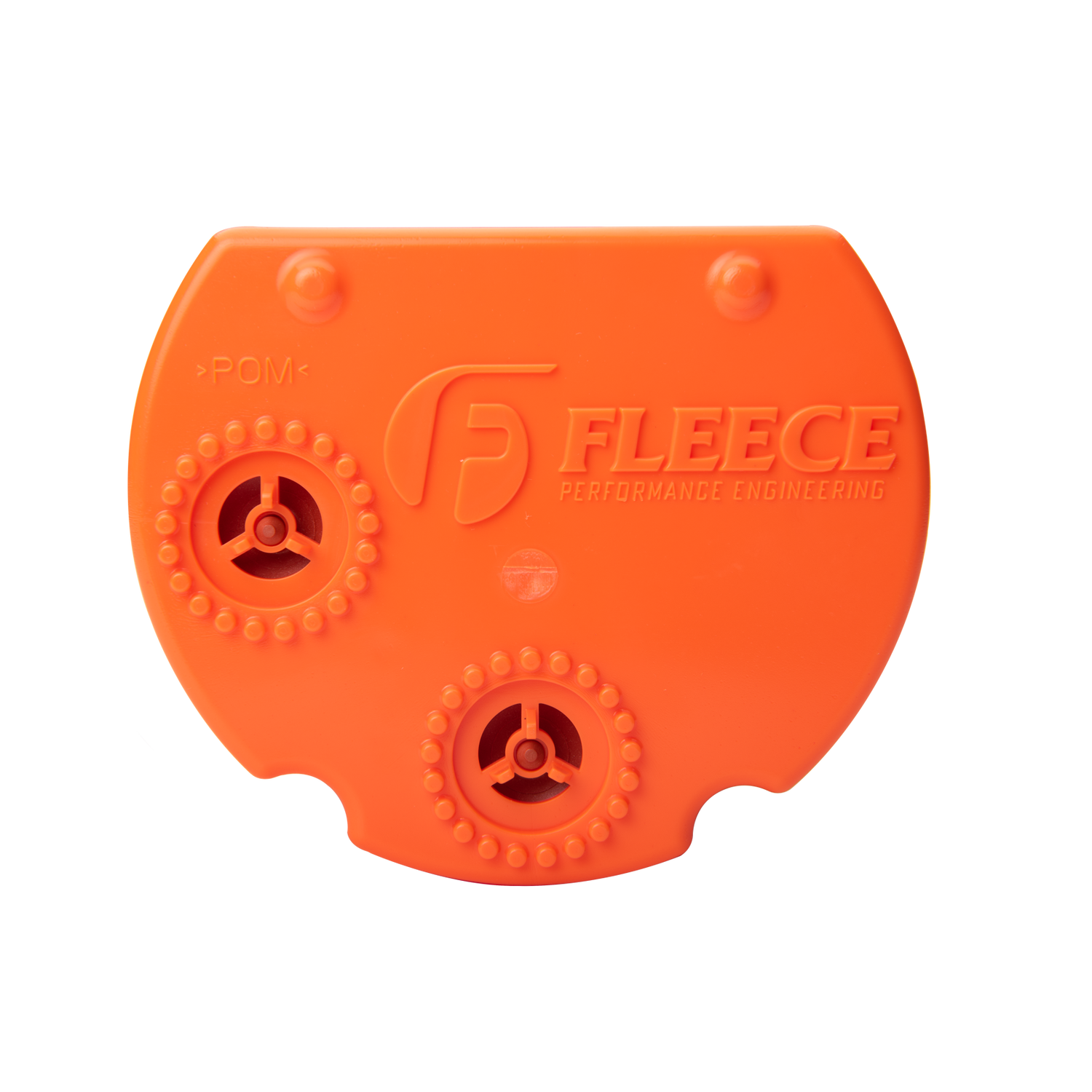

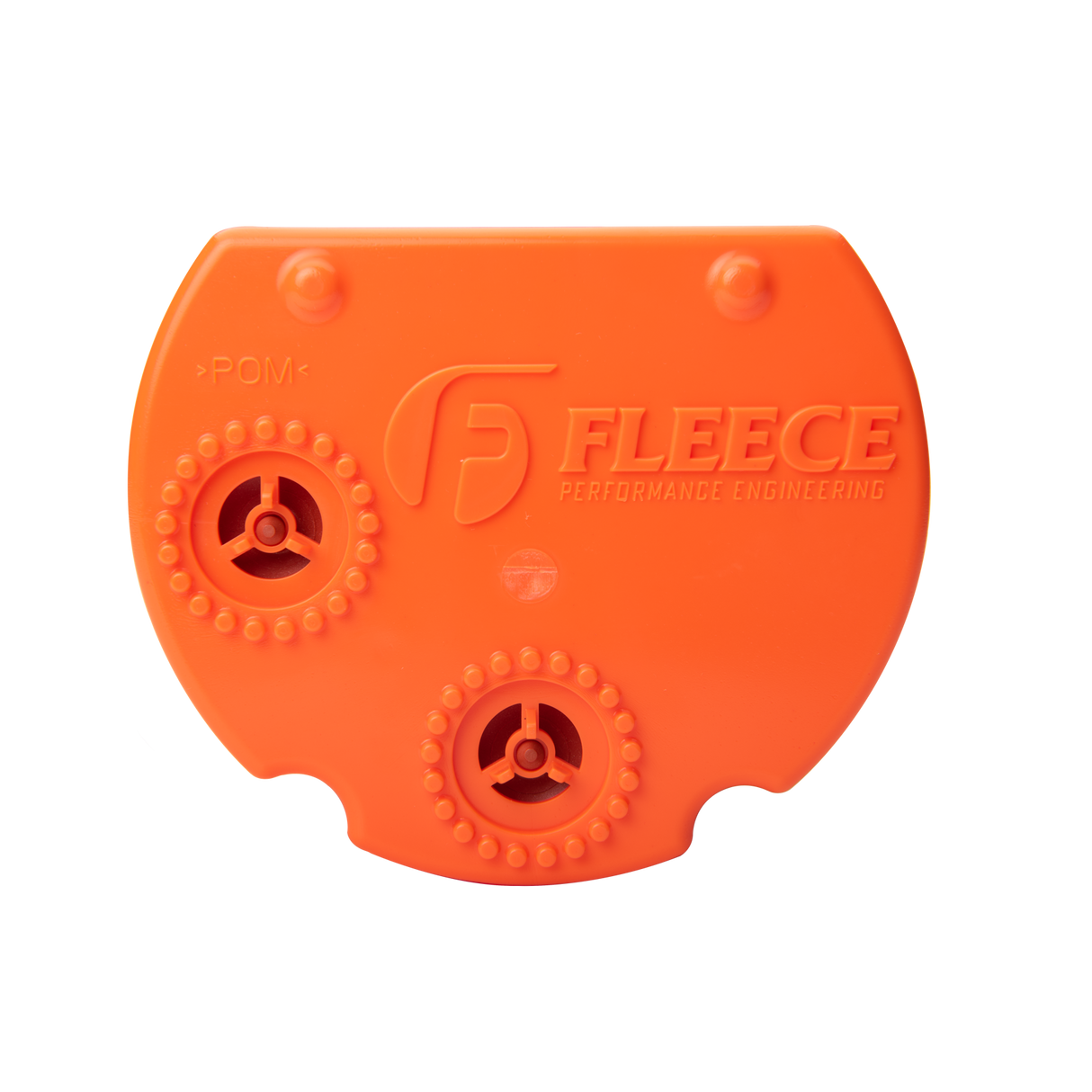

• One way check valves to allow fuel to easily flow in at lower levels

• Verify your existing MOPAR sending unit part number is listed in the table below. If your part number is not shown, then it is not verified to fit.  Many trucks have been retrofitted over time to gasoline model tanks and the SureFlo will not fit into a retrofitted tank configuration.

• Cross-reference chart:

  Model Year	Replaces MOPAR P/N	Previously Superseded P/N's	Fuel Tank Size
  1991	52018309	52004838, 52004937	30 Gallon
  1992	52018309	52004838, 52004937	30 Gallon
  1993	52018309	52004838, 52004937	30 Gallon
  1994	4864735	R4864735, 4864735	35 Gallon
  1995	4864209	04798293, 52102024, 52127802, R4864209, 4864209	35 Gallon
  1996	4798671	04798293, 52102024, 52127802, R4864209, 4864209	35 Gallon
  1997	4798671	04798293, 52102024, 52127802, R4864209, 4864209	35 Gallon
  1998	4897668AD	0489766AD, 489766AE	26, 34, 35 Gallon
