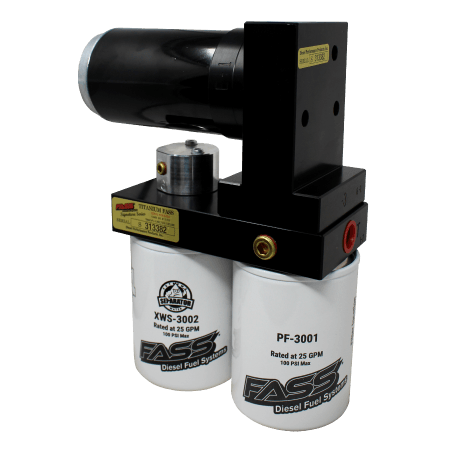

1994-1998 Cummins Titanium Signature Series 240GPH Lift Pump (TSD10250F240G)

Fits

Power Rating: 900 - 1200HP

Preset Fuel Pressure: 45 PSI

Flow Rating: 240GPH

Filter Life Expectancy: 30,000 Miles

Filtration Rating: 2 Micron

Warranty: Limited Lifetime Warranty

This is a complete replacement pump for your OE Dodge Lift Pump.

This Titanium Signature Series diesel fuel system Features the Revolutionary Whisper Technology that was engineered by FASS Diesel Fuel Systems to be the top performing, longest lasting, and most reliable aftermarket filtration system in the diesel industry.  Rated at 240 gallons per hour, preset fuel pressures of 45PSI, and backed by a limited lifetime warranty the Titanium Signature Series lift pump can support your Dodge Cummins 5.9L 12V diesel engine with enough fuel for 900 - 1200 HP and can support multiple fueling upgrades.

This Titanium Signature Series fuel system also offers advanced filtration benefits that will help protect your 12-valve injection systems, effectively extending the life of both your P-Pump and Bosch Diesel Injectors. These Benefits include an improved filtration rating of 2 Microns, a built-in water separation filter, and FASS Diesel Fuel Systems patented air/vapor removal process. Aftermarket lift pumps are important for both daily drivers and high-performance applications when looking to improve either fuel economy or increase horsepower/torque.

This kit includes a Bulkhead Fitting and Suction Tube. Machined from 6061 T-6 Billet Aluminum, the Bulkhead fitting functions as both a suction tube and return and features a 5/8” Suction Tube and suction fuel line along with a ½” Fuel Return Port. This new and improved version of FASS's previous Suction Tube allows the user to plumb their FASS return line directly to their bulkhead fitting, eliminating all cutting of the filler neck and significantly speeding up the installation process.

The pickup tube is fabricated out of PTFE Teflon which can be easily cut to adapt to different depths of fuel tanks. Properly installed, you can safely operate down to about 1/8 tank of fuel.

FASS has taken the time to perfect its System before letting it hit the market and because of this, they have less than a 2% failure rating with its motor and a design that implements unique design features you can only get with Fass Diesel Fuel Systems.

Part Number: TSD10250F240G

Superseded Part Number: TSD10240G
Previously Superseded Part Number: TS D10 240G

• New Whisper Technology
• Bulk Head Suction Kit Included
• Complete Replacement Pump
• New Bolt On Bracket Installation
• Removes Water, Air, and Debris From Diesel Fuel
• Protects and Extends The Life Of Your Injectors
• Improved Cold Weather Starts
• ½ Inch Fuel Lines and Ports
• Fuel Mileage Improvement
• Improved Fuel Volume Delivery
• Smoother Engine Idle
• Quietest Motor On The Market

FASS Whisper Technology (FWT) was engineered to meet the stringent demands of today’s quiet diesel engines. FASS Whisper Technology was in development and testing for over two and a half years to meet FASS Fuel System’s high quality and durability standards. FASS Whisper Technology effectively and drastically reduces the sound levels of the Signature Series FASS Diesel Fuel System to a “whisper” while at the same time increasing fuel flow rates. Our competition reduces noise levels by reducing flow rates.

Bolt On Bracket Mounts old mounting styles require drilling or welding when mounting your new pump. This has now been simplified with our new bolt-on brackets that utilize your Dodge Ram factory bed bolt, the bolt that secures your truck bed to your frame. Mounting your Titanium Series lift pump takes only minutes and all brackets are made from machined steel for superior support and strength.

The FASS Fuel Systems are important for both daily drivers and high-performance applications when looking to improve engine operation. The added filtration with the removal of air/vapor will greatly enhance the life of your fuel injection system along with improving the horsepower/idle quality/throttle response/fuel economy/lower EGT’s & extreme cold weather operations if equipped with FASS fuel heating options.

Performance Radius Cuts (PRC) are an advanced machining technique used to improve the flow of fuel through the FASS System by creating smooth-flowing cuts within the aluminum housing.  This prevents the reintroduction of air and vapor back into the fuel and prevents eddy currents from forming within the corner of a 90° sharp angle. FASS Titanium Signature Fuel Systems are the only Fuel Air Separation System that incorporates these exclusive Performance Radius Cuts, lesser competitors commonly use T-Bone and square 90° fittings that can limit fuel flow, cause restrictions and reintroduce air back into your fuel.
