1994-1998 Cummins Fuel Control Plate 10 (1040197)

Fits

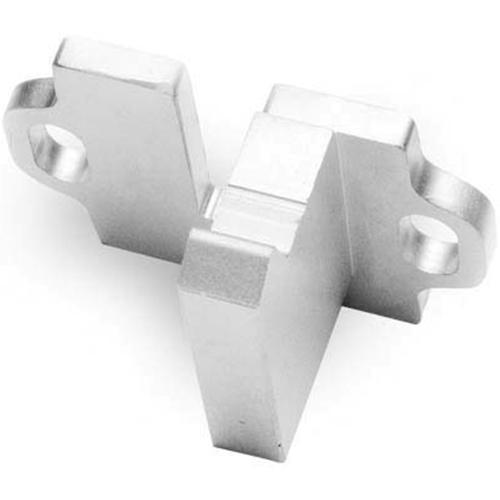

Commonly known as a "cam plate", BD's Fuel Stop Plate controls the rack travel, which affects the amount of fuel the Bosch P7100 fuel pump delivers. Six different ramp designs enable power gains from 30 to 150 hp and 70 to 300 lb.-ft. of torque. A calibrated boost tube orifice is included to improve turbo performance. Strong knowledge of the Bosch P7100 pump is required for installation.

Part Number: 1040197

• Commonly known as a "cam plate"
• Controls the rack travel which affects the amount of fuel the P7100 fuel pump delivers
• Six different ramp designs
• Power gains from 30 to 150 hp and 70 to 300 lb.-ft. of torque
• Calibrated boost tube orifice improves turbo performance
• Strong knowledge of the P7100 pump is required for installation

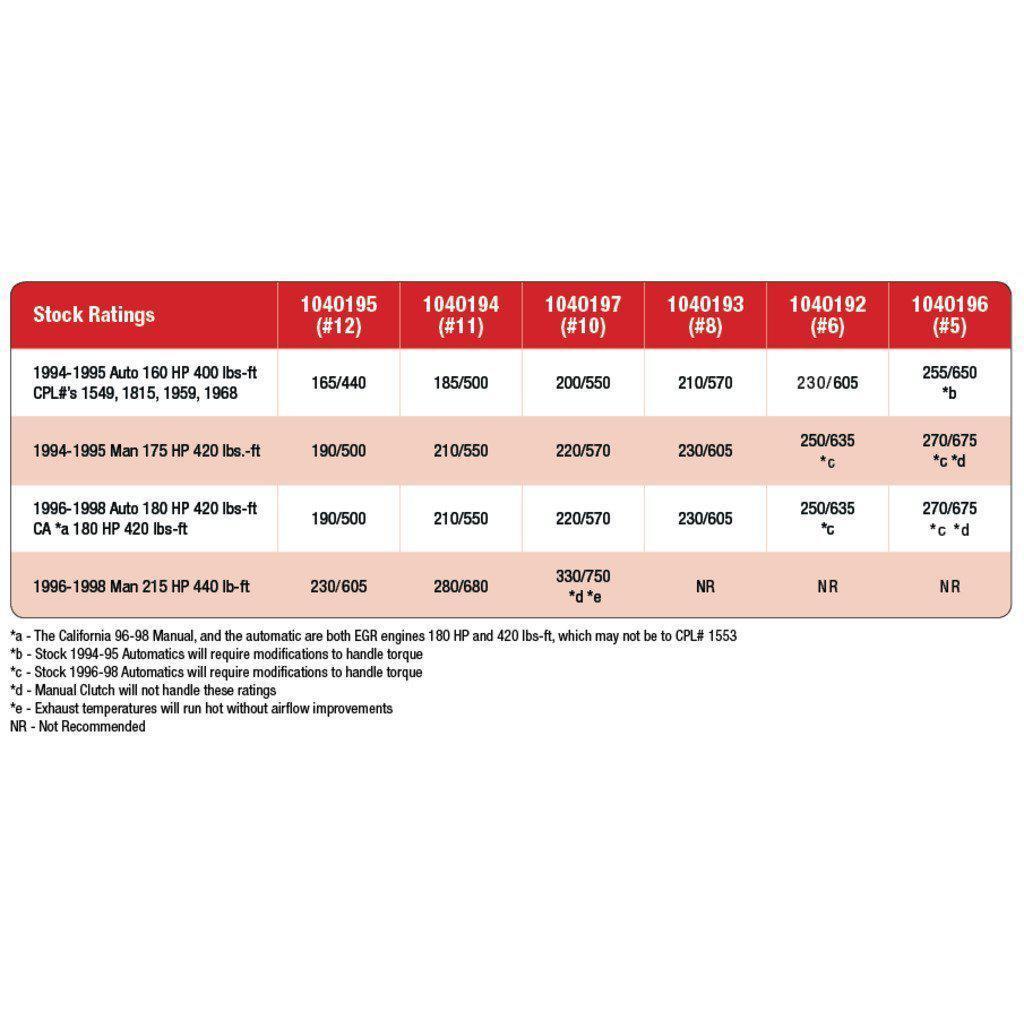

• 1994-1995 Auto 160 HP 400 lbs-ft CPL#'s 1549, 1815, 1959, 1968 --> 200 HP / 550 lbs-ft
• 1994-1995 Man 175 HP 420 lbs.-ft --> 220 HP / 570 lbs-ft
• 1996-1998 Auto 180 HP 420 lbs-ft --> 220 HP / 570 lbs-ft
• 1996-1998 Auto/Man CALIF 180 HP 420 lbs-ft --> 220 HP / 570 lbs-ft
• 1996-1998 Man 215 HP 440 lb-ft --> 330 HP / 750 lbs-ft (Manual clutch may not handle this rating / Exhaust temps will run hot without airflow improvements)

Parts Only

• 12-Months
• 12,000 Miles
