1994-1998 Powerstroke Stage 3 TP38R Tiger Turbocharger (300277)

Fits

Supports: Up to 238cc/80% injectors

Due to the popularity of KC Turbos TP38R turbo (also known as the OBS Tiger Turbo) for the OBS truck, they decided to make a smaller version for those who are running average-size injectors. The KC Turbos TP38r 66mm/73mm turbocharger has a drastically different 66mm compressor wheel. The wheel is a larger, 7x7 wheel and has been modelled after the 366sxe compressor wheel. It has the same profile, shape, and blade style, however, it is reverse rotation. This wheel is not only bigger but engineered to be stronger. It also utilizes thicker blades, a thicker hub, and thicker backing, making it much less prone to fatigue and wheel bursts. To top it all off, the 73mm Turbine wheel is now much larger than the old 70mm wheel and has an increased shaft thickness of 7.5mm from the previous 6.4mm.

KC Part Number: 300277

• 3.5" ported housing with drilled hole anti-surge for high flow
• 66mm 7x7 SXE style compressor wheel with extended tip technology
• 73mm SXE style turbine wheel
• High Flow deleted EBPV outlet flange
• Dual Ball Bearing Turbo
• 100% drop in turbo
• Comes with all gaskets and o-rings to install
• Comes with new intake boot

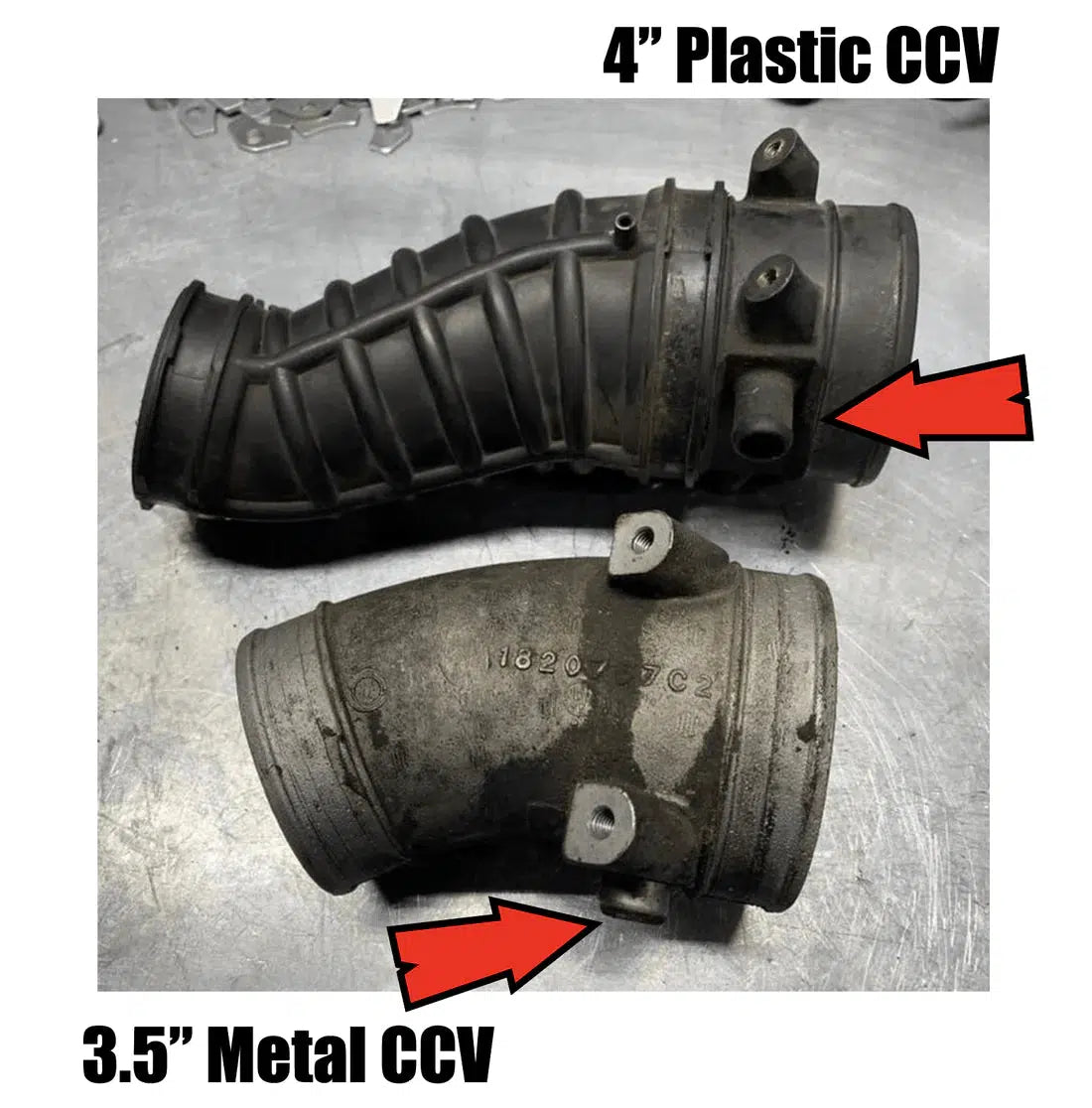

• Please select your truck CCV when ordering
• All KC Turbos are assembled and built in the United States. They will be special orders until we have good stock and may take up to two weeks for delivery. Let us know if you're in a rush so we can get them rushed up!
• KC Turbos highly recommends adding these products for best results
• Upgrading your Up-Pipes
• Upgrading EBPV Pedestal
• Running custom tuning
