1994-1998 Powerstroke KC300x Stage 2 62mm/73mm Turbocharger (300221)

Fits

Supports: Up to 205cc/30% injectors

The KC Turbos 300221 KC300x Stage 2 62mm/73mm Turbocharger is a journal-bearing turbo with a Borg Warner 300sxe style turbine wheel that has been modified to create a 100% drop-in replacement turbo for your Powerstroke.

This turbo will surprise you at how well it runs! KC Turbos has torture tested it for longevity and has proven its capability on the dyno as well as the Race Track. The 1.0 A/R Housing is intended to cool your EGTs above 3000 RPMS which is ideal for racing applications. Then for all of the dedicated tow rigs and daily drivers, the .84 A/R housing will provide a quicker spool and cooled EGTs below 3000 RPMs.

Part Number: 300221

• 100% drop in turbo
• 4" ported housing with anti-surge for high flow
• 63mm 7x7 SXE style compressor wheel with extended tip technology
• 73mm SXE style turbine wheel
• Big Head Wastegate Actuator for elevated boost control
• High Flow deleted EBPV outlet flange
• Reliable Journal Bearing Design (Rebuildable)

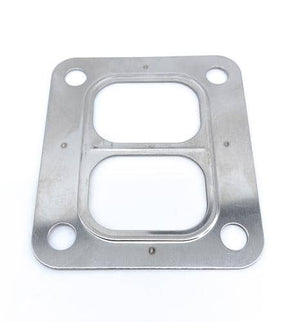

• Comes with all gaskets and o-rings to install
• Comes with new 4" intake boot
• Supports: Up to 205cc/30% injectors

• Click Here

• KC Turbos Highly Recommends adding these products for the best results:
• Upgrading you up-pipes
• Upgrading EBPV Pedestal
• Running custom tunning
• EXHAUST BRAKES: Do exhaust brakes work with KC turbos? KC Turbos has found that some brands have clearance issues and might cause the brake to hinder performance, rub the turbine wheel, or cause other issues.  These brakes typically use some sort of flapper to close which causes extreme exhaust back pressure to aid in braking.  This can be hard on a turbo and motor and is not recommended.  It will be up to the customer to verify fitment and functionality.
• If you have Questions regarding the CCV boot, please see the last photo
• Please select your trucks CCV when ordering
• KC turbos typically come sand cast unless specifically requested. You may receive a polished unit depending on stock. There is an additional fee for a polished cover
• KC turbos are designed to fit directly in 7.3 equipped pick-up trucks. Although KC turbos can drop into 7.3 equipped Vans, you will need to modify the turbo intake boot and down-pipe for proper fitment
• All KC Turbos are assembled and built in the United States. They will be special order until we have good stock and may take up to two weeks for delivery. Let us know if you're in a rush so we can get them rushed up!
