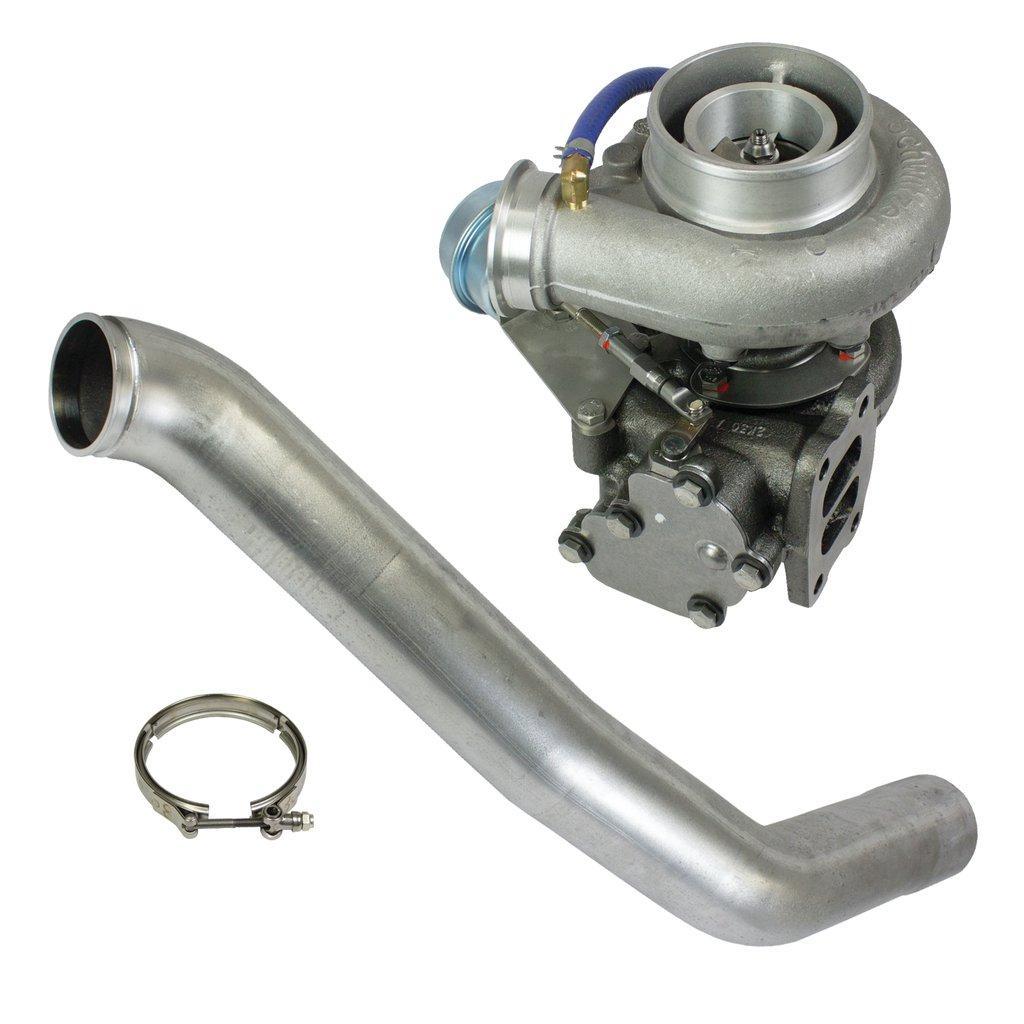

1994-2002 Cummins Super B SX S358 Turbo Kit W/ FMW Billet Wheel (1045220)

Fits

The Ultimate drop in turbocharger for 5.9L Cummins. Designed in a joint effort between BD Diesel & Borg Warner Turbo Systems. This Super B Turbocharger for the 5.9L Cummins engine flows enough air for racing applications, yet are responsive & durable enough for street & heavy duty towing applications.

Part Number: 1045220

• Forged Milled Billet Wheel
• Custom built to BD specifications, not a box turbo
• Quick spool-up with no surging
• Cooler EGTs & less smoke
• Special low inertia, full-floating 6-pad thrust bearings, not 3 pad like box turbos
• Dual volute T3 turbine housing utilizes low rpm exhaust pulses for improved turbine response
• Efficient positive boost-to-drive pressure ratio yields high power with low EGTs
• Perfect fitment to the stock turbocharger inlet connection points
• BD's HD Waste gate and bracket holds boost and prevents over speed damage
• Turnbuckle Boost Control allows for ease of adjustment for altitude and extreme tuning
• Most systems can be upgraded to a twin system for more power or even better towing performance
• 870 CFM / 450 HP
• Comp Wheel: 58mm 2.28in
• A/R Ration: 0.80
• Turbine Wheel: 74mm 2.91in
• Downpipe, V-Band Clamp, Band Clamp
• Backed by BD Diesel's 1 Year Warranty
• Turbo Mount Exhaust brake cannot be installed with this kit! Use a remote E.B.
