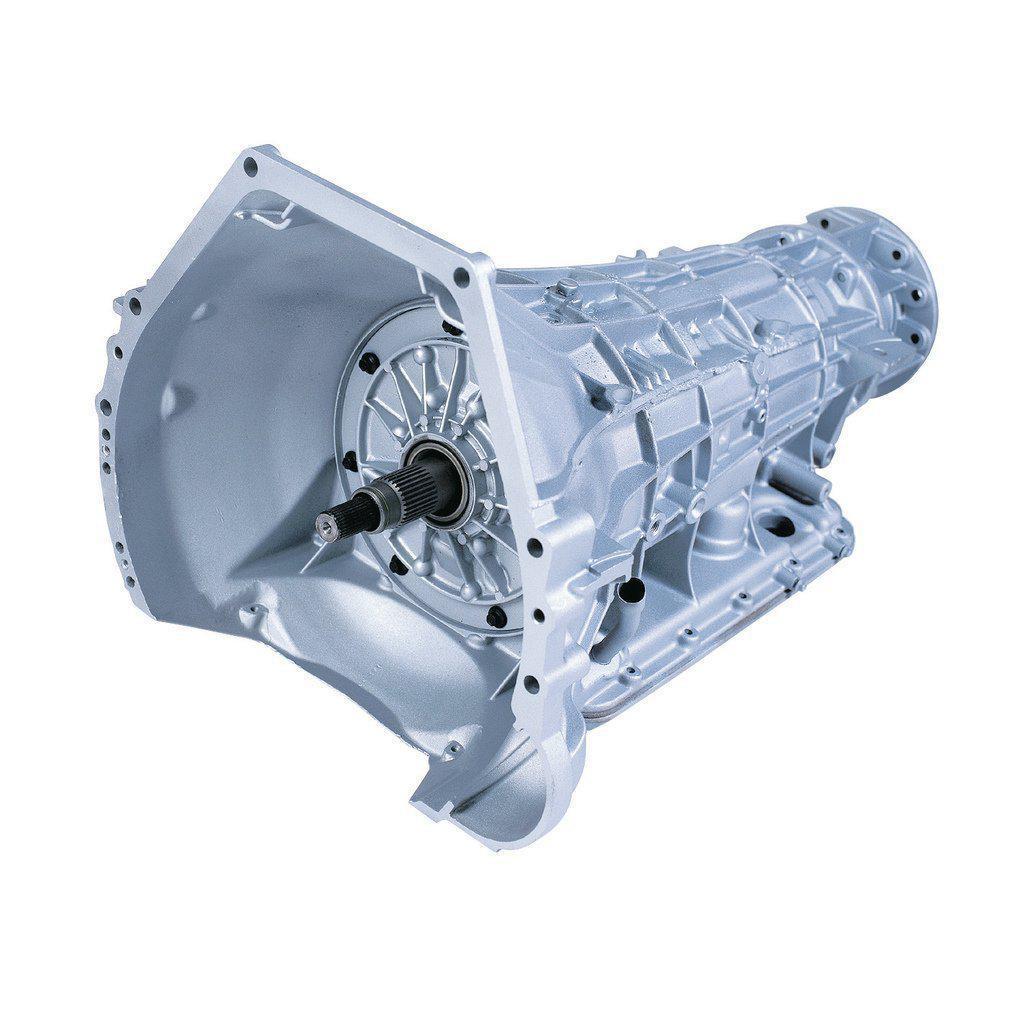

1995-1997 Powerstroke TowMaster E40D Transmission W/ Filter Kit (4WD) (1064424F)

Fits

Since the stock transmission is only engineered to handle the stock output of your engine and not a whole lot more, you may want to consider increasing the durability of your drivetrain. With the BD 1064424F transmission Kit, you will do just that and no longer have to worry about your transmission trying to keep up with the added power to your engine. With this package, you will also receive BD's heavy-duty transmission pan as well as an auxiliary transmission filter kit for added protection.

Part Number: 1064424F

• Machined center support
• Machined intermediate piston
• Machined low/reverse pressure plate
• Machined rear ring gear hub
• Added lube circuits to OD planet
• Added lube and support to output and intermediate shafts
• Replaced all-aluminum planetaries with steel
• Drilled and tapped direct and intermediate feeds to prevent leaks at the case
• Re-programmed accumulator body
• Full shift kit with line mod valve to increase pressures
• Accumulator body enhanced oil flow
• Increased cooler pressure
• Increased pressure to converter
• Creates positive clutch application
• Created lube circuit for towing in overdrive
• 1990-2003 include auxiliary frame mounted full flow filter kit
• Clutch Count: COAST CLUTCH 2
• Clutch Count: FORWARD 5
• Clutch Count: DIRECT 5
• Clutch Count: LOW REVERSE 7
• Clutch Count: INTERMEDIATE 4
• Clutch Count: OVERDRIVE 4
• Pan adds 6qt extra oil capacity
• Fully rollerized geartrain
• Tighter clutch packs that provide a quicker shift
• 30%-40% more clutch material with additional steels
• Improved internal lubrication by adding high power boost valves
• Reworked front pump
• Improved bearing designs
• Upgrade supports
• Upgraded sprags
• Sure-loc snap rings
• Solenoids hard wiring providing high-temperature resistance
• Increase the durability of your drivetrain
• Revised oil circuits
• Handles up to 300% more power and torque than the stock transmission
• Extra clutches and stronger internals
• BD rigid aluminum heavy duty transmission pan
• Pan reduces case flex
• Pan reduces internal oil leakage
• Pan heat-dissipating fins keep the temperature down
• Pan magnetic drain plug
• Not warranted for Race or Sled Pull use
• Each transmission is dyno-tested

• 7 Hours
• Install - Click Here

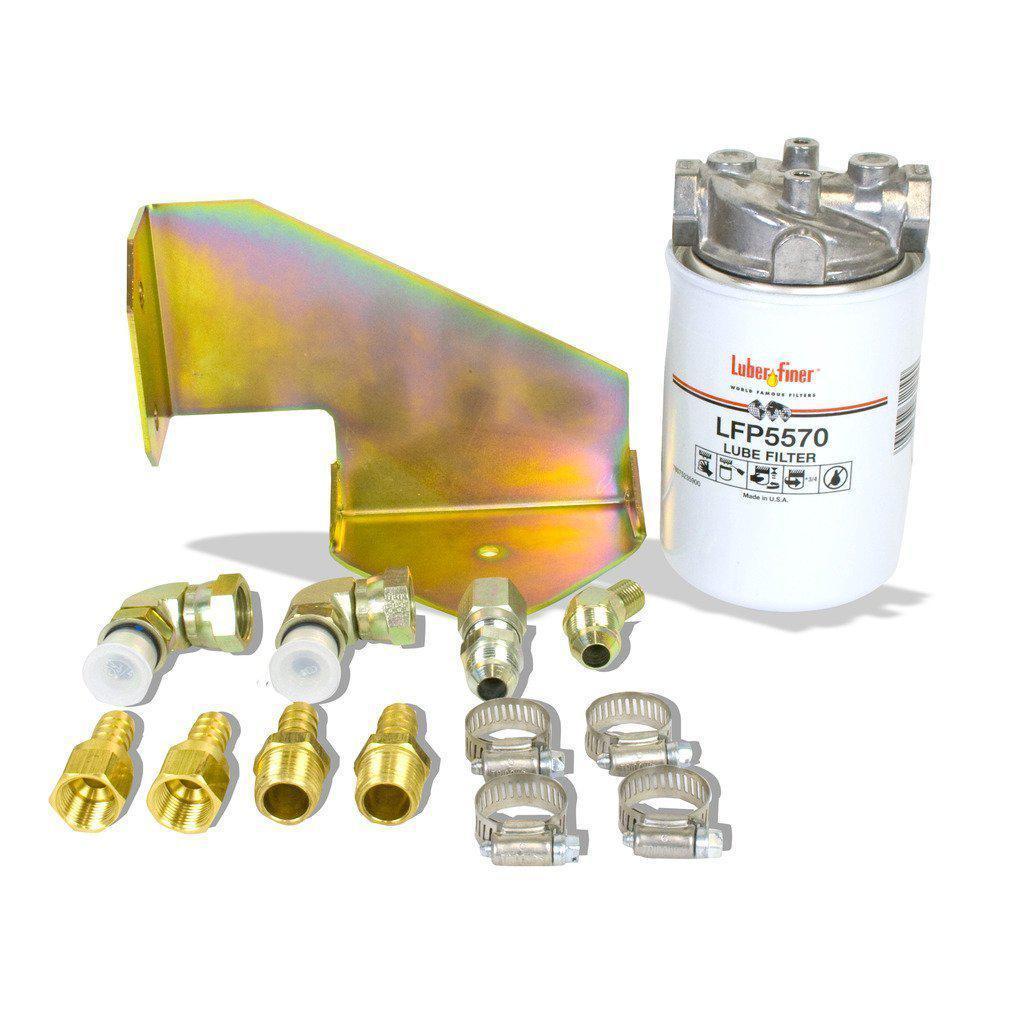

• Auxiliary Filter Kit - Click Here

• Remote filter required for inspection with a cooler flow rate in GPM at Oil/Air transmission cooler outlet.
• Add "PTO" to part number for PTO provision (i.e. 1064444FPTO or 1064444FPTOLR)


Parts Only - No Race abuse covered.

• 36-Months
• 150,000 Miles
• BD torque converter must be installed at the time of installation of the transmission - use of a 3rd party or OE converter will invalidate the transmission warranty.
