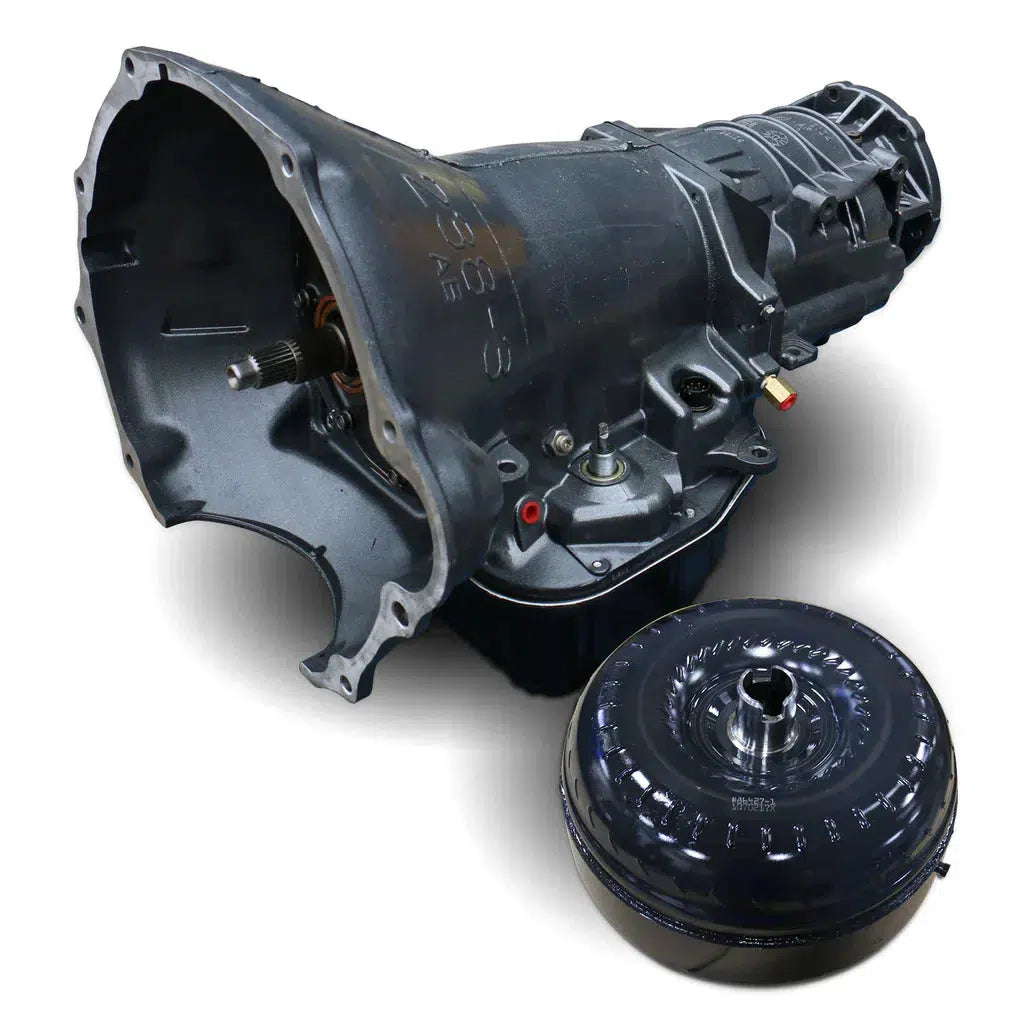

1996-1997 Cummins 47RE Torqumaster Transmission & Converter W/ Speed Sensor & Speedo Head W/ Filter & Billet Input Package (2WD) (1064162BM)

Fits

Dyno tested together for ultimate performance and reliability; Every transmission comes with BD's own HD pan that adds extra fluid capacity. For towing, street, or track, when it comes to a dependable transmission that will stand up to your diesel's power and torque demands.

Part Number: 1064162BM

Transmission:

• Upgraded Valvebody
• Increased line pressure to 190-200psi
• Stock thrust bushings replaced with roller Torrington bearings
• Clutch Count: DIRECT 5
• Clutch Count: FORWARD 5
• Clutch Count: OD 6
• Clutch Count: OD DIRECT 10
• High temp Raybestos band
• Billet band strut
• Billet 300M input shaft
• BD rigid aluminum heavy duty transmission pan
• Pan adds 2qt extra oil capacity
• Pan heat-dissipating fins keep temperature down
• Magnetic drain plug
• Increase the durability of your drivetrain
• BD auxiliary full flow filter kit for extra protection
• Cooler line case saver in every transmission
• Every transmission is tested on a dyno


Torque Converter:

• Triple Disc
• Enhanced Stall - Street/Towing applications
• HD springs absorb shock of engagement
• Stamp forged 1-piece cover
• Eliminates warpage from clutch heat
• Taller cover can be rebuilt more often
• Trapezoid teeth design
• Engineered tighter tolerances
• Self-centering trapezoid teeth design increases contact decreases wear and chatter
• Thrust bearings - not plastic thrust washers
• Riveted piston ensures alignment & eliminates vibration or embrittlement from welding
• Cast stator designs maximizes torque
• New sprag components ensure long term durability
• Furnaced brazed turbine fins for improved fluid coupling efficiency
• Reduced overall weight by 12lbs compared to competitors


• 7 Hours
• Install Click Here
• Auxiliary Transmission Filter Kit Click Here
• Converter Install Click Here

Parts Only - No Race abuse is covered or Sled Pull use.

• 36-Months
• 150,000 Miles
•  Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet.

• 1997 2wd with speed sensor & speedo head use 1064162SS or 1064162BM, if just a speed senor then 1064172SS or 1064172BM
