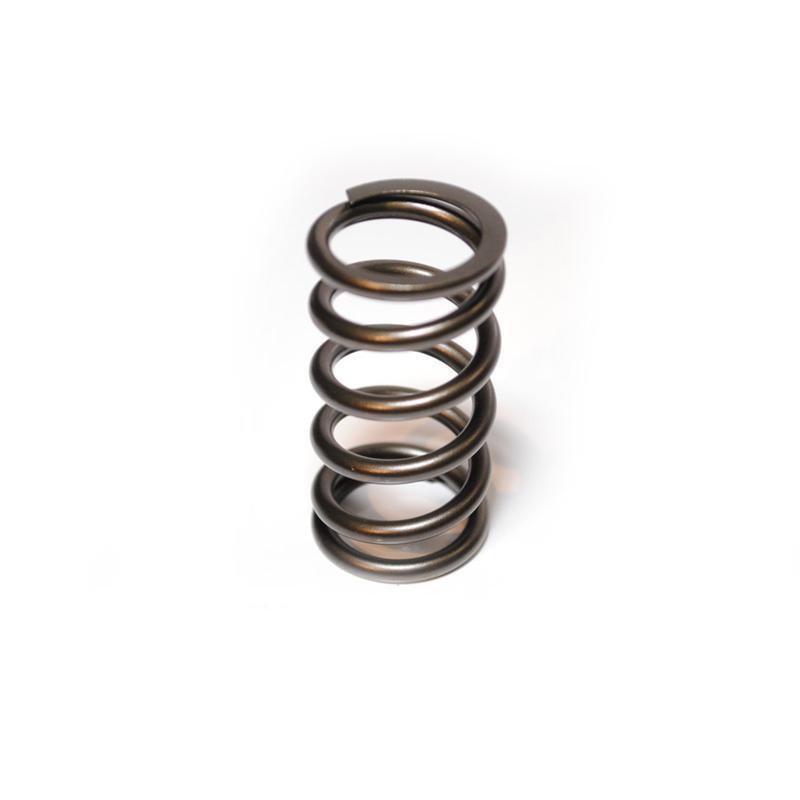

1998.5-2022 Cummins 103lb Valve Springs (07-S-003)

Hamilton Cams

Part Number: 07-S-003
Sale price$523.25 CAD
1998.5-2022 Cummins 103lb Valve Springs (07-S-003)-Valve Springs-Hamilton Cams-07-S-003-Dirty Diesel Customs

This product ships for free to most Canadian locations! Learn more

Quantity:

Fits

Year Make
Engine
1998.5-2022
Dodge Ram
5.9L/6.7L Cummins

Stock  24v springs have 78-82lbs of seat pressure at 1.380″. If you are over 35psi(boost or drive pressure), stock springs do not fully control the valvetrain. Intake and exhaust valves can be blown open by boost and exhaust drive pressure which allows reversion. Reversion can hurt your power potential by allowing exhaust gasses to enter the cylinder on the intake stroke. Inert gasses in the exhaust, when re-introduced into the cylinder shield the fuel particles from oxygen in the cylinder. This does a few things that negatively affect power. It increases the time delay from start of injection to start of combustion, it decreases the maximum pressure and maximum temperature reached in the cylinder and it increases the total time needed to completely burn the available fuel. Correct valve spring pressure is a very important piece of power production. Hamilton Springs solve this problem.

Nose pressure has been lowered from 220lb to 180lb recently. Watch out for other companies that have nose pressures over 250lb.

These springs are great to 4500 rpm. Over that the #110 springs are necessary. Over 4500 rpm with #103 springs you will see broken or cracked retainers due to float and harsh valve actuation.

Part Number: 07-S-003

QUESTIONS & ANSWERS

Ask a Question
  • Do these springs require a new retainer set or are your stock ones reusable and adequate to handle the 50 plus psi

    These springs do not include retainers, they are not needed, but they are a good upgrade if you'd like.  Please contact us for an upgraded retainer if interested.
