Cummins/Powerstroke 68" Traction Bar Kit ECLB/CCLB (WCF100855)

Fits

 Note: For Extended Cab Long Bed and Crew Cab Long Bed Models

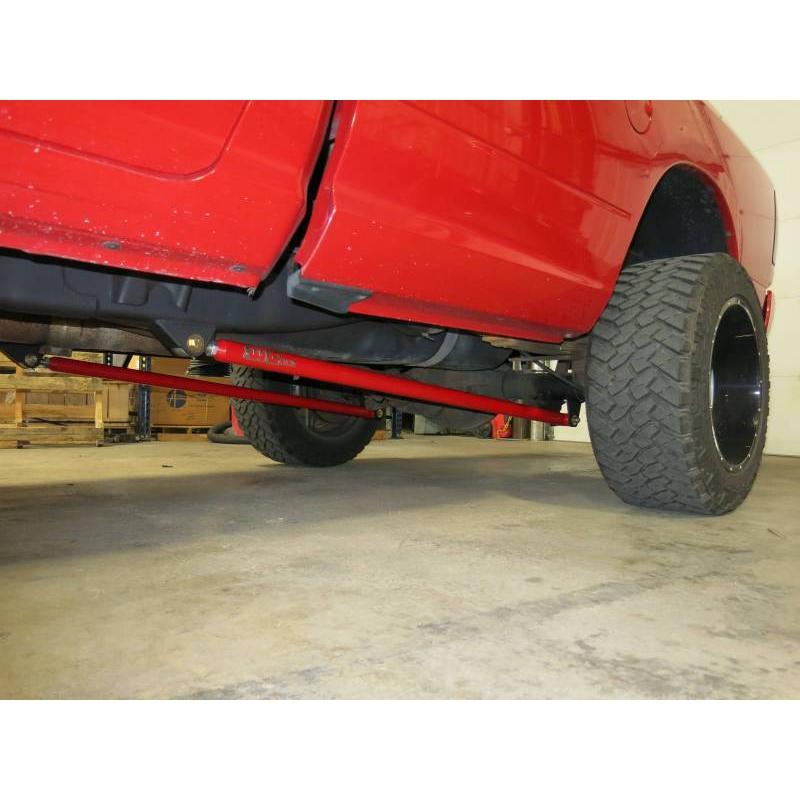

Traction bars are a necessary upgrade when increasing the horsepower on your diesel truck to prevent the axle from twisting which can lead to broken u-joints, driveshafts, and even twisted axle housings. Our traction bar brackets weld on to the bottom of the axle tube and weld to the frame on the front end. We use a high quality RockJock rebuild-able and grease-able “Johnny Joint” heim connection at the frame to allow for adjustment of torsion on the axle or if you raise/lower the rear of your truck. At the axle connection we use a heavy duty Poly Urethane Bushing for decreased noise and vibration which is common complaint if a solid heim is used on both ends. Grade 8 hardware connects the bars to the mounts on the frame and axle. We complete our traction bar kit with our professional in house powder coat process in your color choice and comes standard with a epoxy Primer base coat before the final color which increases corrosion resistance by more than ten times compared to just your standard powder single coat application.

• LIFETIME WARRANTY against bending or breaking (to the original purchaser)

• 60" Heavy Duty Bars

• Poly Bushings

• RockJock Johnny Joints

• Frame side weld on mounts

• Axle side bolt-on mounts

• Grade 8 Hardware

• Powder Coating with zinc primer base coat

• ***Not compatible with 2014-2022 Ram 2500 trucks equipped with rear coil springs / linked suspension setups***
• If you have regular cab long bed, extended cab short bed, or crew cab short bed truck use part number WCF100854
• If your truck is on a big lift, please measure from your axle mounting point to your frame mounting point to ensure the bar length will work properly for your application before placing your order
• If you have a lift kit and your rear lift blocks are 5" or your total lift height is 6" or greater use part number WCF100852.
• For 2011-2022 Ford F-250 and F-350 please see WCF100388 and WCF100399
