2001-2004 Duramax Allison 1000 NSBU Switch W/Connector Repair Kit (10499)

Fits

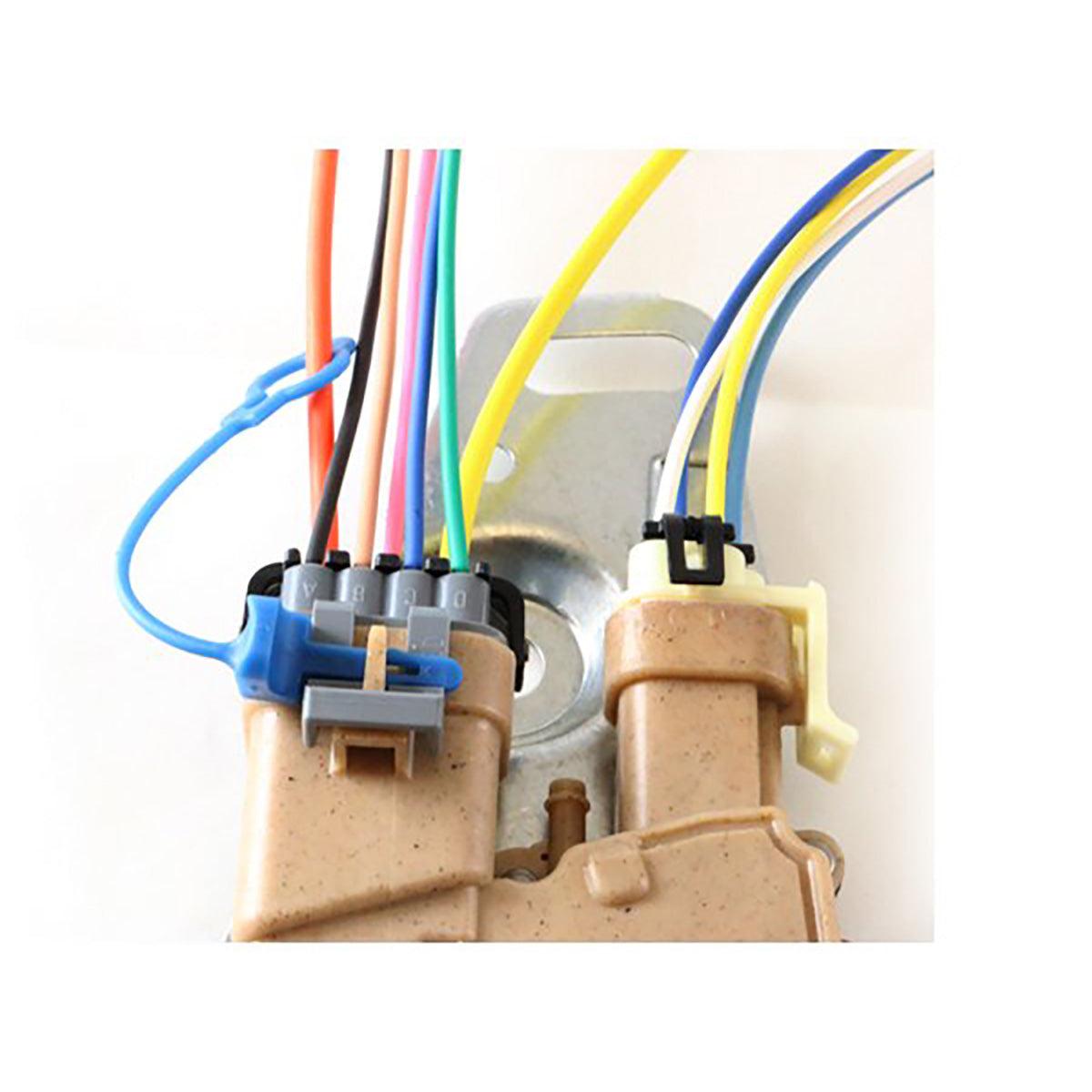

This kit is a breeze to install with its connector set and color-coded wires. It even comes with OE-style connectors and a generous 12" of lead.

One of the most common problems with the Allison transmission is the failure of the Neutral Safety Back-Up switch.

Part Number: 10499

• All-Inclusive Kit
• OE Style Connectors
• 12" of Lead
• Direct Fit

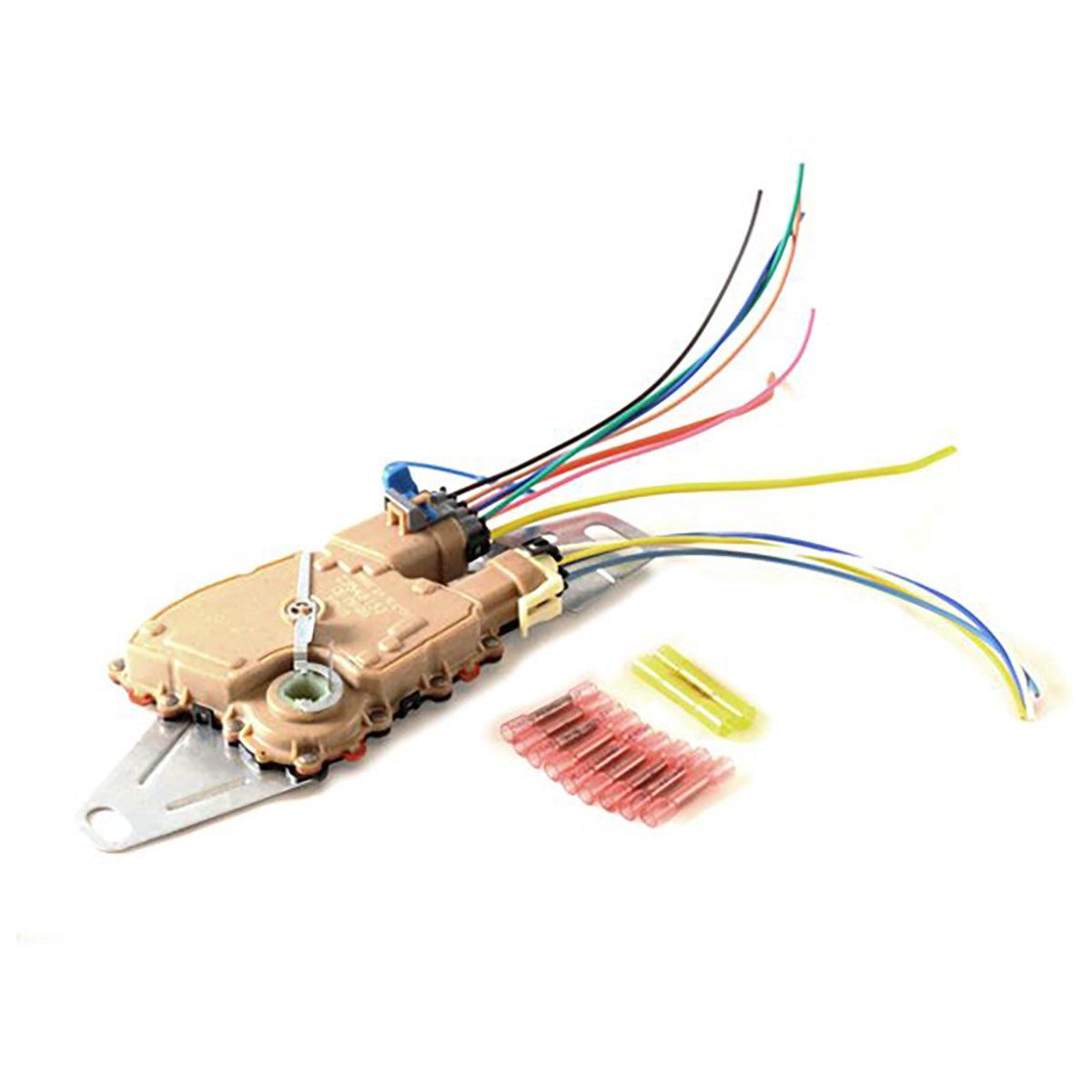

Includes:

• 1x NSBU Switch, LB7, 2001-2004 Allison 1000
• 1x NSBU Connector Repair Kit, LB7, 2001-2004

• This switch easily installs with just common hand tools.


• Click Here

Parts Only

• 2-Year Warranty

Some of the symptoms of failure include but are not limited to:

• No start condition
• Gear shift indicator on dash not following properly
• Trans stuck in limp mode or fail-safe
• DTC's set indicating pressure switch codes

How does it work and why does it cause my transmission not to shift?

The vehicle is equipped with a column type shift selector. In addition to the column shifter, another component associated with the shift selector is the Nuetral Safety Back Up (NSBU) switch mounted on the selector shaft of the transmission. The NSBU switch transmits selector position information to the TCM. The NSBU switch mounts directly onto the transmission housing, from the outside, and detects the angular position of the shift selector shaft. This position is communicated to the TCM so that certain vehicle control functions can be coordinated with the position of the shift controls. The neutral signal output of the NSBU switch is typically used as confirmation that the transmission is in NEUTRALor PARK before the engine starter is engaged.

Common trouble codes associated with NSBU failure include :

• DTC P0708, Neutral start/backup (PNP or NSBU) switch
• DTC P0847, Pressure Switch Manifold (PSM)
• DTC P0872, Pressure Switch Manifold (PSM)
• DTC P0875, Pressure Switch Manifold (PSM)
• DTC P1711, Pressure Switch Manifold (PSM)
• DTC P1713, Pressure Switch Manifold (PSM)
• DTC U1000, Serial Data Communications
• Blank PRNDL Display
• Flashing PRNDL Display
• Slow or No Engagement of Automatic Transmission
