2001-2007 Sequoia 2" SST Lift Kit (69-5010)

Fits

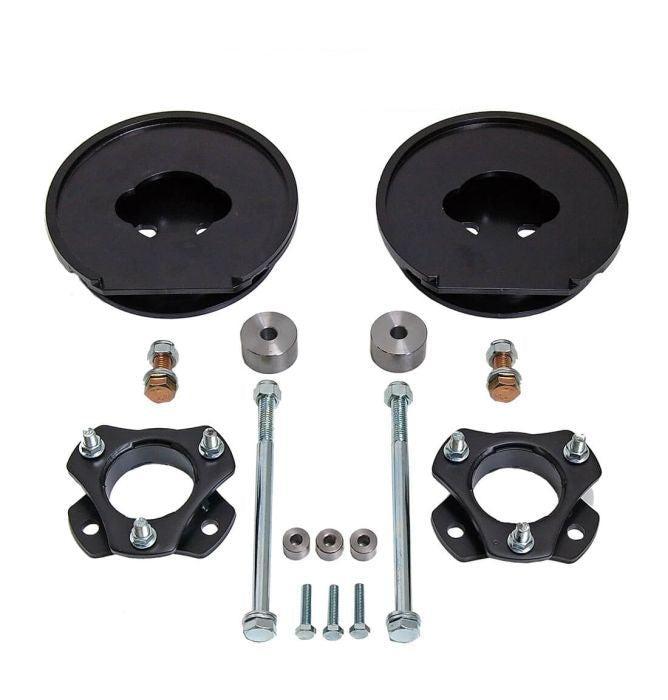

The SST strut extension and diff drop bracket have been designed to provide 2.5" of front suspension lift while retaining the OEM safe suspension geometry.  The rear spring spacer installs between the frame and rear spring to provide a slight rake, no cutting or spring pre-loading and easy to install.

Part Number: 69-5010

• Retains factory ride
• Powder coated steel strut extensions
• Front differential drop spacers
• Skid plate spacers
• Special-designed rear spring lift spacers

Tire Fitment:

• 33" Maximum tire diameter
• 33x11.50 for no rub on a 9" wide wheel with 0 offset
• 18" - 295/65R18
• 20" - 285/60R20
• 22" - 285/50R22

• Rear spacer is only compatible with one of three Toyota Sequoia rear suspension designs. This spacer is intended to bolt to the frame.
•  Frame variations cannot be identified by trim level or model year – please inspect the rear frame for a top spacer bolt hole provision before installing this kit.

Click here to view installation instructions
