2001-2016 Duramax Pistons (PDM-360SXX)

Fits

Forged Pistons - PDM's Ceramic Piston Skirt Coating, is designed to be used, on any rigid or semi-rigid surface experiencing sliding, rotating or oscillating friction. This coating will carry loads in excess of 350,000 PSI as well as lubricate at temperatures in excess of 1600f.

Coated Chamfered & De-Lipped Piston Kit - Duramax Standard Size Performance Cast Pistons Set Coated Tops and Skirts Deliped Set ( No Valve Relief ) PDM's Ceramic Piston Skirt Coating, is designed to be used, on any rigid or semi-rigid surface experiencing sliding, rotating or oscillating friction.

Cast Fly Cut Coated Chamfered & De-Lipped Piston Kit - Duramax Standard Size Race Fly Cut Cast Pistons Set Coated Tops and Skirts Delipped Set. PDM's Ceramic Piston Skirt Coating is designed to be used, on any rigid or semi-rigid surface experiencing sliding, rotating or oscillating friction.

Skirt and Top Coating: PDM’s Ceramic Piston Skirt Coating, is designed to be used, on any rigid or semi-rigid surface experiencing sliding, rotating or oscillating friction. This coating will carry loads in excess of 350,000 PSI as well as lubricate at temperatures in excess of 1600f. This coating combines the durability of a ceramic resin with the lubricity of the ceramic lubricant. It is used in applications where high temperatures, high loads and high speeds are experienced. When higher temperatures, than most other types of coatings can provide protection, are experienced, this coating is fully capable of carrying the load. Gray in color it acquires a glass-like finish in use. Cured film thickness of “.001” or less requires no change is piston clearance.

PDM’s Thermal Barrier Coating for piston tops is designed for performance engines running; Nitrous oxide, supercharged or turbocharged. It creates a hard surface specifically designed for engines running high volumes of fuel and/or high compression ratios. The thermal barrier coating reduces part temperature, keeps heat in the combustion chamber longer through the power stroke, increases torque, H.P. and improved combustion chamber efficiency.

Fly Cut (valve relief): .100

Flycuting is a machining process used to add piston to valve clearance when using high lift camshaft.

Chamfering: Performance Cummins pistons are chamfered (The top is tapered to help avoid swelling and scuffing the cylinder wall.)

Part Number: PDM-360SXX

• Drop-In Replacement

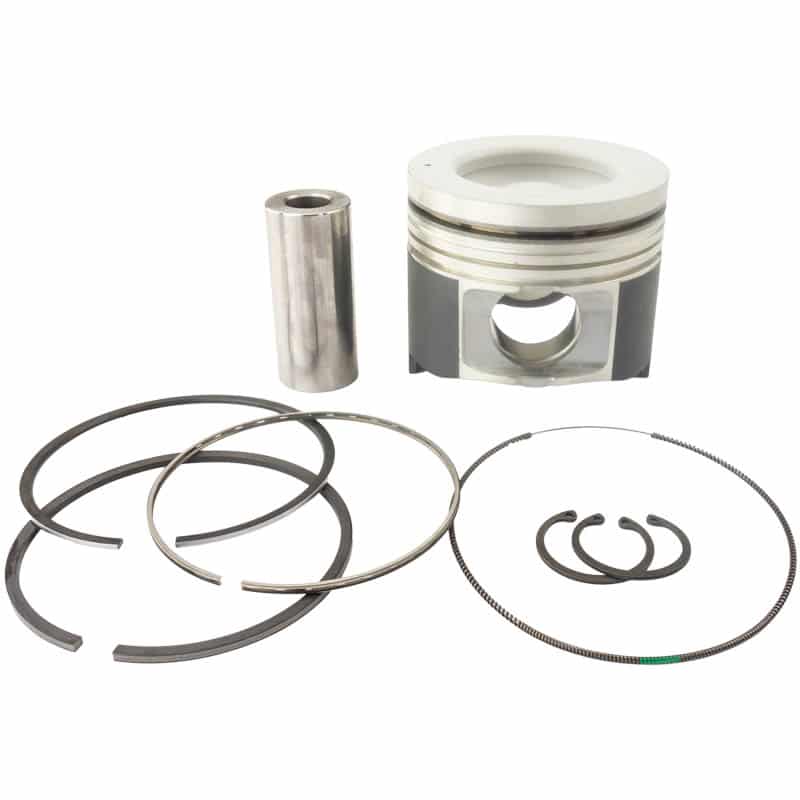

• Complete w/ Rings, Wrist Pins & Clips
• De-Lipped Piston Bowls
• Standard Size
• Fly Cut w/ .100 Valve Reliefs Available
• Thermal Barrier Coating For Piston Tops
• Ceramic Piston Skirt Coating
