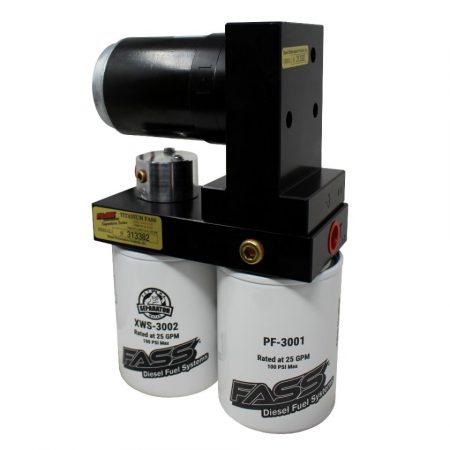

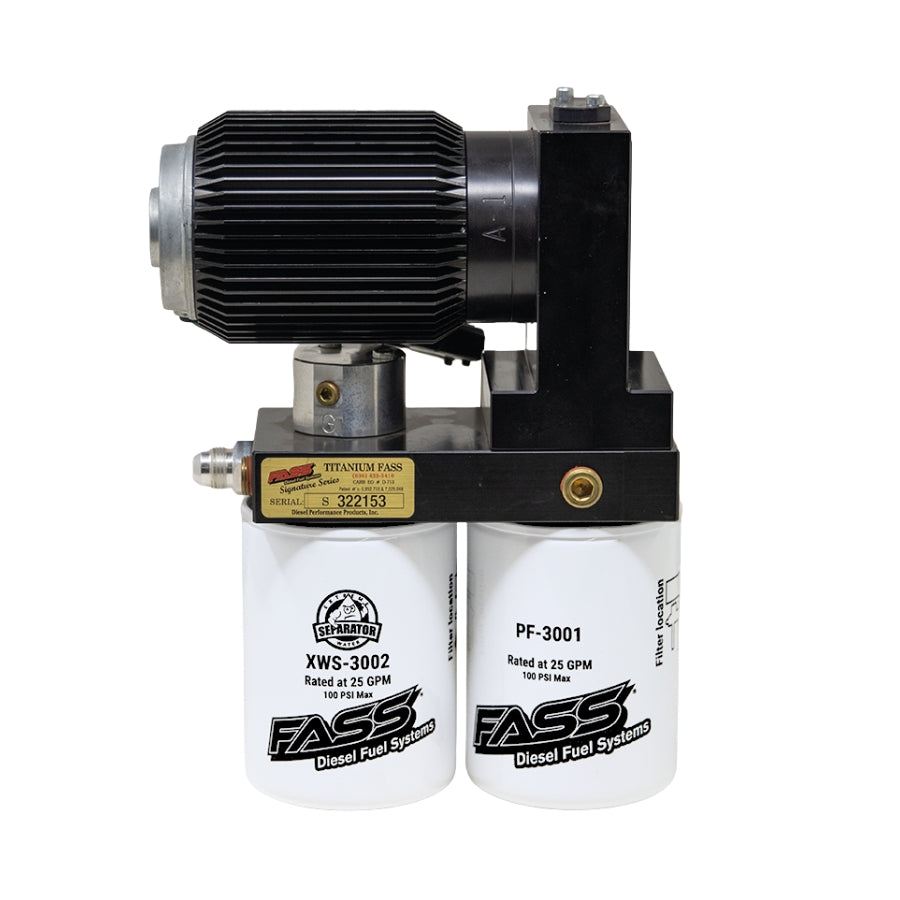

2001-2016 Duramax Titanium Signature Series Plus 250GPH Lift Pump (TSPC10250G)

Fits

Power Rating: 900-1200HP

Flow Rating: 250PH

Filtration Rating: 2 Micron

Filter Life Expectancy: 30,000 Mile

The Titanium Signature Series Plus is the next evolution of the popular Fass Titanium Signature Series Fuel System. Titanium Signature Series Plus Fuel Systems lead the diesel industry in both quality and effectiveness. This Fuel System was engineered by FASS to be the top-performing, longest-lasting, and most reliable aftermarket filtration system in the diesel industry.

Part Number: TSPC10250G

• Limited Lifetime Warranty
• 1,000,000 Mile Motor

• New Whisper Technology
• Complete Replacement System

• Removes Water, Air and Debris from Diesel Fuel

• Protects and Extends the Life of Your Injectors
• Improved Cold Weather Starts
• Decreases Carbon Monoxide & Carbon Dioxide Emissions
• ½ Inch Fuel Lines and Ports
• Fuel Mileage Improvement
• Improved Fuel Volume Delivery
• Smoother Engine Idle
• Optional Electric Heater Ports
• Optional Fuel Pressure Gauge Port
• Quietest Motor on the Market

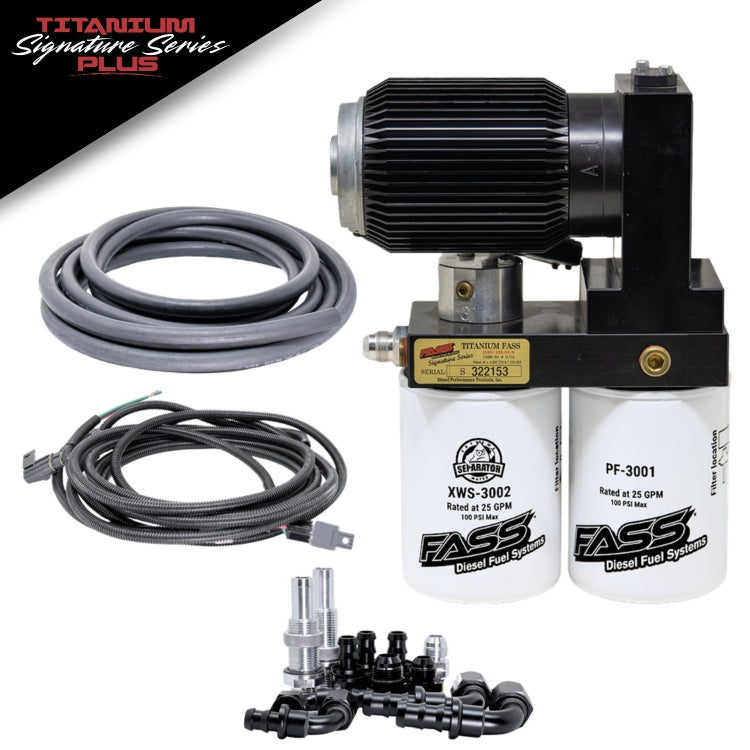

Includes:

• Titanium Signature Series PLUS Fuel System
• ORB (O-Ring Boss) Fittings
• 6061 aluminum black anodized fittings
• Black fuel line


• Click Here

Parts Only

• Limited Lifetime Warranty

• Installation of this kit on a cab and chassis may require modification.

• FASS Whisper Technology (FWT) effectively and drastically reduces the sound levels of the Signature Series Plus FASS Diesel Fuel System to a “whisper” while at the same time increasing fuel flow rates. Our competition reduces noise levels by reducing flow rates.
• Performance Radius Cuts (PRC) are an advanced machining technique used to improve the flow of fuel through the FASS System by creating smooth-flowing cuts within the aluminum housing. This prevents the reintroduction of air and vapor back into the fuel and prevents eddy currents from forming within the corner of a 90° sharp angle. FASS Titanium Signature Fuel Systems are the only Fuel Air Separation System that incorporates these exclusive Performance Radius Cuts, lesser competitors commonly use T-Bone and square 90° fittings that can limit fuel flow, cause restrictions and reintroduce air back into your fuel.
• Mass Flow Return (MFR) technology is used to continually polish your fuel by keeping a positive pressure on the fuel being delivered to the engine to prevent cavitation along with galling and scoring. Then returning the fuel, that’s not yet needed, back to the tank after it has been passed through the filtration process, removing dirt, air, vapor and water. This means your fuel is being constantly “Polished” (cleaned), guaranteeing that your diesel truck always has the cleanest fuel possible. The MFR in combination with the optional FASS Fuel Heater options will help ensure “EXTREME” cold weather operations!
• Bolt On Bracket Mounts old mounting styles required drilling or welding when mounting your new System. This has now been simplified with our new bolt-on brackets that utilize your factory bed bolt, the bolt that secures your truck bed to your frame. Mounting your Titanium Signature Series Plus System takes only minutes, and all brackets are made from machined steel for superior support and strength.
