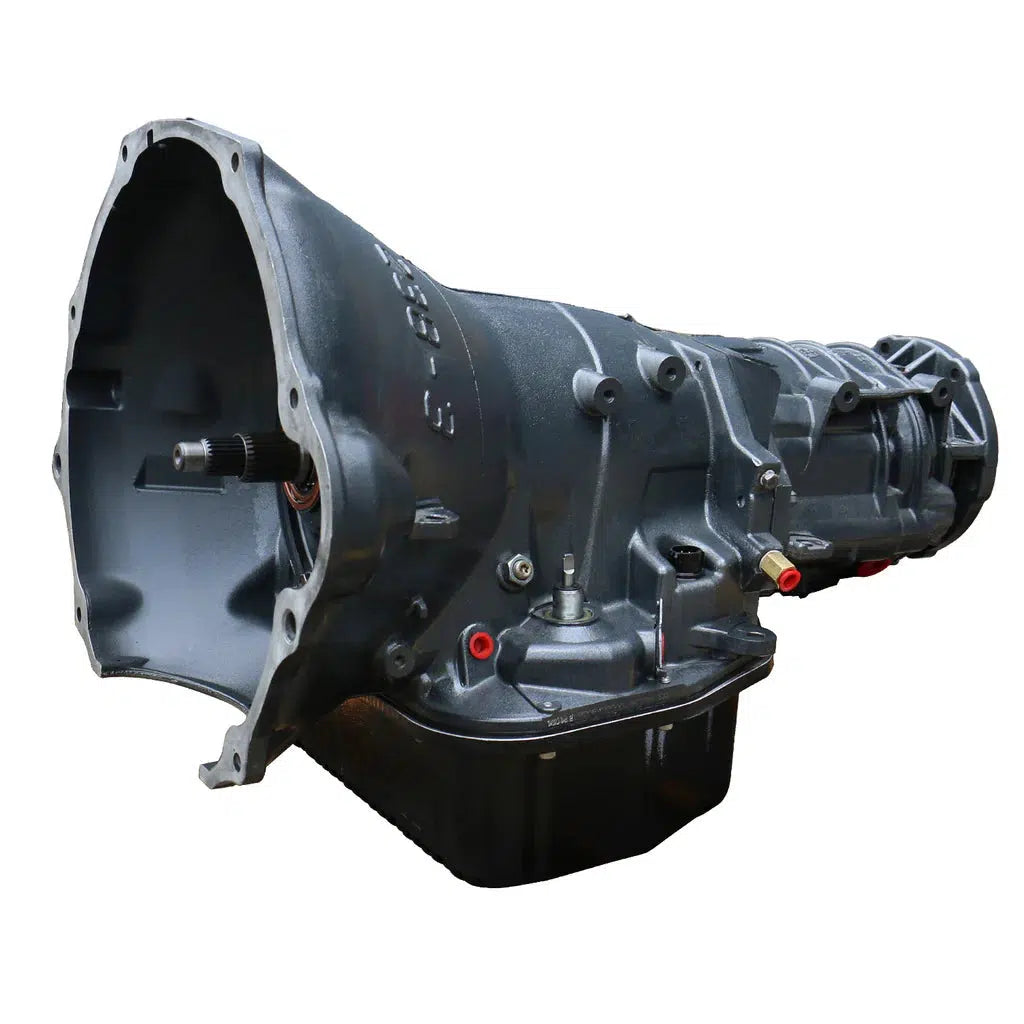

2003-2004 Cummins Torquemaster 48RE Transmission W/ Auxiliary Filter Kit & Billet Input Package (4WD) (1064194BF)

Fits

Enhance your drivetrain's durability with a BD transmission. It's got BD's heavy duty transmission pan, and includes a bonus auxiliary transmission filter kit for added protection! Plus, it comes with a tough Billet Input Shaft to handle high acceleration and torque. An ideal pairing for those rocking the ProForce 3 or Hi5 torque converter.

Part Number: 1064194BF

• Increase the durability of your drivetrain
• Stock thrust bushings replaced with roller Torrington bearings
• Every transmission is tested on a dyno
• Upgraded Valvebody
• Increased line pressure to 190-200psi
• No shuttle shifting problems
• Drilled intermediate shaft for increased lubrication
• Modified manual valve for lube in all positions
• Billet band strut
• Billet band lever
• Billet Input Shaft to take the "snap" from rapid throttle and high horsepower
• Billet "Big" fine spline input shaft
• Clutch Count: OD 6
• Clutch Count: OD DIRECT 10
• Clutch Count: FORWARD 5
• Clutch Count: DIRECT 6
• High temp/energy Raybestos band
• Upgraded governor pressure transducer (47RE/48RE) - Twice the burst pressure than stock
• Upgraded governor solenoid
• Cooler line case saver in every transmission

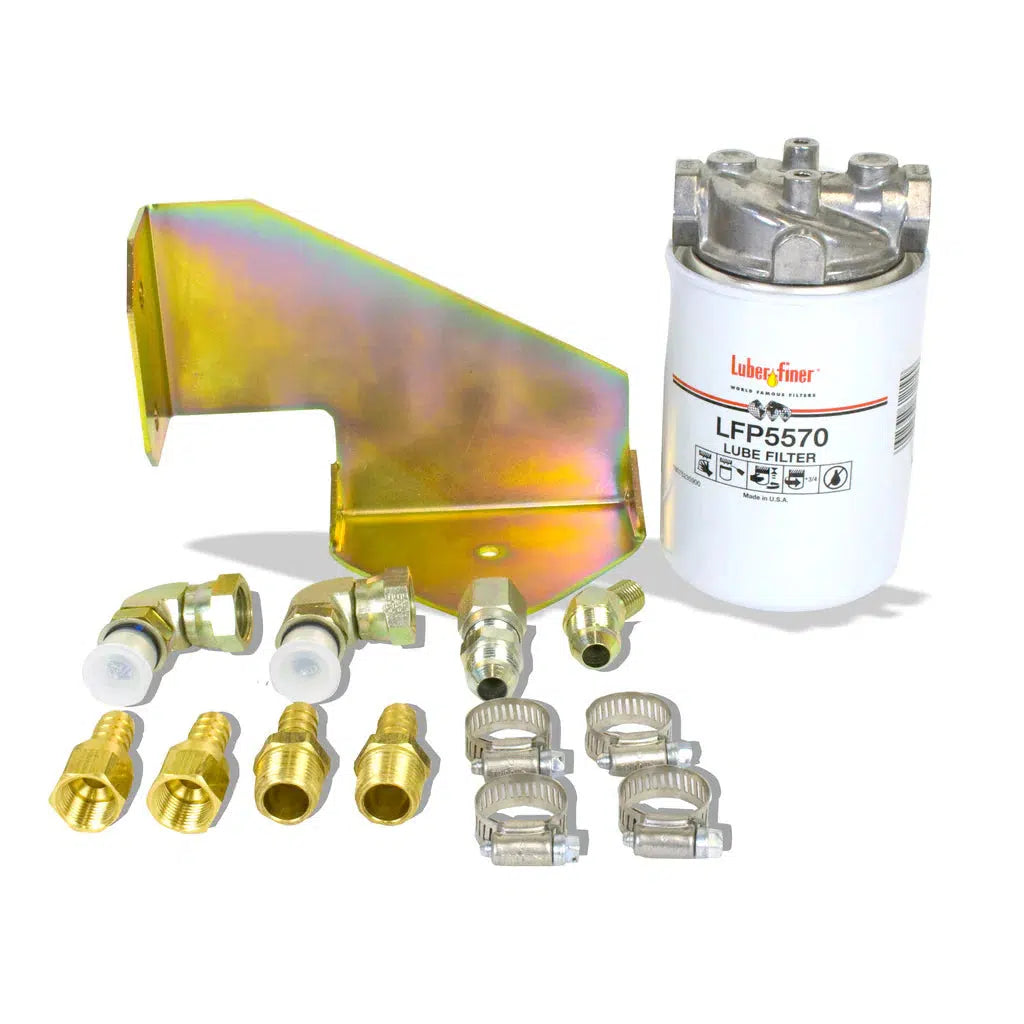

• BD auxiliary full flow filter kit for extra protection
• BD rigid aluminum heavy duty transmission pan
• Pan heat-dissipating fins keep temperature down
• Magnetic drain plug
• Pan adds 2qt extra oil capacity


• 8 Hours
• Install Click Here
• Auxiliary Filter Kit Click Here

Parts Only - No Race or Sled Pull abuse is covered.

• 36 Months
• 150,000 Miles
• Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet.
• BD torque converter must be installed at the time of installation of the transmission - use of a 3rd party or OE converter will invalidate the transmission warranty.
