2003-2007 Powerstroke Non-VGT T4 S300 Kit w/ Turbocharger

Fits

All Smeding Diesel Parts are Built To Order in Texas and are special order which can take longer than normal for fulfillment. If you're in a rush, contact us and we can make special arrangements.

Smeding Diesel Non-VGT T4 S300 Kit for 2003-07 Ford 6.0L Powerstroke with turbo

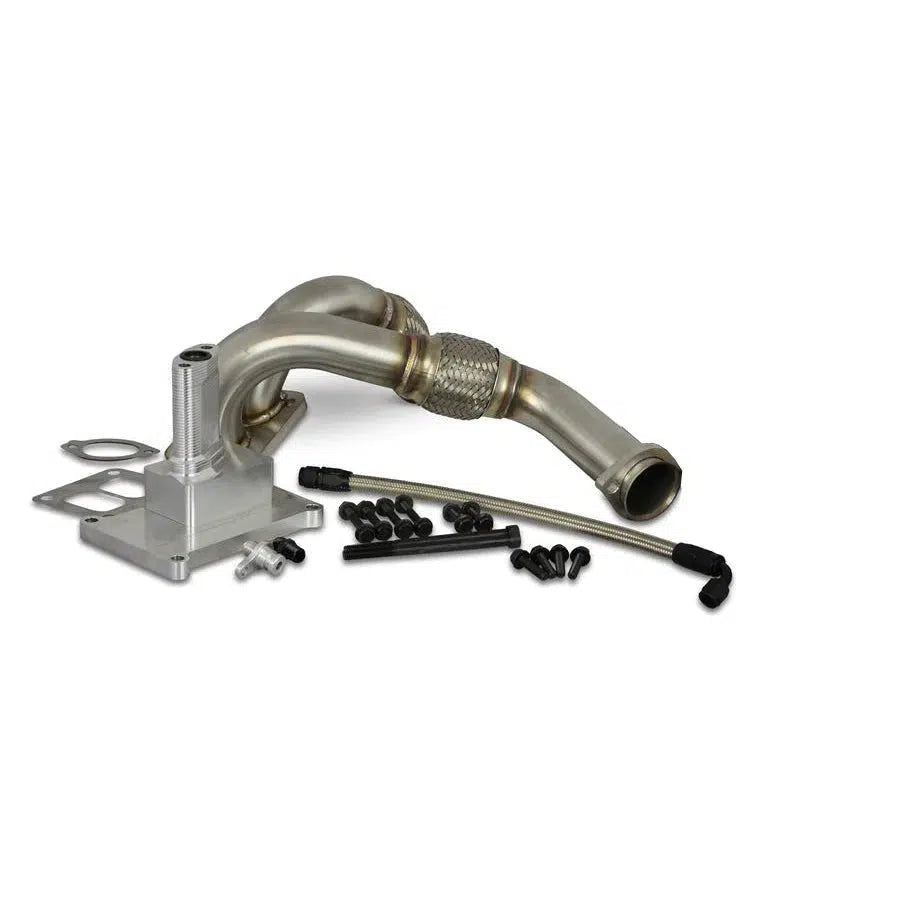

This kit includes everything you need to properly install your Smeding Diesel S300 turbocharger on the 2003-2007 Ford 6.0L Powerstroke

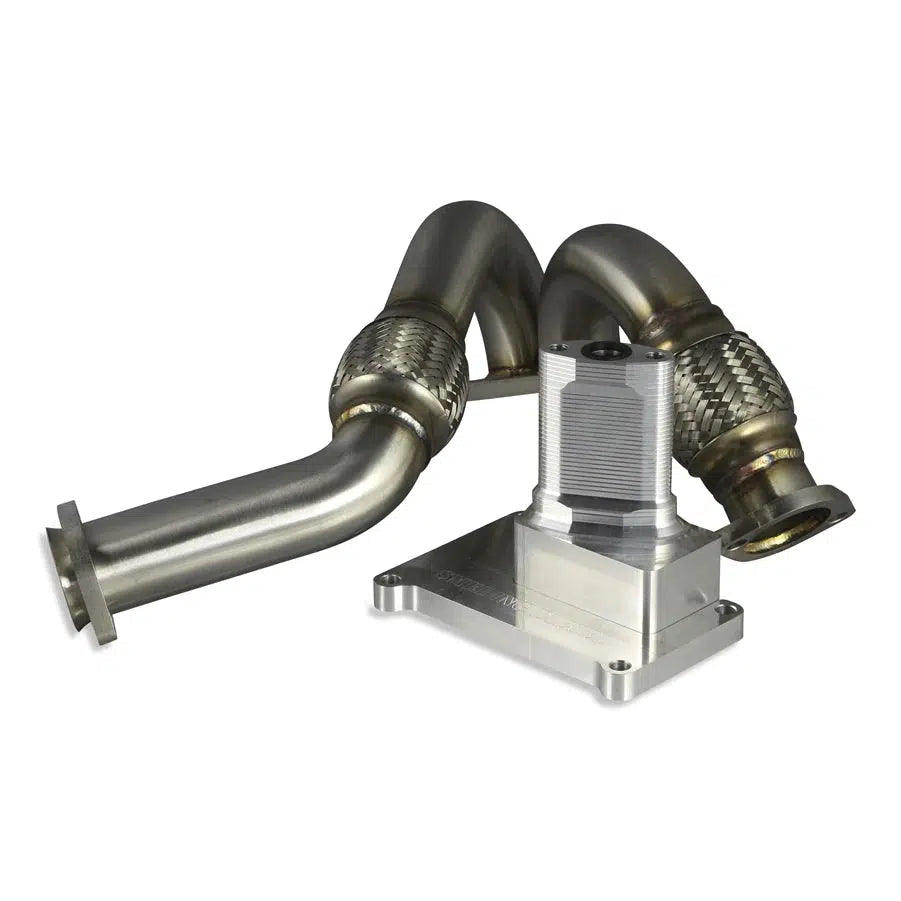

• Heavy-duty T304 Stainless Up Pipes with high flow T4 flange

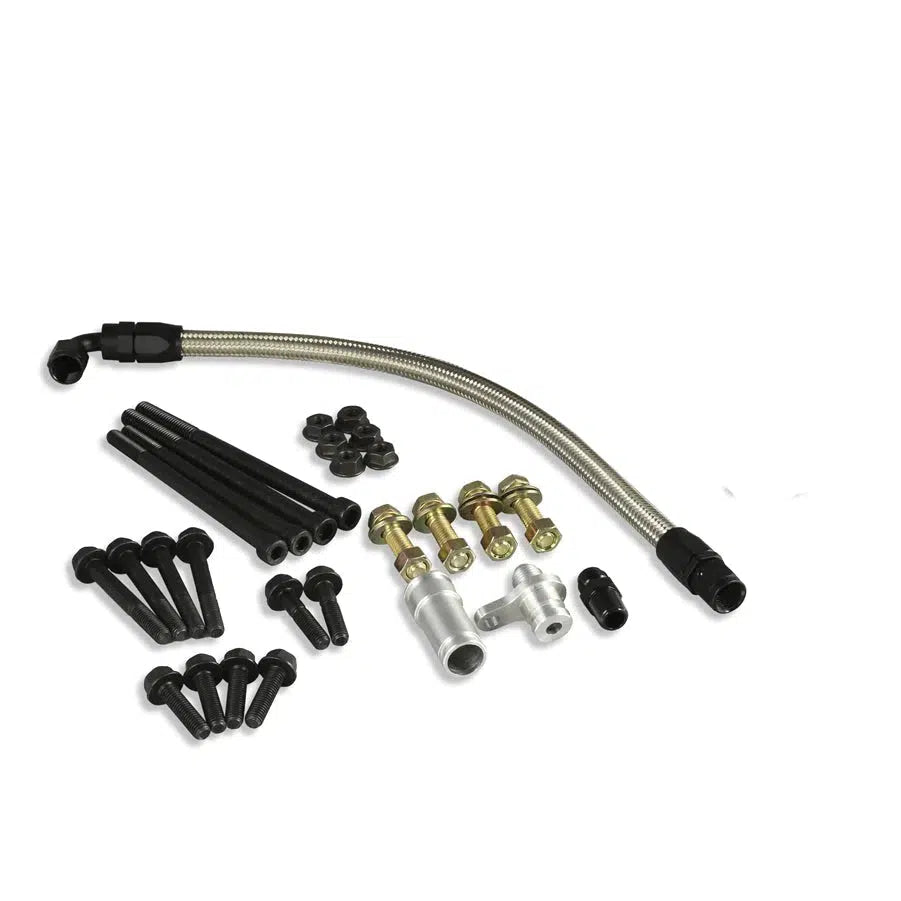

• -6 oil feed line and -6 fittings
• billet 6061 aluminum pedestal with built-in oil drain
• Installation hardware

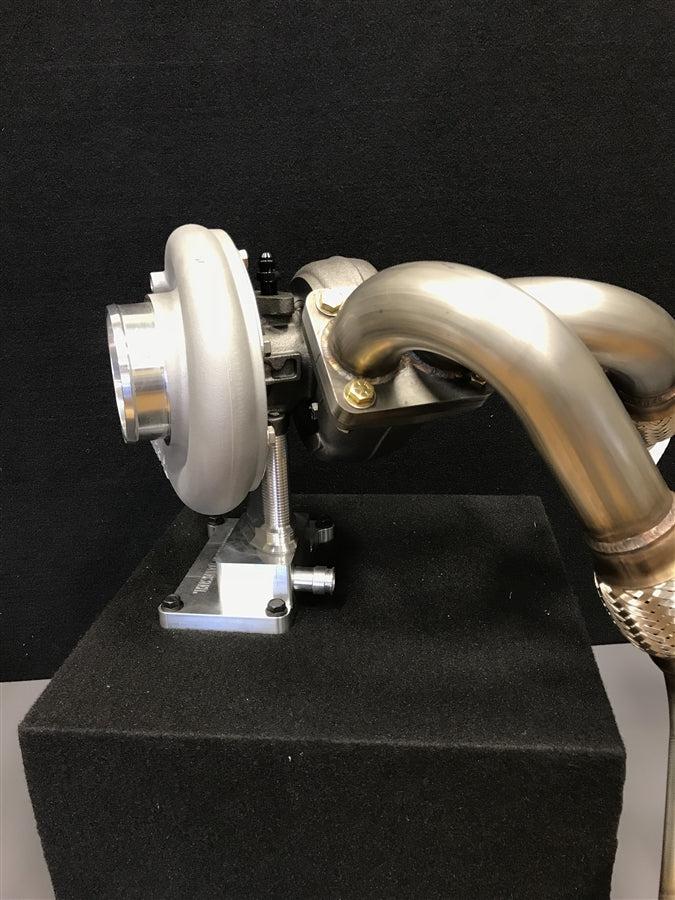

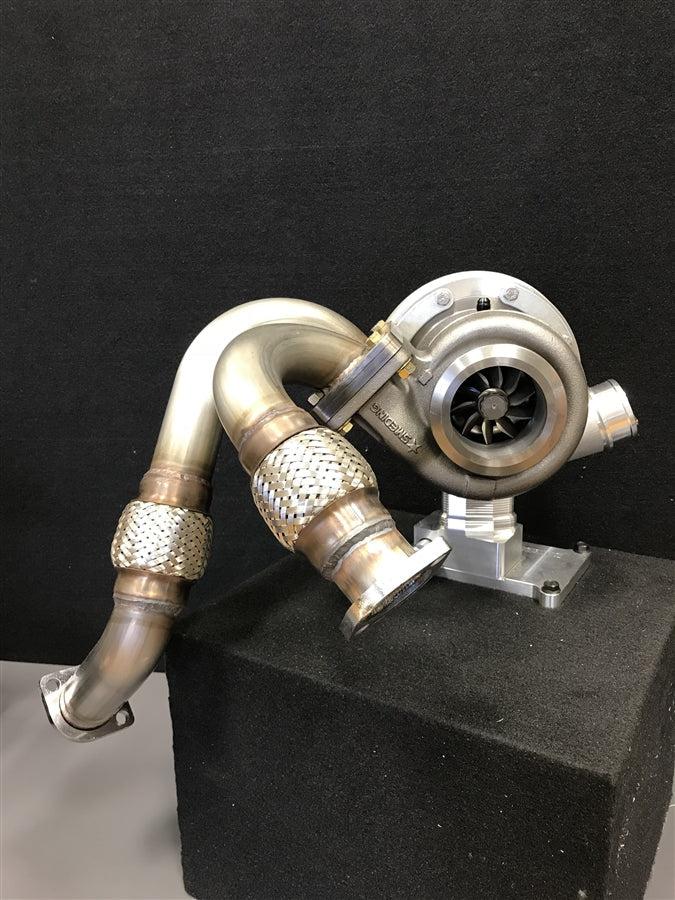

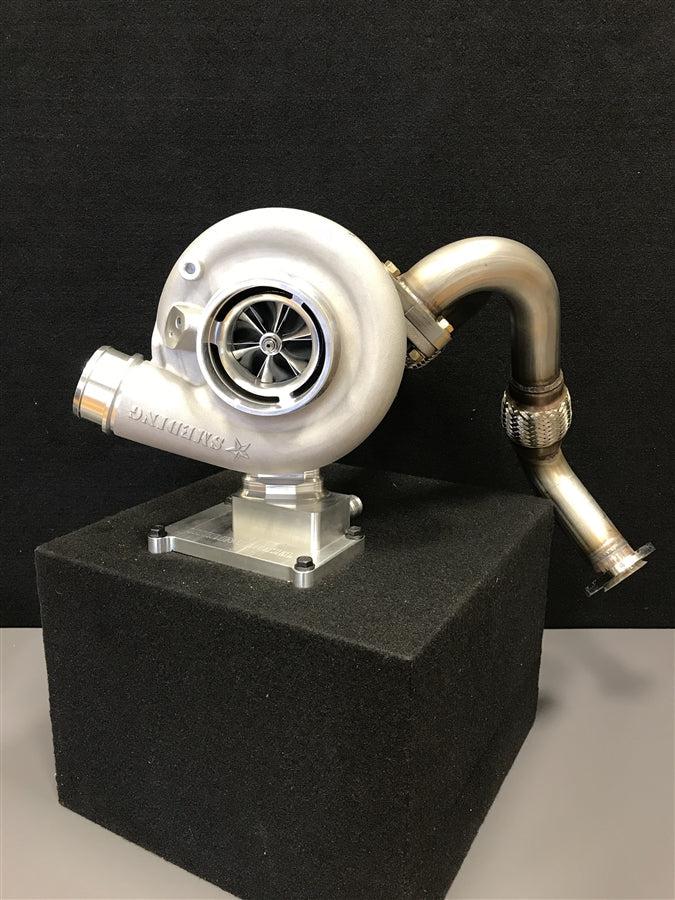

• Your choice of hand-built Smeding turbocharger

When you go from cast to billet, you get a lighter wheel. A lighter wheel means there is less rotational mass on the shaft, therefore you have a faster spool up. Peak horsepower will stay the same but you will gain a little bit better driveability.

The SXE-R (competition or race series wheel) is similar in the fact that it is even lighter than the standard billet, but it also has other geometrical differences. The hub itself is smaller, so although you have the same outside to outside diameter, you have a wider blade which means you have more surface area on the blade to move more air. The blades are also arched to provide more surface area as well. The nut on the wheel is also integrated into the wheel, as opposed to using a steel nut on the rest of the wheels. All of these differences provide a faster spooling wheel that pushes more air.

• If running a regulated return, it must be a hard line on the back of the head.
• You will need to run a full EGR-Upgrade Kit in order to run this Smeding kit. Click here to view EGR Upgrade
• This kit also requires the truck to have a two-piece downpipe.

• RACE/High Performance Street: S366/74/.91 600-640HP 190cc - 225cc Injectors recommended
• Mild Tow / Street: S362/68/.91 Cast 500-600hp - 155-190cc Injectors Recommended
• TOW/STREET: S360/68/.91 450-550HP Stock – 175cc Injectors recommended
