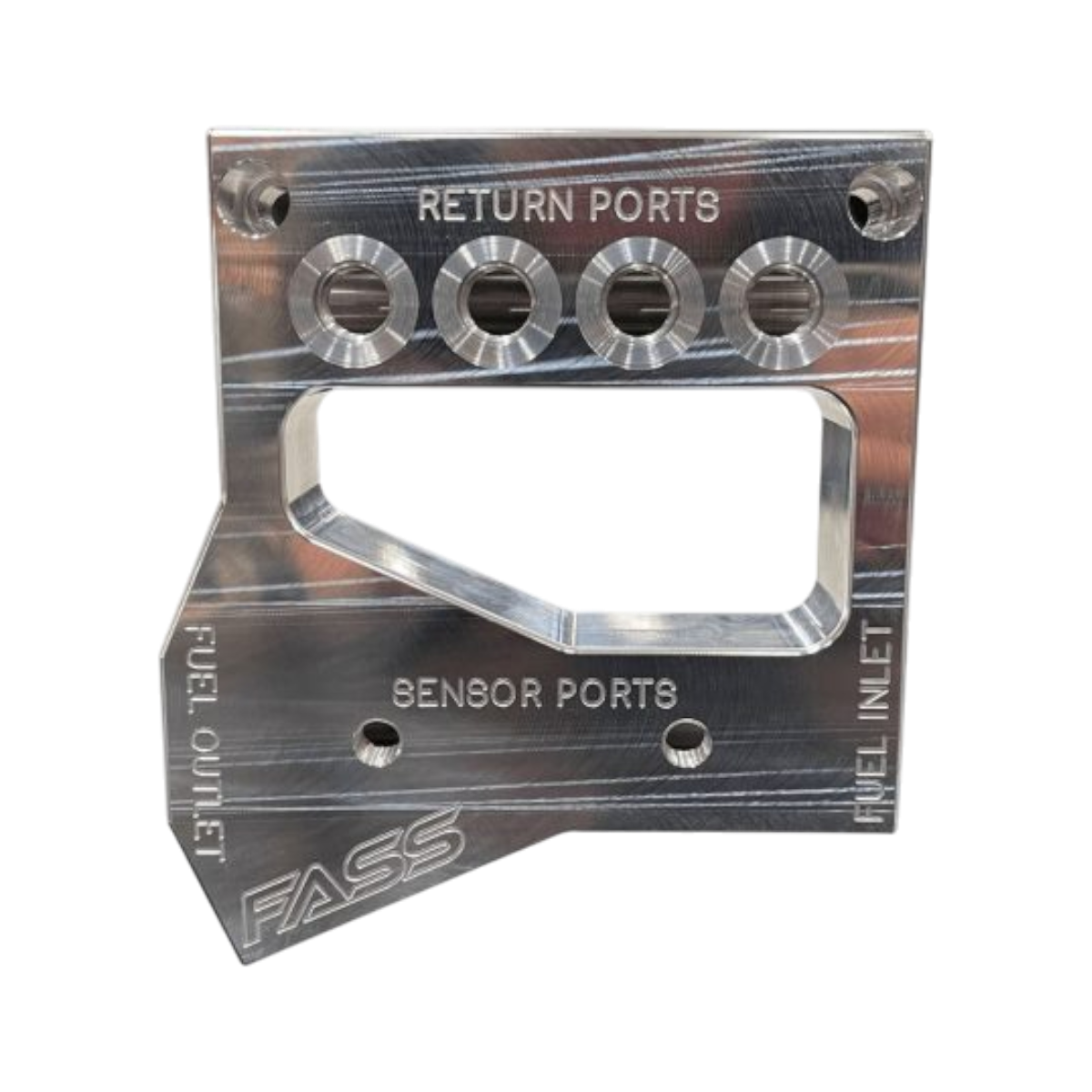

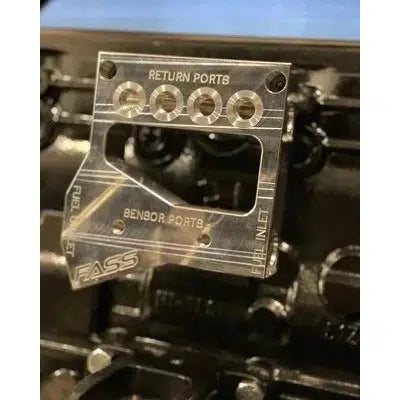

2003-2022 Cummins Fuel Distribution Block (CFDB1001K)

Fits

Designed specifically for high-performance applications equipped with up 3 CP3 pumps, but can also be used on single or dual CP3 applications. This block ensures you get smooth flow and equal distribution of fuel pressure & flow.

Part Number: CFDB1001K

• -10 Main Fuel Inlet
• 3 -8 CP3 Feed Ports
• -8 Fuel Return Outlet
• 2 -6 Fuel Return Inlet Ports for CP3 Return and Cylinder Head Return
• 2 1/8” NPT Gauge Ports
• Comes with Mounting Hardware

• Cannot be used with the factory metal fuel rail return line or cylinder head return line and will need to be plumbed with a braided fuel line or FASS Push-Lok fuel line.
