2005-2016 Powerstroke Stage 3 Leveling Kit w/ Bilstein Shocks (KRFD05STAGE3BIL)

Fits

This Stage 3 Leveling Kit is just what you need if you're looking for a comprehensive suspension upgrade on your Powerstroke! This complete kit includes everything you need to give the front of your truck an extra 2.5" ride height increase while maintaining adequate droop travel for premium ride quality.

Alignment adjustability was kept in mind with the design of this arm. Utilizing an exclusive Hexagon Caster Eccentric allows you to make fixed 2° incremental changes in 5 different positions. This means that at any ride height from 0" up to 6" you'll be able to dial in Caster exactly where you need it. The best part is, no worrying about losing your adjustments over time or with rough driving. The Hex shape of this Caster Eccentric will lock your alignment adjustment into place.

Part Number: KRFD05STAGE3BIL

• Provides 2.5" of front lift
• Allows for up to a 35"x12.5" Tire on a 9" wide wheel w/ 4.5" Backspacing
• Compatible with Larger wheels/tire with minor trimming
• Durable Black Finish
• Grade 10.9 Hardware
• Precision CAD Engineering
• Billet Aluminum Spacer
• Direct bolt on Install
• Made in the USA

Includes:

• Bilstein 5100 Series Extended Length shocks (4)

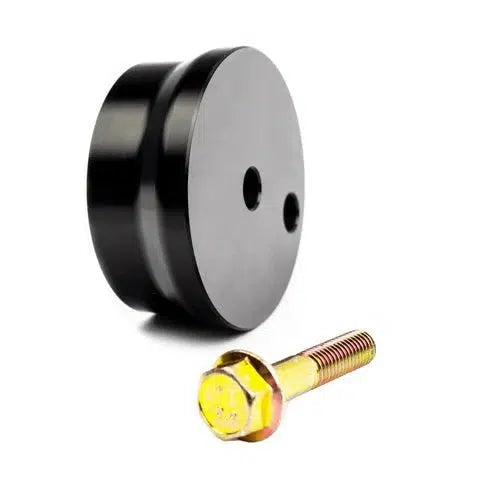

• Bump Stop Spacer Kit

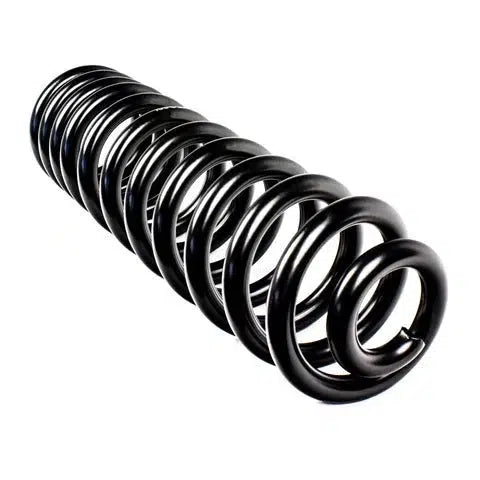

• 2.5" Leveling Coils
• Caster Correction Shims

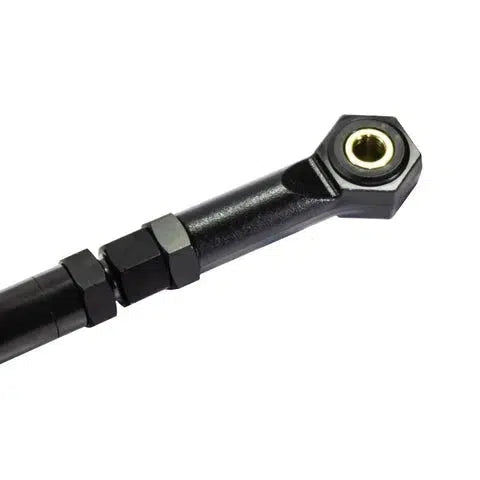

• Kryptonite Adjustable Track Bar - KRFTB11

• This kit will allow you to upgrade to a 35"x12.5 Tire with little to no trimming. *Or a 37" with additional fender and front bumper clearance required.
