2005-2007 Cummins Towmaster 48RE Transmission W/ TVV Stepper Motor & Tapshifter (4WD) (1064234FT)

Fits

This transmission comes with a new gear lever, gear selection display, and control module, fingertip shifting has never been easier. Upgrade to the 48RE Tapshifter for full electronic gear selection, torque converter lock-up control, gear limiting function, and manual gear mode. Don't push your stock transmission to the limit - choose BD for added durability and peace of mind. Plus, all of BD's transmissions come with a heavy-duty pan and most come with an auxiliary transmission filter kit for even more protection.

Part Number: 1064234FT

• Increase the durability of your drivetrain
• Provides manual torque converter lock-up clutch control
• Works with stock shifting and has gear limiting function
• Sealed plug-in wiring, no cutting or tapping of wires required

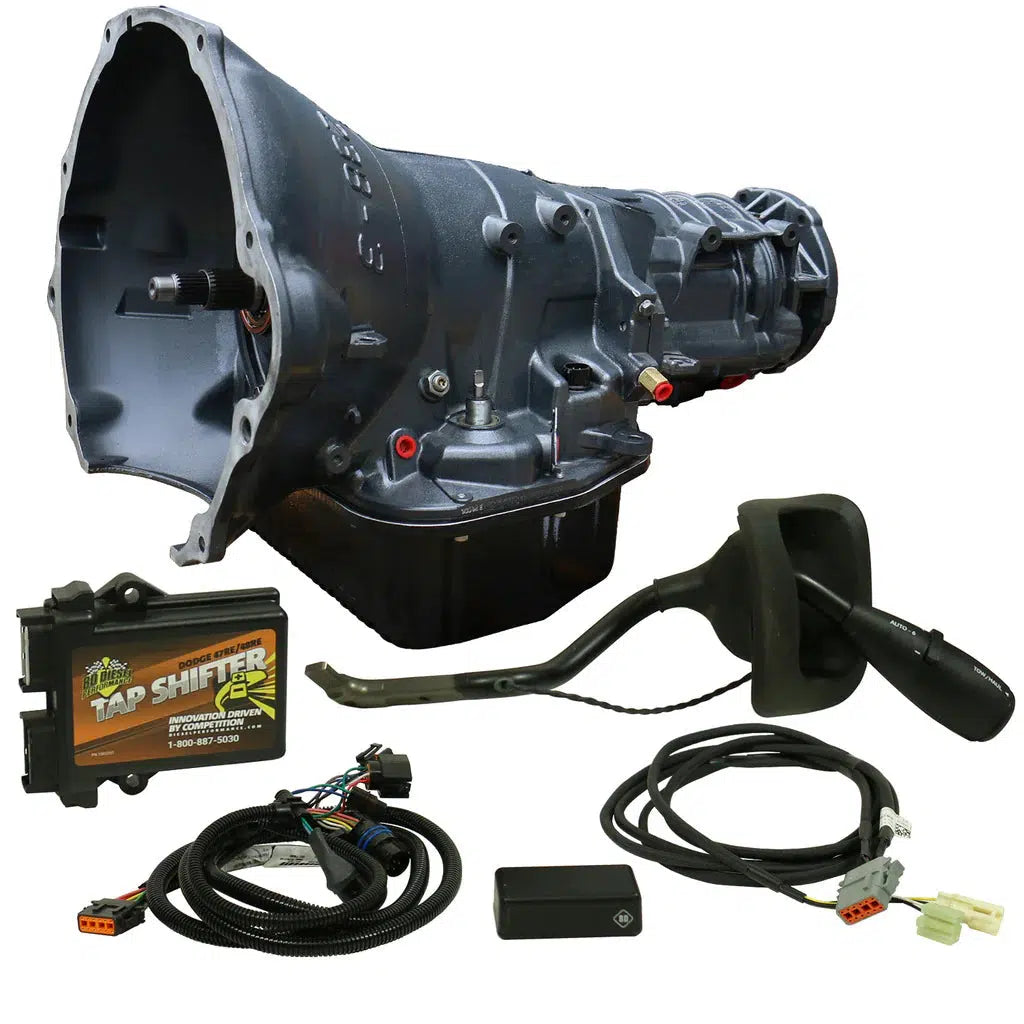

• Includes new model shift lever, BD control module, BD gear selection display and wiring harness
• Stock thrust bushings replaced with roller Torrington bearings
• Every transmission is tested on a dyno
• Upgraded Valvebody
• Increased line pressure to 190-200psi
• No shuttle shifting problems
• Drilled intermediate shaft for increased lubrication
• Modified manual valve for lube in all positions
• Billet band strut
• Billet band lever
• Clutch Count: OD 6
• Clutch Count: OD DIRECT 10
• Clutch Count: FORWARD 5
• Clutch Count: DIRECT 6
• High temp/energy Raybestos band
• Upgraded governor pressure transducer (47RE/48RE) - Twice the burst pressure than stock
• Upgraded governor solenoid
• Cooler line case saver in every transmission

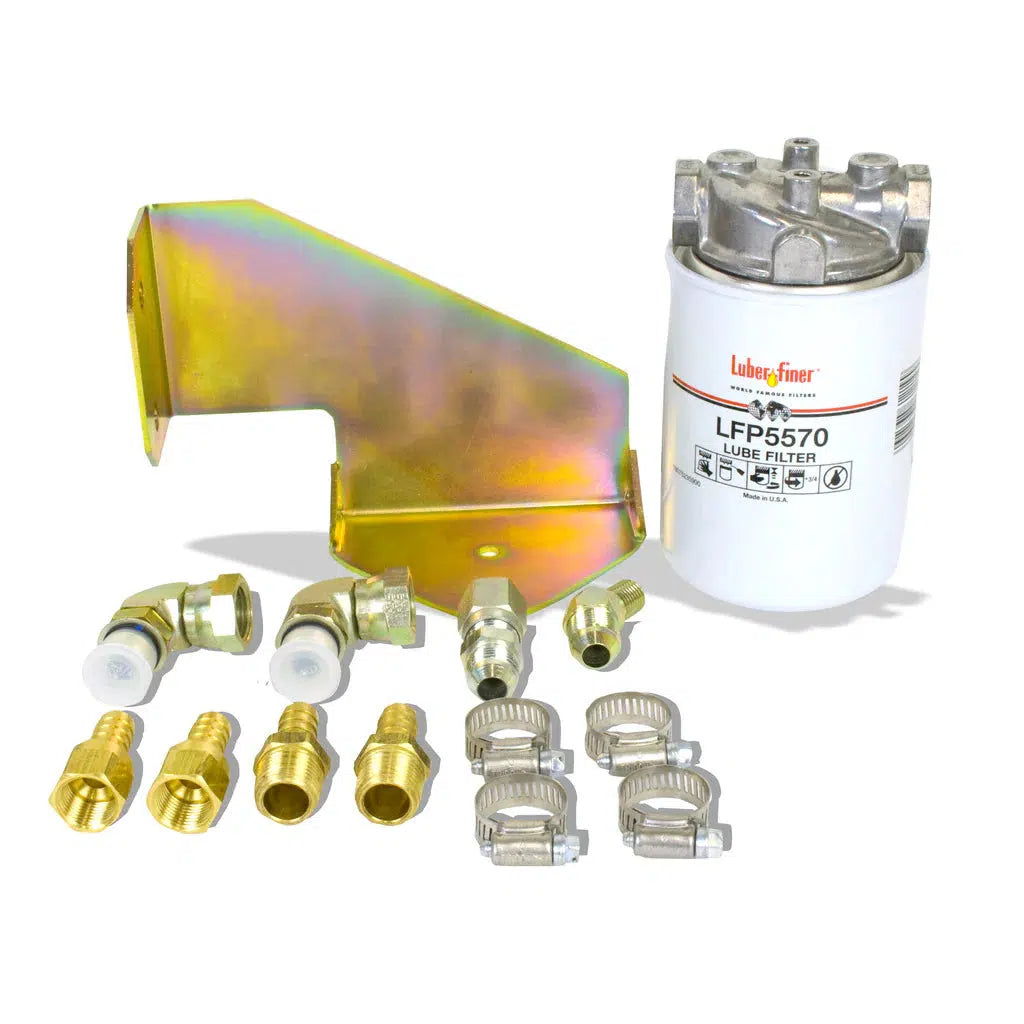

• BD auxiliary full flow filter kit for extra protection
• BD rigid aluminum heavy duty transmission pan
• Pan heat-dissipating fins keep temperature down
• Magnetic drain plug
• Pan adds 2qt extra oil capacity


• 7.5 Hours (Includes swapping of sensors and cooler flush)
• Install - Click Here
• Auxiliary Filter Kit - Click Here
• 48RE Tap Shifter - Click Here
• Tapshifter Custom Map Editor - Click Here

Parts Only - No Race or Sled Pull abuse covered.

• 36 Months
• 150,000 Miles
• Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet.
• BD torque converter must be installed at the time of installation of the transmission - use of a 3rd party or OE converter will invalidate the transmission warranty
