2005-2007 Powerstroke 6" Radius Arm Lift Kit (BDS1944H)

Fits

Click here to Customize this Kit

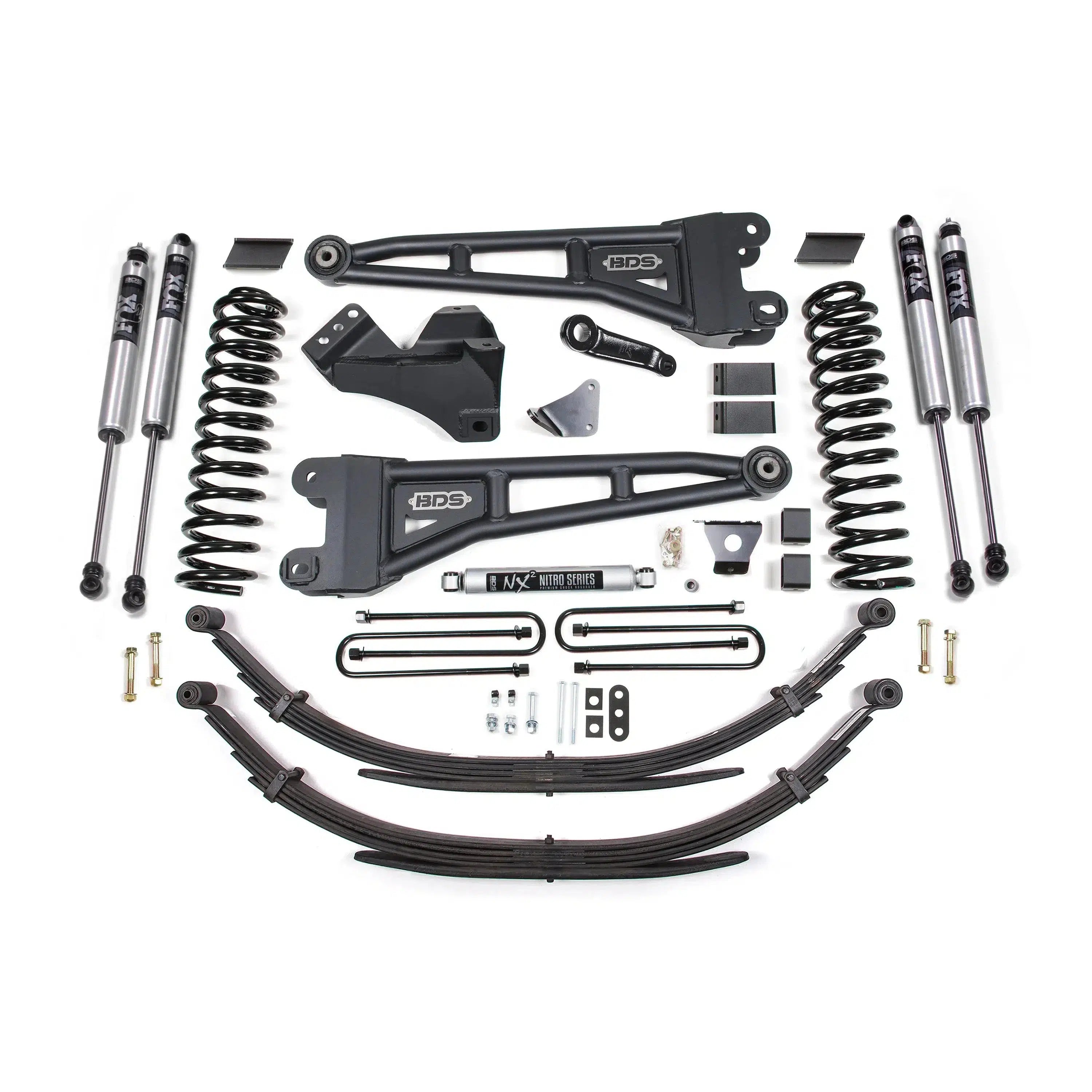

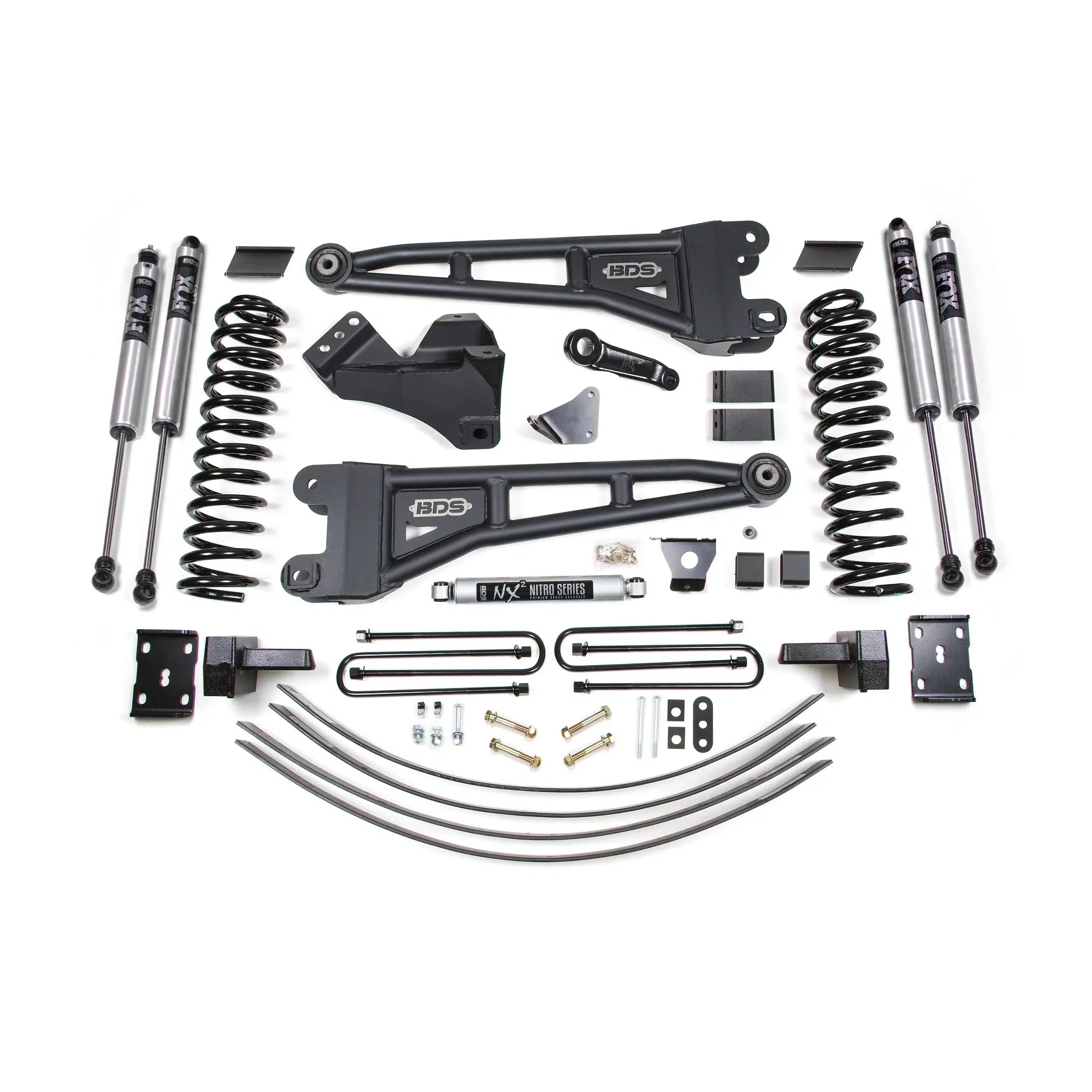

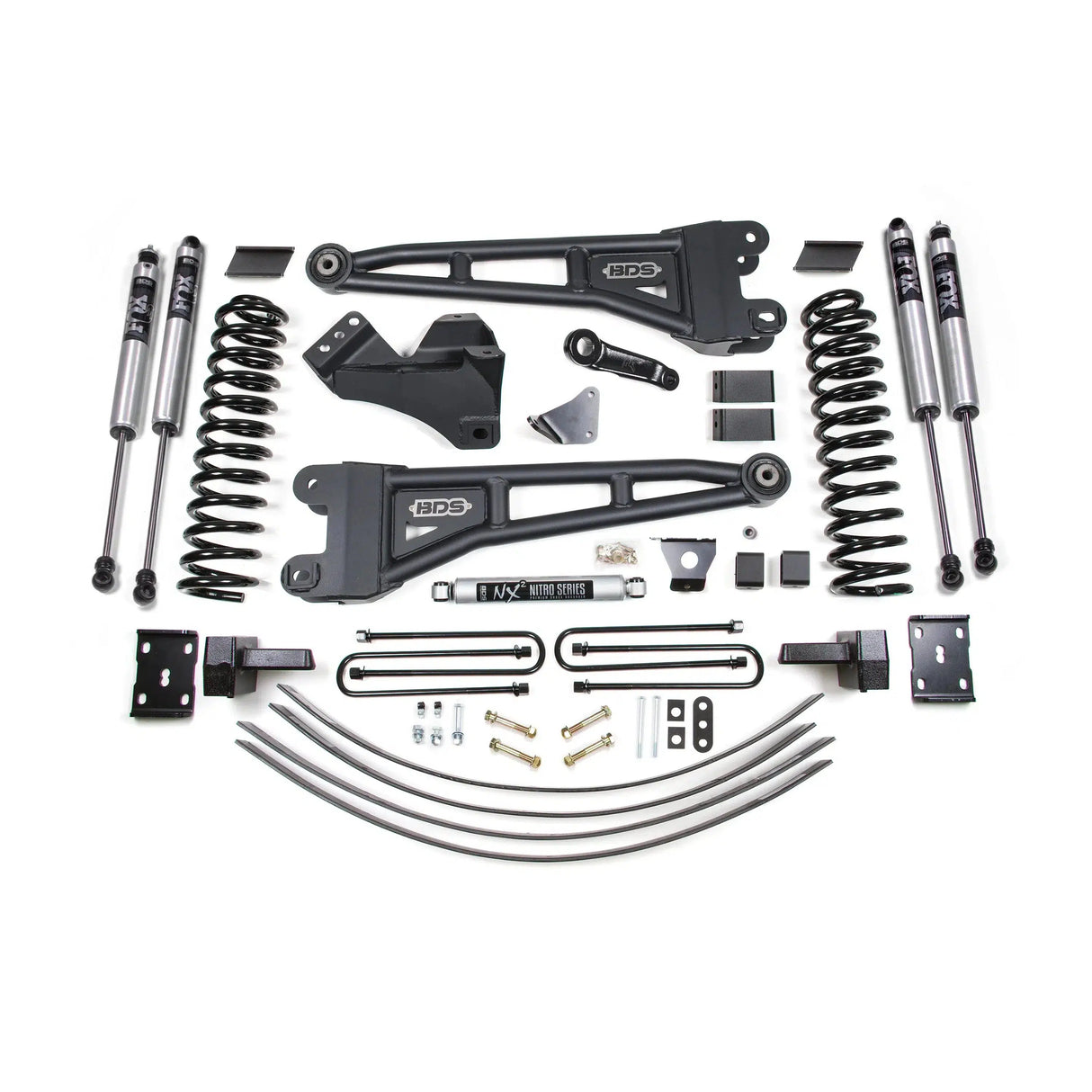

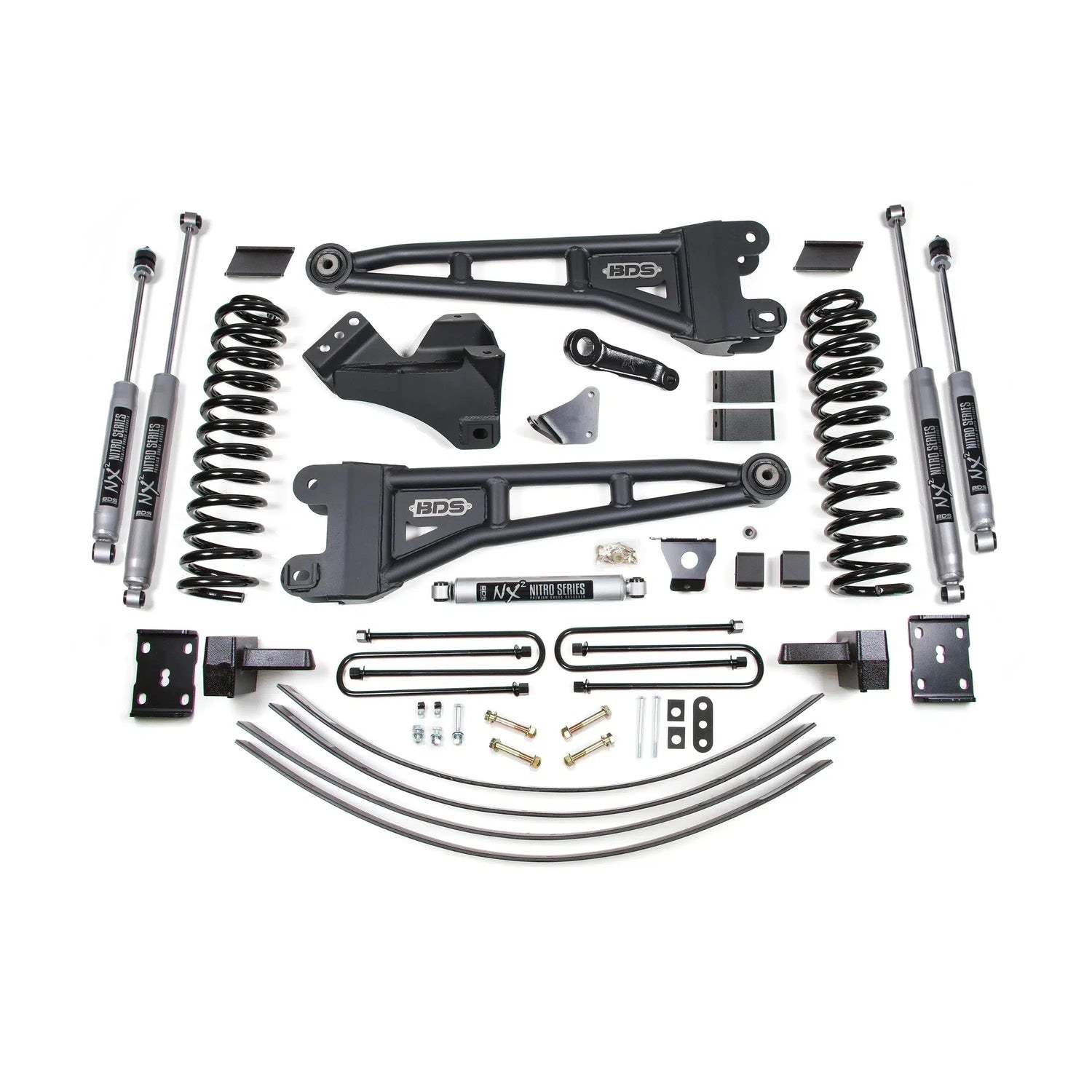

Take your Powerstrokes performance, capability, and stance to the next level with this modest, 6" Radius Arm Lift Kit from BDS, Pro-Ride coil springs, HD replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

Part Number: BDS1944H

• Easy, 100% Bolt-on installation
• Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
• HD tubular steel radius arms that correct caster while maximizing ground clearance
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Fabricated steel blocks provide level stance from front to rear
• NX2 Nitro shocks or Fox 2.0 Performance series


Tire Fitment:

• 37 x 12.5 with 20 x 9 and 4.5 in. Backspace

Rear Lift Option

4 Inch Block Kit

• Determine if your truck was manufactured with or without top-mounted overload springs on the rear leaf springs.
• Blocks made of steel for high strength.
• Designed to provide correct pinion angles.

6 Inch Leaf Springs

• Eliminates any need for a lift block.
• Reduces axle wrap and creates a more controlled and stable feel.
• Multi-leaf progressive design for a smooth ride.
• Maintains factory payload weight ratings.

• Removal of the factory block is required.
• Installation of the rear block kit will result in a "pre-runner" look with the rear of the vehicle 2" lower than the front. To get a level stance you must upgrade to the rear leaf spring option.
• These trucks were manufactured with and without top mounted overload springs on the rear leaf springs. A top mounted overload is an extra leaf separate from the pack that set above the main leaf. You will need to identify which you have before ordering.
• If your vehicle is equipped with a carrier bearing, you will need to order 123402 in the options section.
• Although extremely rare, front driveline vibration may occur.
• Front exhaust modification may be required to clear the front driveshaft on gas models.
• U-bolts will not fit dually models.
• Dropped pitman arm will not fit 10 lug wide track F350 models.
