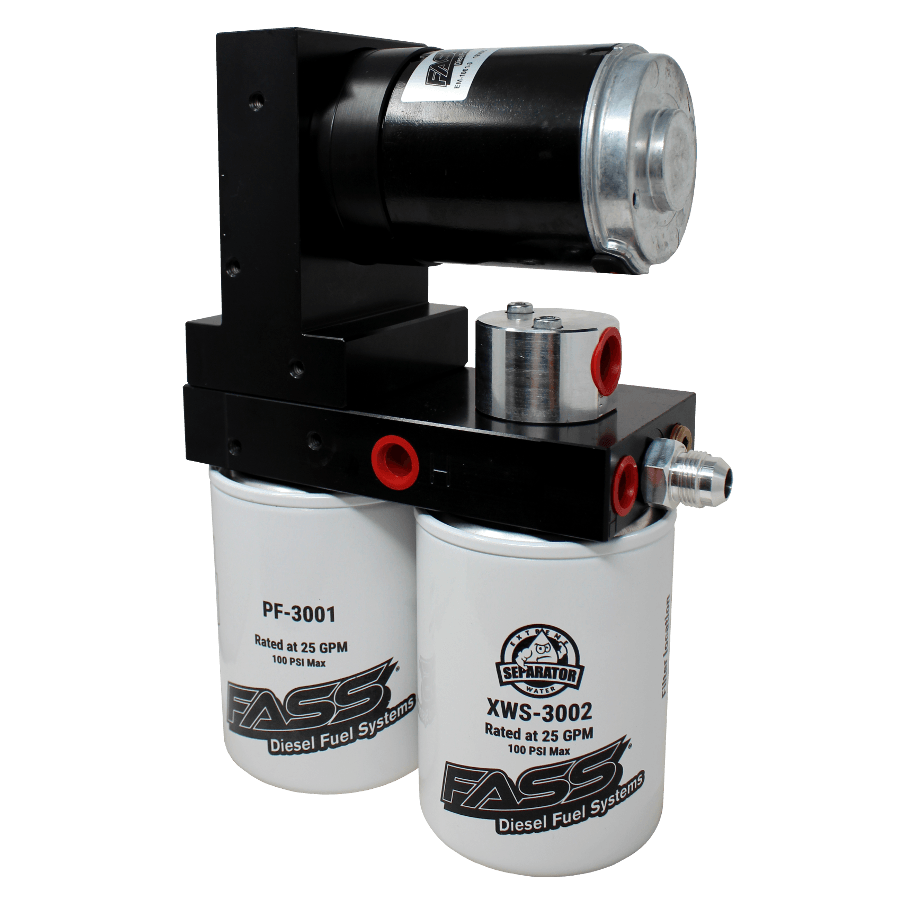

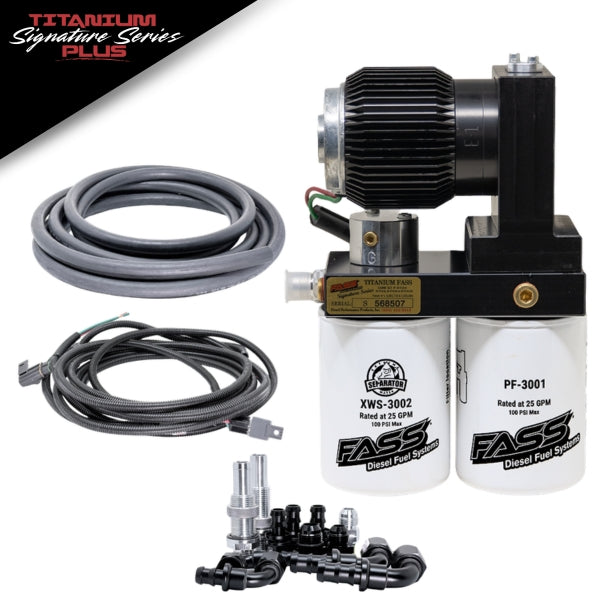

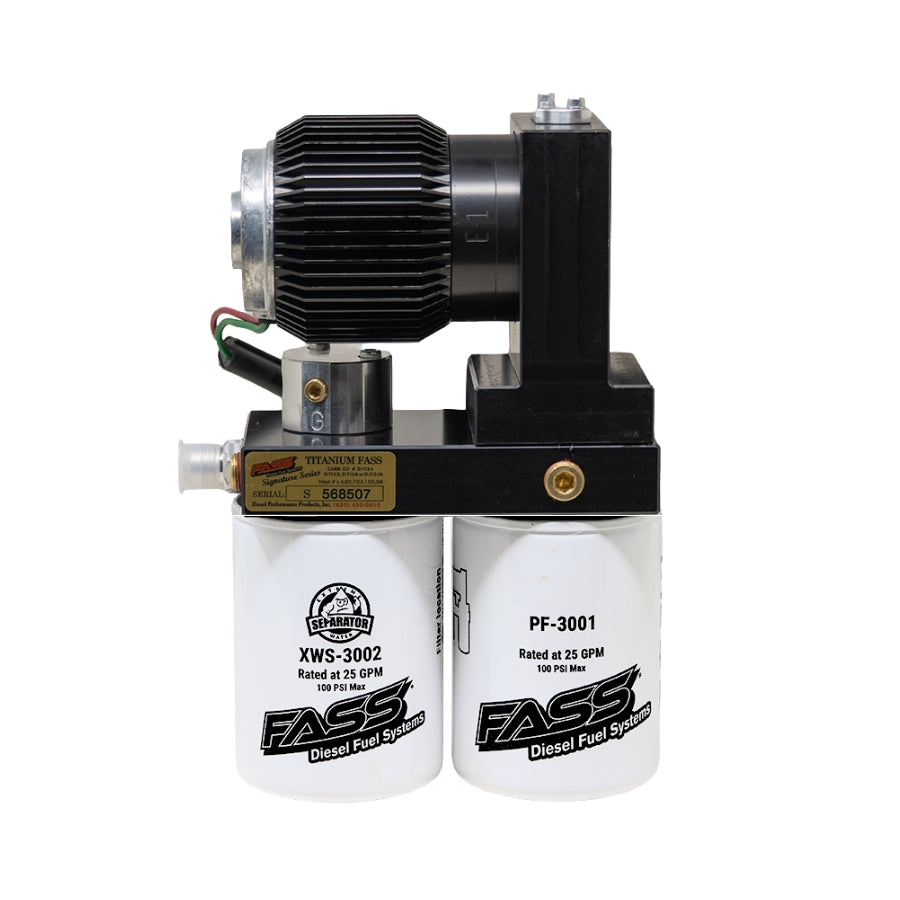

2005-2018 & 2021-2024 Cummins Titanium Signature Series Plus 165GPH Lift Pump (TSPD07165G)

Fits

Power Rating: 600-900 HP

Flow Rating: 165GPH

Filtration Rating: 2 Micron

The Titanium Signature Series Plus is the next evolution of Fass's beloved Titanium Signature Series Fuel System. It boasts ORB (O-Ring Boss) Fittings, 6061 aluminum black anodized fittings, and black fuel line for a super-clean setup! This Fuel System was crafted by FASS to be the top-performing, longest-lasting, and most dependable aftermarket filtration system in the diesel world. Rated at 165 gallons per hour and backed by Fass's limited lifetime warranty, the Titanium Signature Series Plus Fuel System can support your Dodge RAM Cummins 5.9L diesel engine with an impressive 600 HP. Plus, this Fuel System offers advanced filtration benefits that will safeguard your Cummins injection Systems, effectively extending the life of both your Injection System and Injectors. These Benefits include a 2 Micron filtration rating, a built-in water separation filter, and FASS Diesel Fuel Systems patented air/vapor removal process. Cummins diesel engines are infamous for experiencing injector failure;

Part Number: TSPD07165G

• New Whisper Technology
• Complete Replacement System
• 165 Gallons Per Hour Flow Rating
• Removes Water, Air and Debris from Diesel Fuel
• 2 Micron Filtration Rating
• Protects and Extends the Life of Your Injectors
• Improved Cold Weather Starts
• Decreases Carbon Monoxide & Carbon Dioxide Emissions
• ½ Inch Fuel Lines and Ports
• Fuel Mileage Improvement
• Improved Fuel Volume Delivery
• Smoother Engine Idle
• Optional Electric Heater Ports
• Optional Fuel Pressure Gauge Port
• Limited Lifetime Warranty
• 1,000,000 Mile Motor
• 30,000 Mile Filter Life Expectancy
• Quietest Motor on the Market
• ORB (O-Ring Boss) Fittings
• 6061 Aluminum Black Anodized Fittings
• Black Fuel Line

• FASS Whisper Technology (FWT) effectively and drastically reduces the sound levels of the Signature Series Plus FASS Diesel Fuel System to a “whisper” while at the same time increasing fuel flow rates. Fass's competition reduces noise levels by reducing flow rates.
• Performance Radius Cuts (PRC) are an advanced machining technique used to improve the flow of fuel through the FASS System by creating smooth-flowing cuts within the aluminum housing. This prevents the reintroduction of air and vapor back into the fuel and prevents eddy currents from forming within the corner of a 90-degree sharp angle. FASS Titanium Signature Fuel Systems are the only Fuel Air Separation System that incorporates these exclusive Performance Radius Cuts, lesser competitors commonly use T-Bone and square 90-degree fittings that can limit fuel flow, cause restrictions and reintroduce air back into your fuel.
• Mass Flow Return (MFR) technology is used to continually polish your fuel by keeping a positive pressure on the fuel being delivered to the engine to prevent cavitation along with galling and scoring. Then returning the fuel, that’s not yet needed, back to the tank after it has been passed through the filtration process, removing dirt, air, vapor and water. This means your fuel is being constantly “Polished” (cleaned), guaranteeing that your diesel truck always has the cleanest fuel possible. The MFR in combination with the optional FASS Fuel Heater options will help insure “EXTREME” cold weather operations!
• Bolt On Bracket Mounts old mounting styles required drilling or welding when mounting your new System. This has now been simplified with Fass's new bolt on brackets that utilize your factory bed bolt, the bolt that secures your truck bed to your frame. Mounting your Titanium Signature Series Plus System takes only minutes, and all brackets are made from machined steel for superior support and strength.

• Installation of this kit on a cab and chassis may require modifications.
