2006-2007 Duramax Max Air Flow Bundle (383-HSP)

Fits

Featuring a mandrel-bent 4.5" intake tube for massive airflow gains, with HSP's signature heat shield Box eliminating unwanted hot air entering the cold air intake. For every 1° increase in intake air temperature will result in a 3hp loss. This kit also features a high-flow turbo mouthpiece. This turbo mouthpiece will give you the ability to reroute your factory PCV system and remove the factory resonator box, eliminating unwanted engine oil gumming up the turbo and intake system.

The factory hot side intercooler tube is only 2.25" in diameter and has a 90° boot at the intercooler that is prone to failure. With this routing there is a possibility of the hot side intercooler tube rubbing on the power steering line, causing the line to rub a hole in the tube resulting in a boost leak. The solution to this problem is to run the hot side tube directly into the intercooler resulting in lower temperatures, better airflow, and added clearance in tight places.

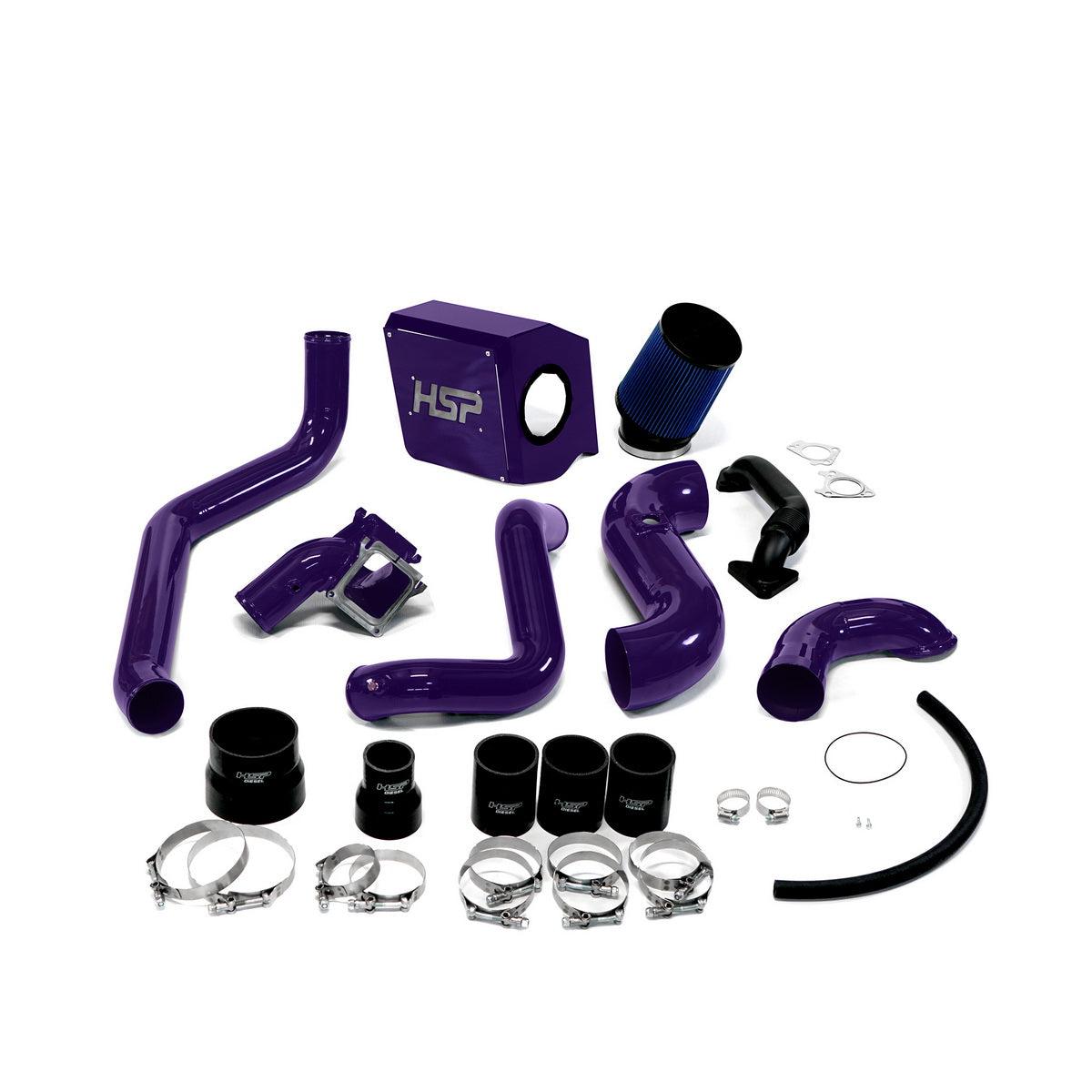

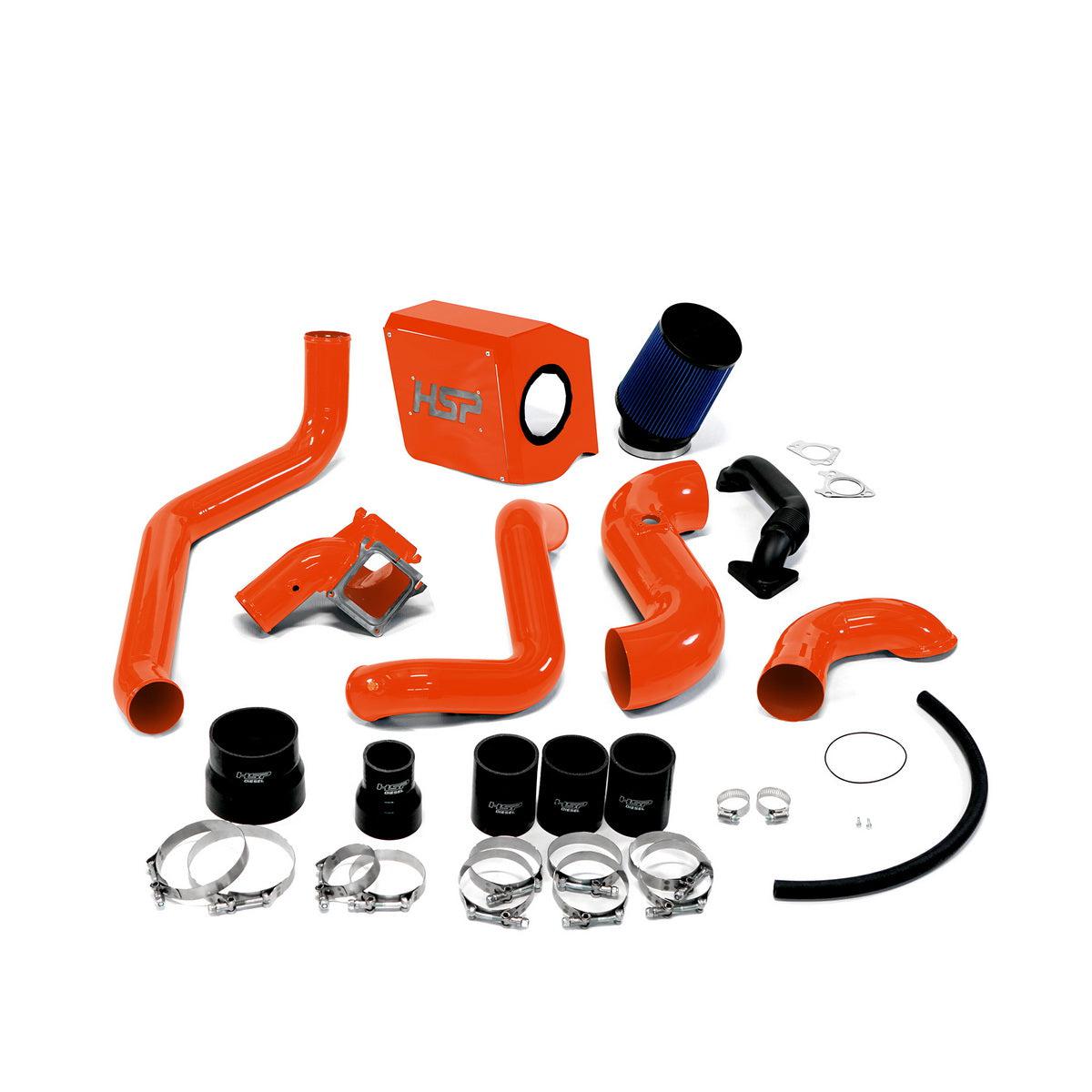

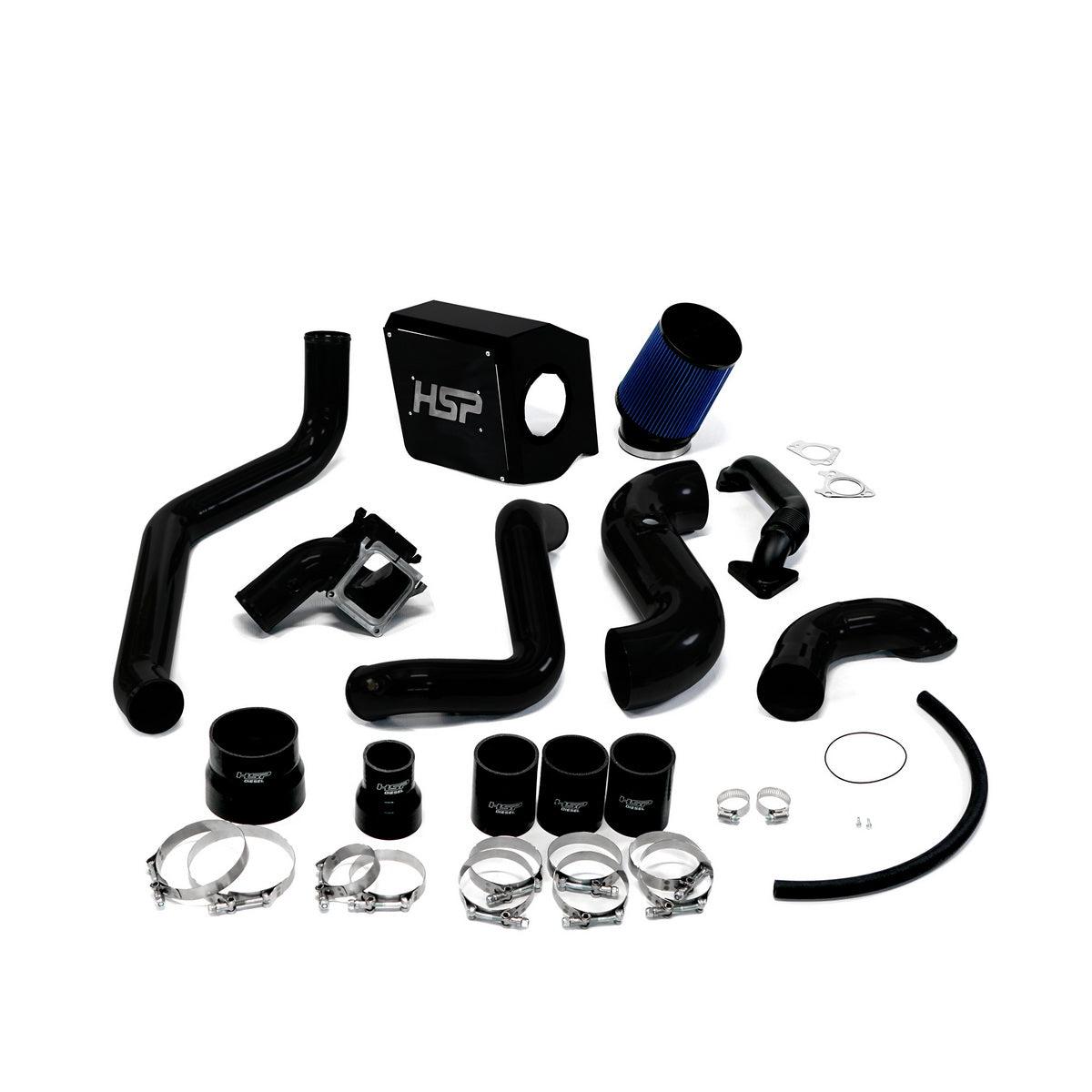

Part Number: 383-HSP

• Mandrel bent 4 1/2" intake tube for massive airflow gains
• Heat shield box
• 3" mandrel bent hot side and cold side tubes
• 5-layer silicone boots
• High-flow turbo mouthpiece.
• Bolted-together two-piece Y-bridge
• Factory replacement 2" up pipes
• 2" Up pipes use .120" wall tubing with the toughest bellows on the market

• 7x 3" T-bolt Clamp
• 1x 2.25" - 3 inch Reducer Boot
• 1x 2.25" T-Bolt Clamp
• 3x 3" x 4" Straight Boots
• 1x 1/8" NPT Brass Plug
• 1x Bridge Neck O-Ring
• 2x 5/8" Worm Gear Clamps
• 2x Bridge Neck Stud
• 2x Bridge Neck 12-Point Nut
• 2x M4x.7x10mm Bolt
• 3x 10-32 x 3/8" button head screws
• 4x 1/8" Aluminum Rivet
• 1x 4" - 4.5" Reducer Boot
• 1x 4" T-Bolt Clamp
• 1x 4.5" T-Bolt Clamp
• 1x 4.5" Filter
• 1x Turbo inlet o-ring
• 1x Up-pipe Gasket (Turbo side)
• 1x Up-pipe Gasket (Manifold Side)
• 16"of Trim Seal
• 2 Feet of 5/8" Heater Hose

Compatible with:

• LBZ: 06-07 VIN Code 2 or D
