2007-2018 Jeep Stage 4 3" Lift Kit (8024-30)

Fits

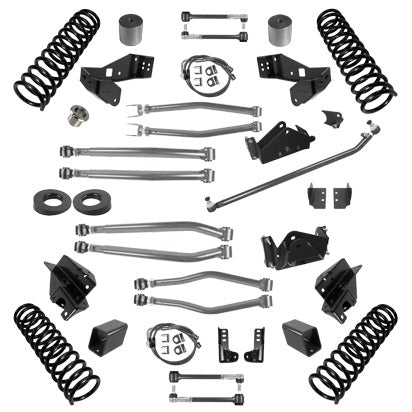

Synergy Jeep JK 3" Lift Stage 4 Long Arm Suspension System is for those wanting maximum performance and capability without sacrificing ride quality. It carries over the quality components of the Stage 3 System, but improves upon them by swapping out the Standard Length Control Arms for Adjustable Long Arms and Long Arm Mounting Brackets.

Part Number: 8024-30

• Stage 4 key features are front and rear track bar relocation brackets, flipped drag link, and all adjustable upper lower long arms
• Front and rear bump stop extension kits
• Front and rear sway bar links
• Front and rear extended Stainless Steel steel braided brake lines
• Synergy double adjuster sleeve pinch bolt assembly allows for adjustment of control arm, track bar, tie rod, and drag link length without removal
• Front and rear track bar relocation brackets raise track bar mounting positions increasing suspension roll center heights which improves handling on and off road
• Lower control arms are manufactured from high quality crush resistant 2X.250 inch Wall 1026 DOM tubing
• Features Synergy Dual Durometer Bushings (DDB) with Teflon bearing surface for a maintenance free design focusing on performance, flex, longevity, and ride quality.
• Front and rear lower shock mounts
• Optional front sway bar disconnect system for ultimate trail articulation mounts sway bar up and out of the way when disconnected from the axle
• Progressive wound coil spring manufactured using the latest in CNC hot winding technology keeps spring from coming unbound at full suspension droop

• Suspension components feature an abrasion-resistant Powdercoat finish for maximum durability and corrosion resistance
• 100% bolt on components assure an easy, trouble free installation with the use of basic hand tools

• Synergy suspension systems are a modular design so all components are available separately
• This system will fit 35" tires with stock fenders or 37" tires with high fenders

• 2012+ JK's lifted over 2" will require exhaust spacers (5017), or a front aftermarket drive shaft to prevent interference with the exhaust

• Requires a maximum 4-3/4" backspace wheel or wheel spacer with factory wheel setup. 4-1/2" back spacing is recommended
