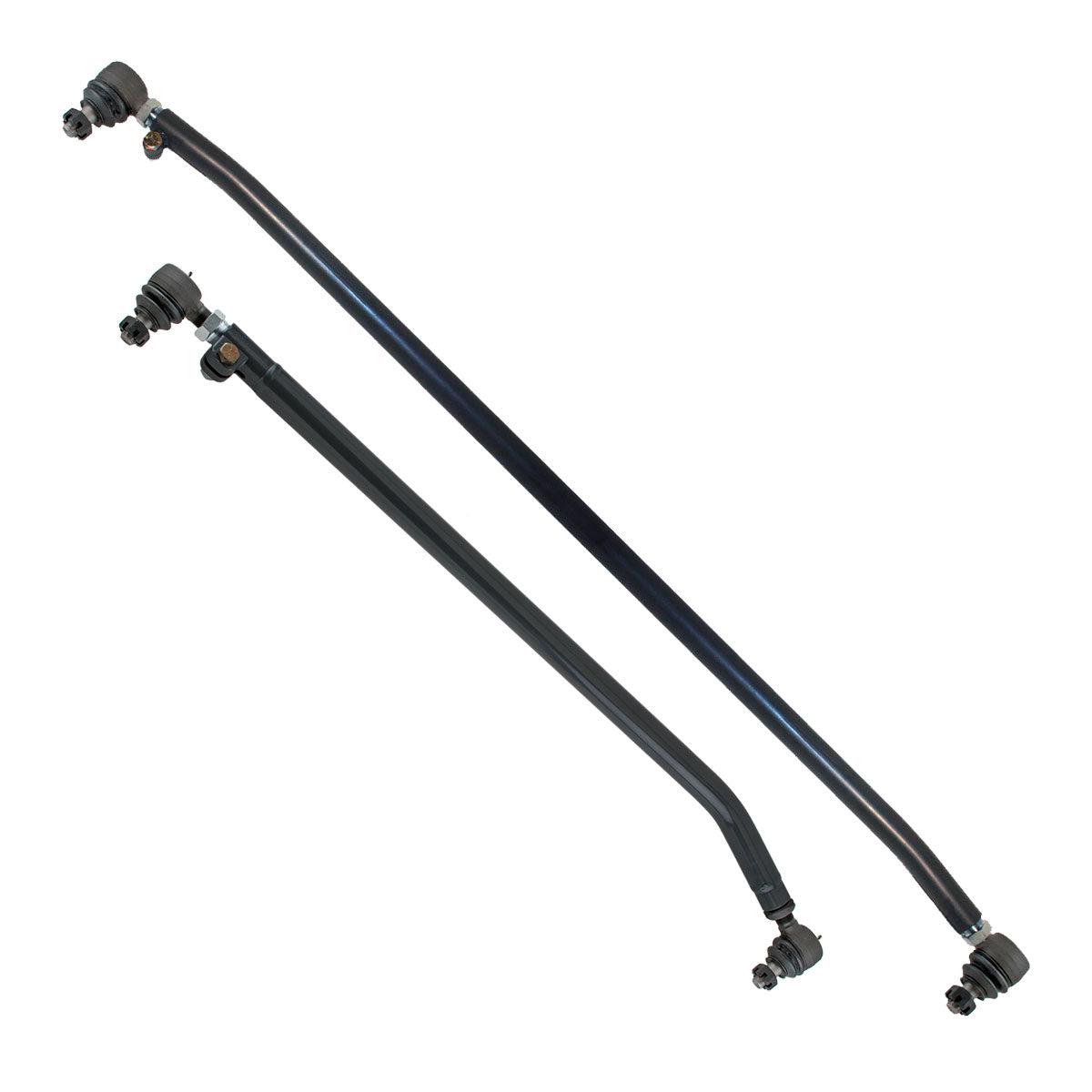

2007-2018 Jeep Steering Kit (8025-01)

Fits

A direct bolt-in replacement for the stock components for an immediate upgrade in steering feel, stiffness, and strength. Single Plane Tie Rod End eliminates unwanted Drag Link and Tie Rod Flop. You will not find a better steering kit on the market!

Part Number: 8025-01

• Drag Link bolts right into the factory mounts or can be relocated to the top of the steering knuckle for a high steer setup using included flip adapter
• No factory drag link components need to be reused
• Includes Synergy HD Metal on Metal Tie Rod Ends with a Single Plane version at the pitman arm side to completely eliminate Drag Link Flop
• Drag Link made from 1.5" x .250 wall DOM tubing
• Tie Rod made from 1 3/8" 4130 Chromoly and Heat Treated for maximum strength - 200% stronger than stock tie rod
• Tie Rod is bent similar to factory bar to clear sway bar mounts
• Abrasion-resistant powder coat finish for maximum durability and corrosion resistance
• Synergy Double Adjuster Sleeve allows adjustment of drag link and tie rod length without removing it from the vehicle
• 100% bolt-on components assures an easy, trouble free installation with the use of basic hand tools
• Synergy Tie Rod and Drag Link both use the same tie rod end thread pitch, so one spare tie rod end (4131-L) can be used in any location in the steering.

Includes:

• 8000-01 HD Adjustable Drag Link
• 8002-15 HD Adjustable Tie Rod

• Drag Link fits all JK Wranglers, including those with aftermarket JK axle housings.
• Larger tubing size than previous design improves drag link strength and steering feel. Offers a more direct connection to the road/trail compared to stock; no more bent drag links and constantly having to re-center your steering wheel.
• Synergy Heavy Duty Metal on Metal Tie Rod Ends are stronger and more durable than stock and include grease fittings/replaceable dust boots for ease of maintenance.
• Single plane tie rod ends are used on both the drag link and tie rod to eliminate unwanted movement. Drastically simplifies installation and only allows necessary degree of movement.

• Click Here - Install 8000-01
• Click Here - Install 8002-15

• Drag Link is designed to be used in the stock location for up to 3" lift heights. For 3-6" lift heights the drag link should be flipped for a high steer setup.
• High Steer setup requires the Drag Link to be relocated to the top of the steering knuckle. Must use in conjunction with a raised front axle side track bar relocation bracket (See Synergy 8055, 8012-13, or 8009-01). Rear track bar should ideally be raised a similar amount at the axle.
• Tie Rod, or flipped Drag Link, require 16" or larger wheel diameter with a maximum 4-3/4" backspacing or wheel spacer with factory wheel setup. 4-1/2" back spacing is recommended.
• Drag Link Minimum Length (Collapsed): 38.75"
• Drag Link Maximum Length (Extended): 41.25"
• Tie Rod Minimum Length (Collapsed): 60.4375"
• Tie Rod Maximum Length (Extended): 58.188"
