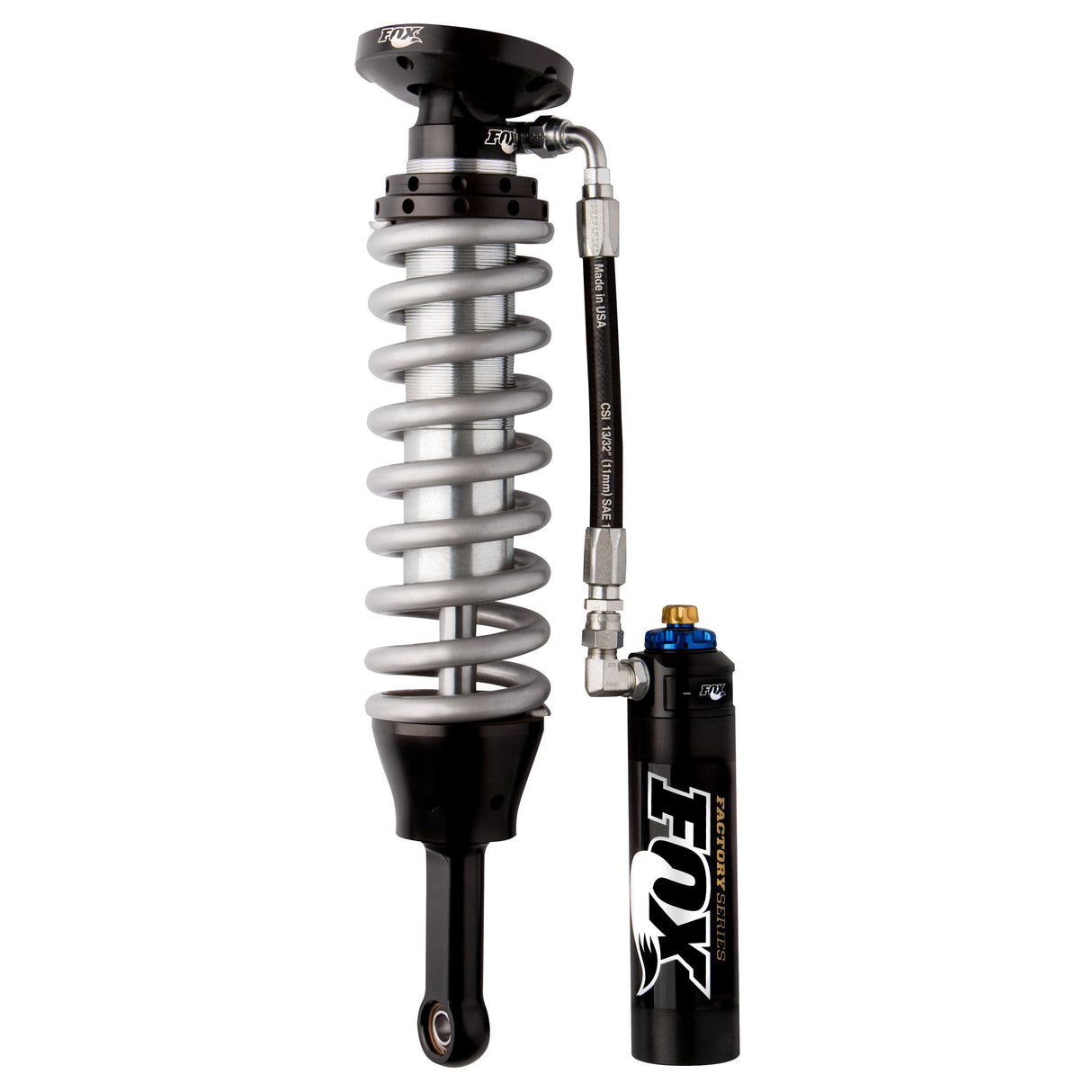

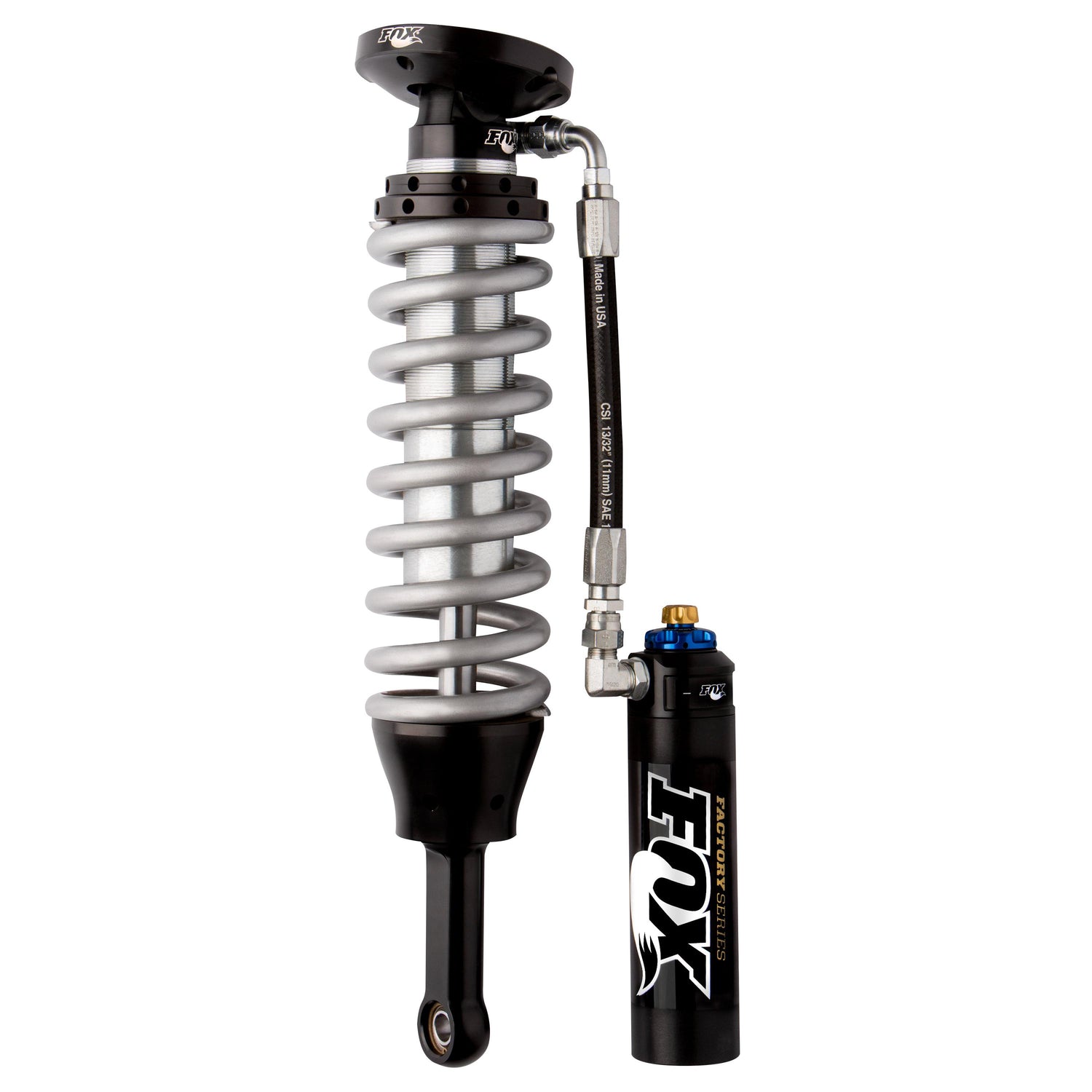

2007-2021 Tundra 2.5 Race Series 2-3" Lift Front Coilovers w/ DSC (880-06-947)

Fits

Note: Requires Upper Control Arm

These bolt-on Factory Race Series Coil-over Reservoir shocks provide improved damping in any terrain. Coil-over shocks also provide suspension damping and suspend the vehicle's weight. The integrated coil spring can be adjusted for preload and ride height and comes pre-set to level your vehicle right out of the box.

Experience for yourself the incredible performance and precise control that Factory Series Coil-over Reservoir shocks deliver.

Part Number: 880-06-947

• Requires Upper Control Arm
• Performance Tuned For Vehicle Specific Application

• External Reservoir System Dissipates Heat Fast
• Zinc-plated and double-clear coated for long lasting finish
• Reservoir 2.5" Smooth bore and honed seamless alloy Reservoir
• Black-anodized CNC-machined 6061-T6 billet aluminum
• 7/8" hard chrome plated steel Shafts
• 6061-T6 hard-anodized, high-flow aluminum Piston
• Application specific Valving to maximize performance
• Redundant sealing pack system main seal, wiper seal, scraper seal
• PTFE-lined, heat-treated, alloy steel spherical bearings

Specs:

• Extended Length: 24.86"
• Compressed Length: 18.19"
• Top Mount: TM
• Bottom Mount: Eyelet
• Travel: 6.67"
• Front Lift Height: 2-3"
