2007-2021 Tundra 3" Front 2" Rear SST Lift Kit (69-5276)

Fits

Get rid of that "stink bug" stance while lifting the truck both front and rear all while retaining factory ride quality. No cutting or strut spring pre-loading and installs quickly and safely using the provided HD hardware.

Part Number: 69-5276

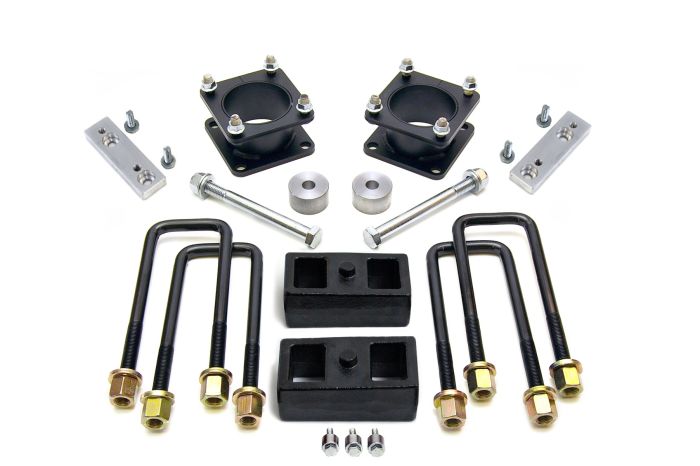

• Precision crafted upper strut extensions
• Differential drop brackets which lowers the differential on 4WD models
• Sway bar drop down spacers
• Skid Plate Spacers
• Strut extensions
• Model-specific rear blocks rear blocks & u-bolts

Tire Fitment:

• 35" Maximum tire diameter
• 35x11.50 for no rub on a 9" wide wheel with +25 offset
• 18" - 285/75R18
• 20" - 295/65R20
• 22" - 285/55R22

• Not for use on 2015-21 Tundra TRD Pro w/ Bilstein or Fox TRD Pro shocks
• Toyota trucks have a unique pattern of being manufactured and sold with varying degrees of rear to front rake. It appears that many Toyota trucks are not the same height or possess the same rake as the same stock truck sitting next to it. Our research has determined there can be as much as 1.0" difference in rake and ride height from truck to truck. TRD-equipped trucks often have less rake compared to a non-TRD truck. Measurements on some customer's trucks have revealed as much as 1" difference in the factory front end.

Click here to view installation instructions
