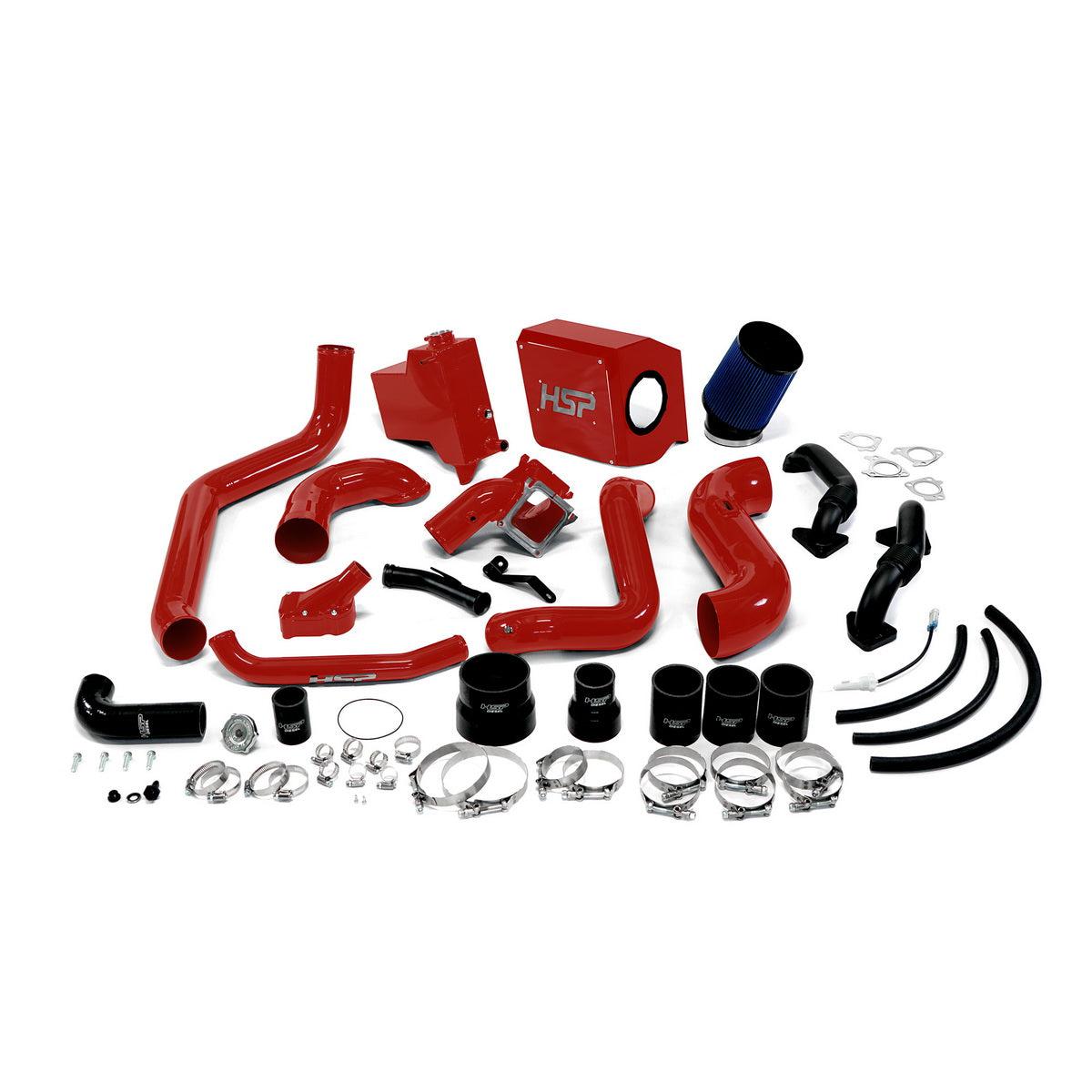

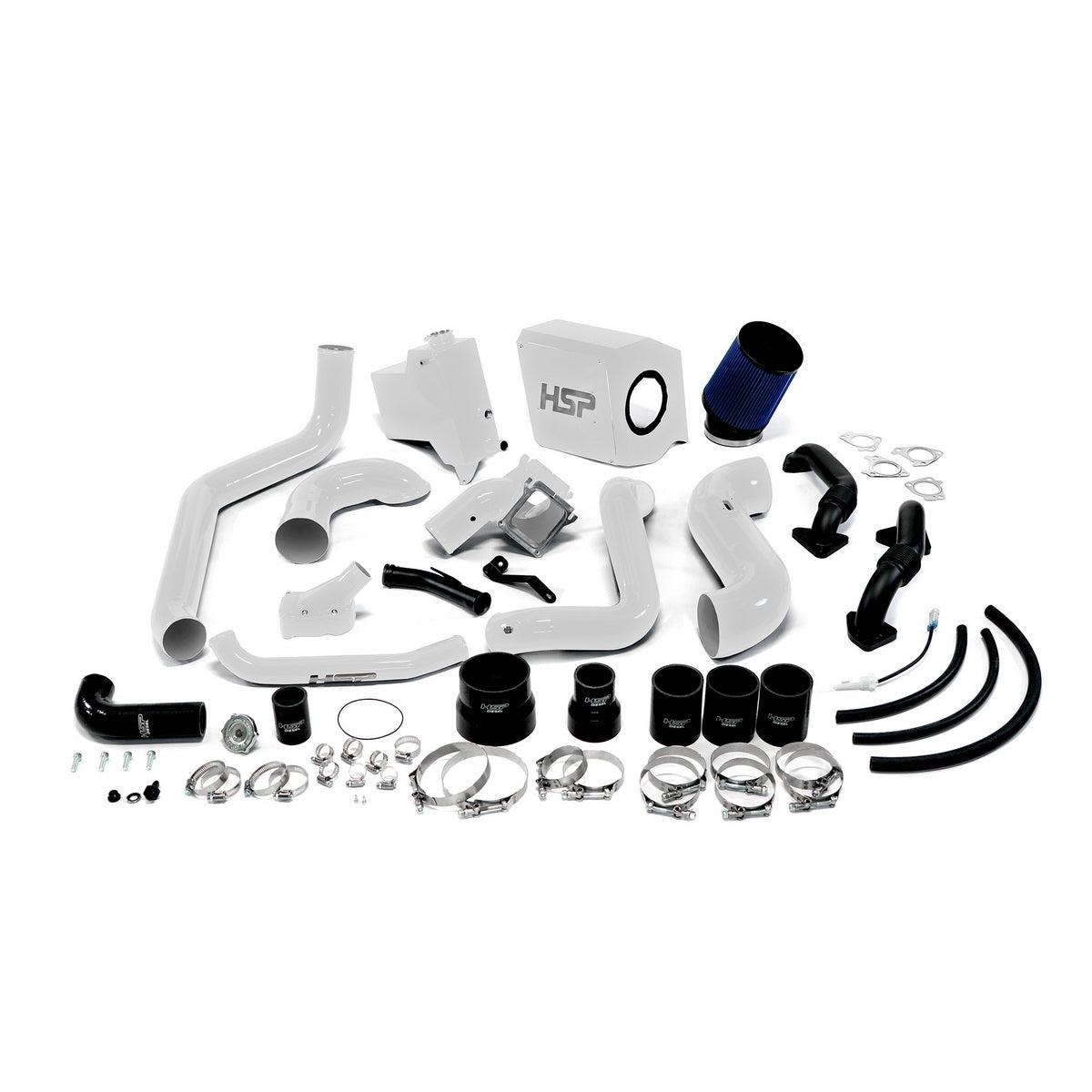

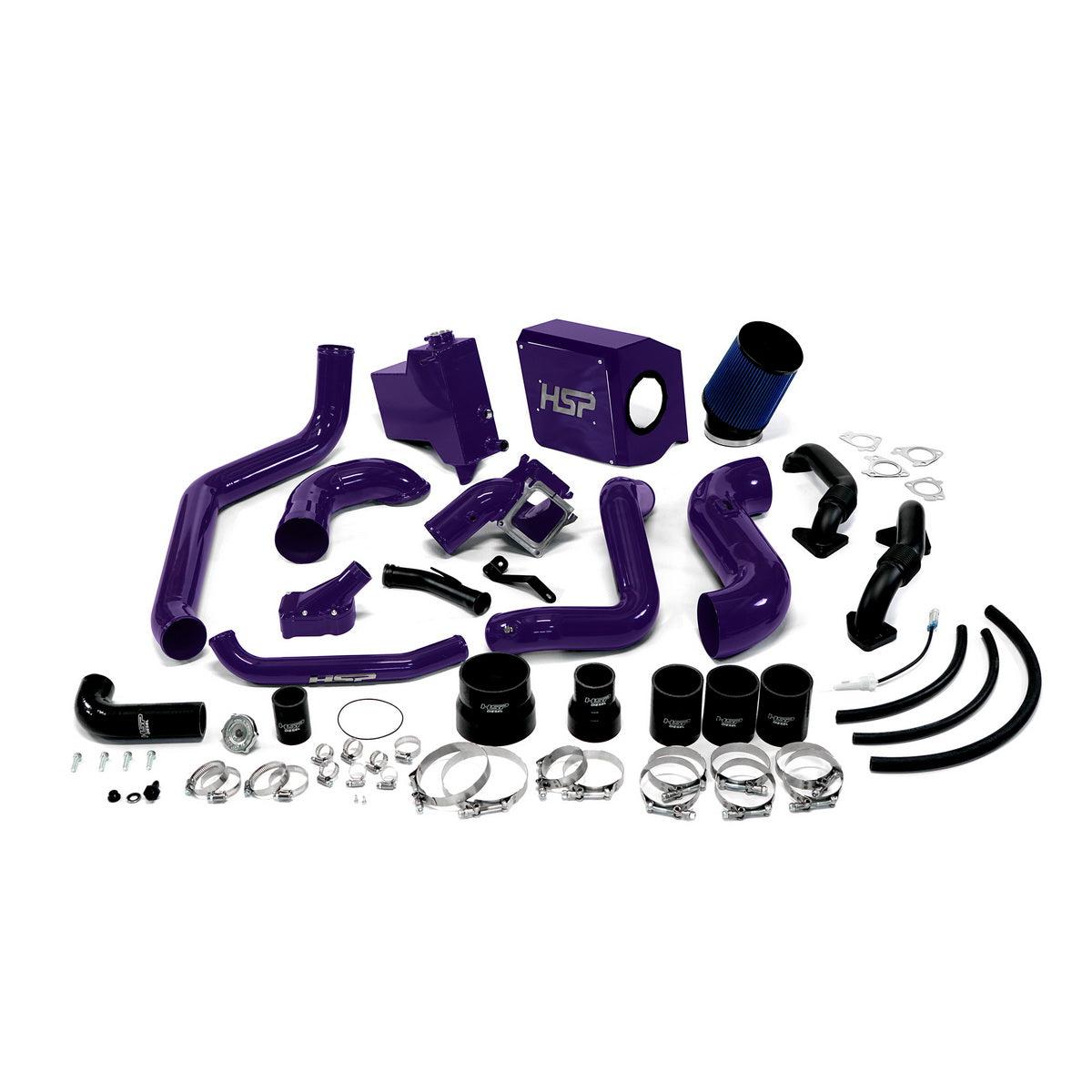

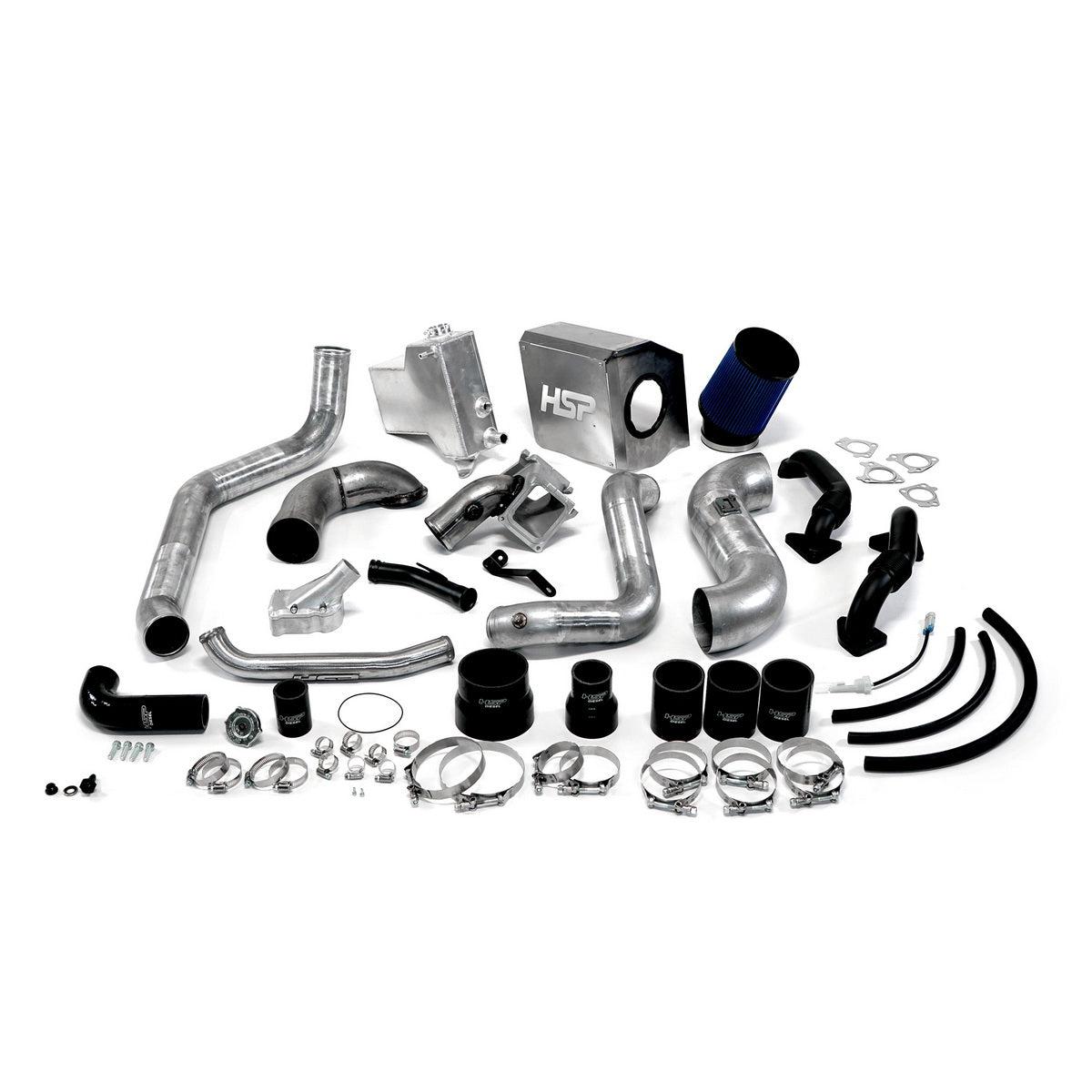

2007.5-2010 Duramax Deluxe Max Air Flow Bundle (484-HSP)

Fits

The factory hot side intercooler tube is only 2.25" in diameter and has a 90° boot at the intercooler that is notorious to failure. With this routing there is a possibility of the hot side intercooler tube rubbing on the power steering line, causing the line to rub a hole in the tube resulting in a boost leak.

The solution to this problem is to run the hot side tube directly into the intercooler resulting in lower temperatures, better airflow, and added clearance in tight places. This bolted together two-piece Y-bridge will make installation a simple and ensure a leak-free seal. When it comes to styling included is a forward-facing thermostat housing with coolant return to help keep your VGT turbo running cool.

Part Number: 484-HSP

• Featuring 3" mandrel bent hot side and cold side tubes with a max flow Y-bridge
• Heat shield box
• High-flow turbo mouthpiece
• 5-layer silicone boots
• Coolant tank features an all-aluminum design with an incorporated low-coolant sensor
• 2" up pipes w/ .120" wall tubing
• 4 1/2" intake tube for massive airflow gains

• 3x 3" x 4" Straight boot
• 7x 3" T-bolt Clamp
• 1x 2.25"- 3" Reducer boot
• 1x 2.25" t-bolt clamp
• 2x 5/8" Worm gear clamp
• 1x 1/8" NPT Brass plug
• 1x Bridge Neck O-ring
• 2x Bridge neck stud
• 2x Bridge neck 12-point nut
• 2x M4x.7x10mm bolt
• 3x 10-32 x 3/8" Button head screw
• 4x 1/8"Aluminum Rivet
• 1x 4"- 4.5" Reducer boot
• 1x 4" t-bolt clamp
• 1x 4.5" T-bolt clamp
• 1x 4.5" filter
• 1x Turbo inlet o-ring
• 1x radiator cap
• 5x 1/2" worm gear clamp
• 1x 1" worm gear clamp
• 1x 1/2" NPT float switch
• 1x Low coolant sensor
• 1x Thermostat housing o-ring
• 4x M8x1.25-25mm Socket cap bolt
• 4x M6x1.0-18mm Socket Cap bolt
• 1x M14x1.5 to 3/8" hose barb
• 1x M14x1.5 Metric Port plug
• 1x Metric Bonding seal 14mm
• 1x 1.75" x3 inch Straight boot
• 1x 1.75" 90 degree Boot
• 4x 1 3/4" worm gear clamp
• 2x up-pipe gasket (turbo side)
• 2x up-pipe gasket (manifold side)

Compatible with:

• LMM: 07.5-10 VIN Code 6
