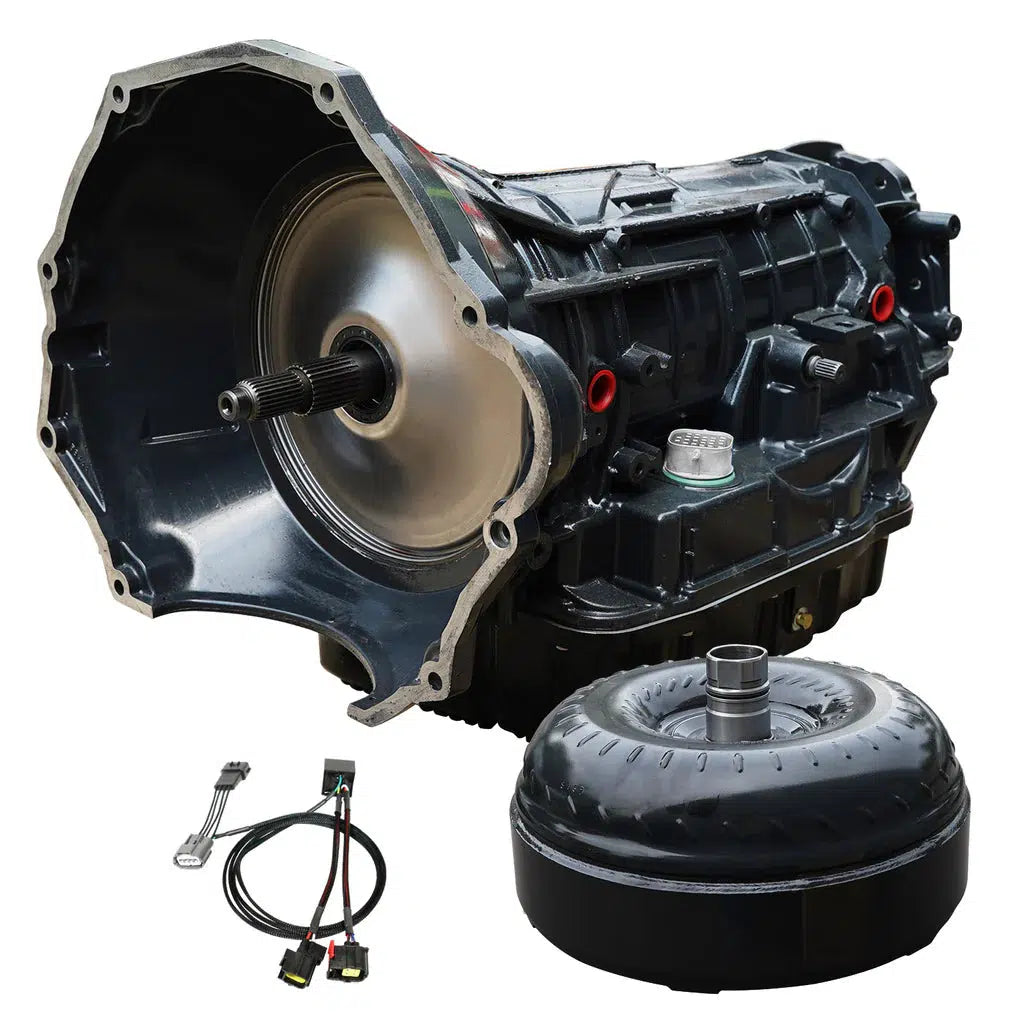

2007.5-2018 Cummins Torquemaster 68RFE Transmission & Converter W/ Billet Input Shaft Package (2WD) (1064262BM)

Fits

When you purchase a BD transmission and torque converter package, you're snagging a perfectly paired duo that has been put to the test on the dyno for maximum performance and reliability. Each transmission also includes BD's own heavy-duty pan for added fluid space. Whether you're towing, hitting the streets, or dominating the track, when it comes to a reliable transmission that can handle your diesel's force and strength, BD is the obvious go-to choice.

Part Number: 1064262BM

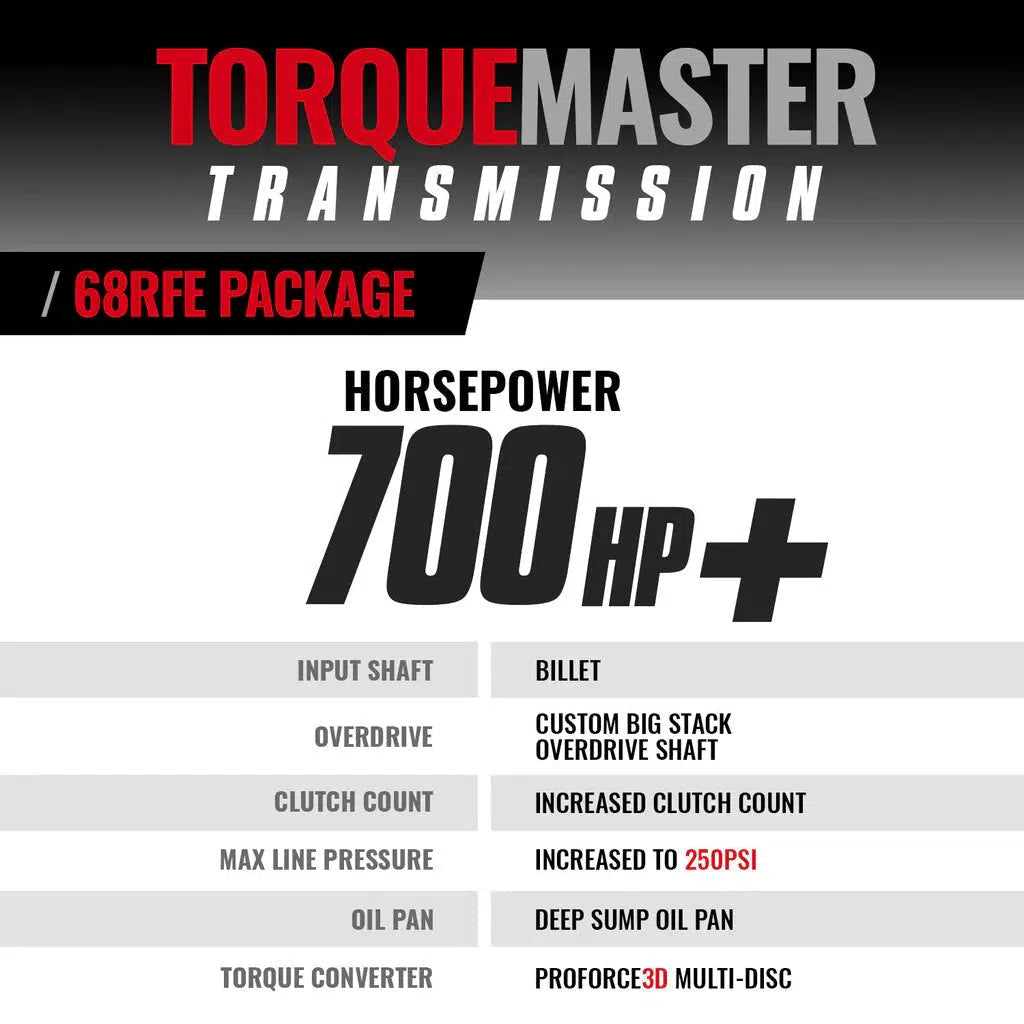

Transmission:

• Hard anodized valve body and new solenoid pack installed in every unit
• Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
• Heavy duty cam & roller design low reverse one way clutch
• New 4C billet spring retainer
• Steel girdle added to 2C piston to allow for more clutches and broader apply area
• BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum
• Over Drive clutches 33% increase & 2C clutches 33% increase

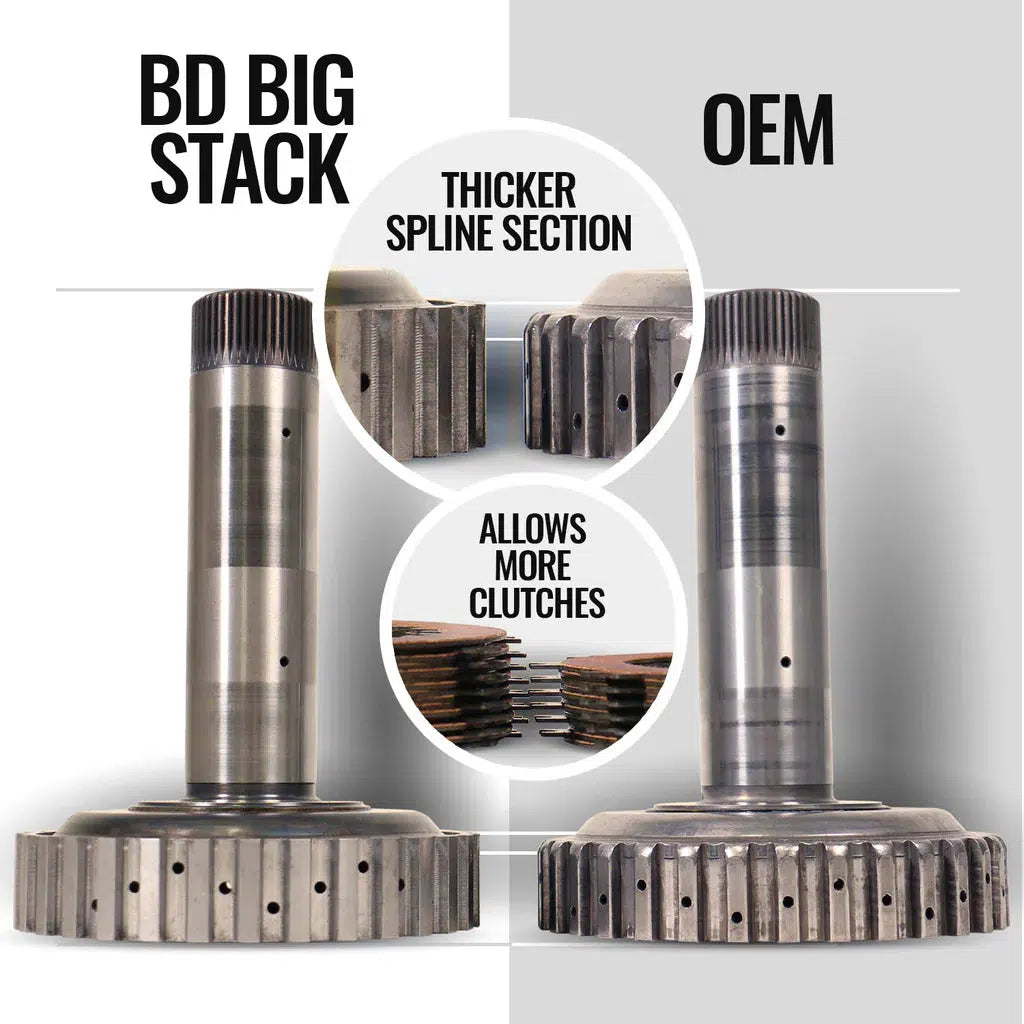

• Custom Big Stack overdrive shaft
• BD reinforced accumulator plate
• TCC limit valve machined and sleeved to address high wear area with in pump
• BD Deep sump oil pan adds extra fluid and cooling capacity while reducing case flex
• BD ProTech68 pressure control module ramps up line pressure to 250 psi using MAP sensor to input load and adjust pressure required
• Performance Transmission but with the added touch of a Billet Input Shaft to take the "snap" from rapid throttle and high horsepower

Torque Converter

• Triple Disc
• Enhanced Stall - Street/Towing applications
• HD springs absorb shock of engagement
• Stamp forged 1-piece cover
• Eliminates warpage from clutch heat
• Taller cover can be rebuilt more often
• Trapezoid teeth design
• Engineered tighter tolerances
• Self-centering trapezoid teeth design increases contact decreases wear and chatter
• Thrust bearings - not plastic thrust washers
• Riveted piston ensures alignment & eliminates vibration or embrittlement from welding
• Cast stator designs maximizes torque
• New sprag components ensure long term durability
• Furnaced brazed turbine fins for improved fluid coupling efficiency
• Reduced overall weight by 12lbs compared to competitors

• 9 Hours
• Install Click Here
• Line Pressure Module Click Here

Parts Only - No Race abuse is covered.

• 36-Months
• 150,000 Miles
• Warranty Form Click Here
