2009-2013 F-150 3.5" SST Lift Kit w/ 1 Piece Drive Shaft (69-2302)

Fits

The 3.5" of lift height is achieved using a unique offset top mount spacer design; CNC-machined billet Aluminum lift spacers feature a unique offset bolt design engineered to position the strut into the stock position. This translates into proper suspension clearance and guarantees your truck will ride like it was stock.

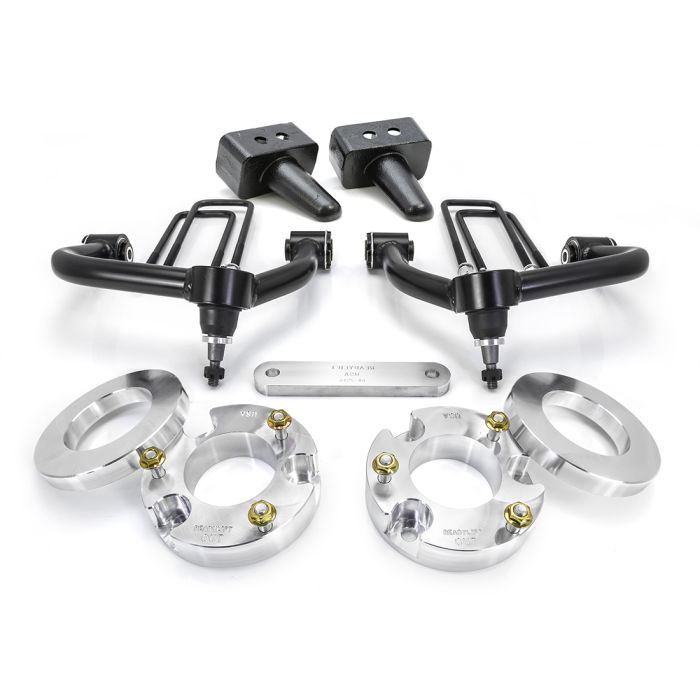

Part Number: 69-2302

• HD DOM tubular steel control arms with corrected cup angles
• HD ball joints & one-time grease urethane bushings
• 2 CNC machined billet aluminum offset top mount strut extensions
• 2 CNC machined billet aluminum strut spring pre-load spacers
• 2 3" rear lift blocks
• New longer U-bolts & hardware

Tire Fitment:

• 35x12.50 Max on a 9" wide wheel with +12 offset
• Some minor trimming may be necessary depending on the tire design.
• 285-50-R22
• 285-65-R20
• 285-75-R18

• Not for use on trucks that are factory pre-lifted/leveled or that have the "off-road package"
• Check factory height before ordering or installing
• Trucks with more than 22" of wheel hub to fender lip height may require less lift
