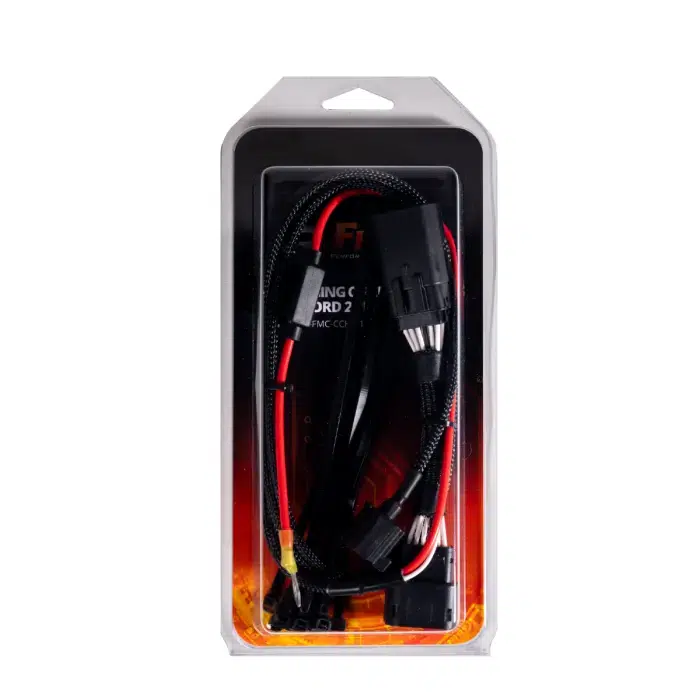

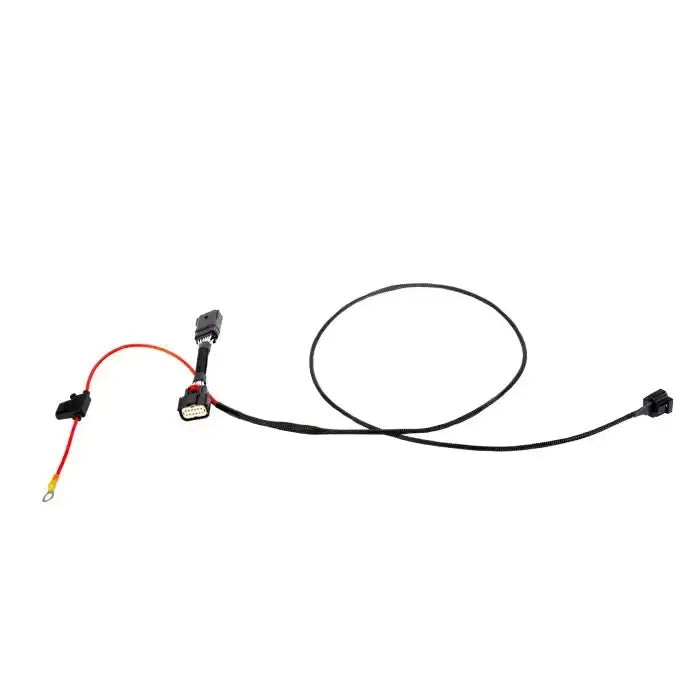

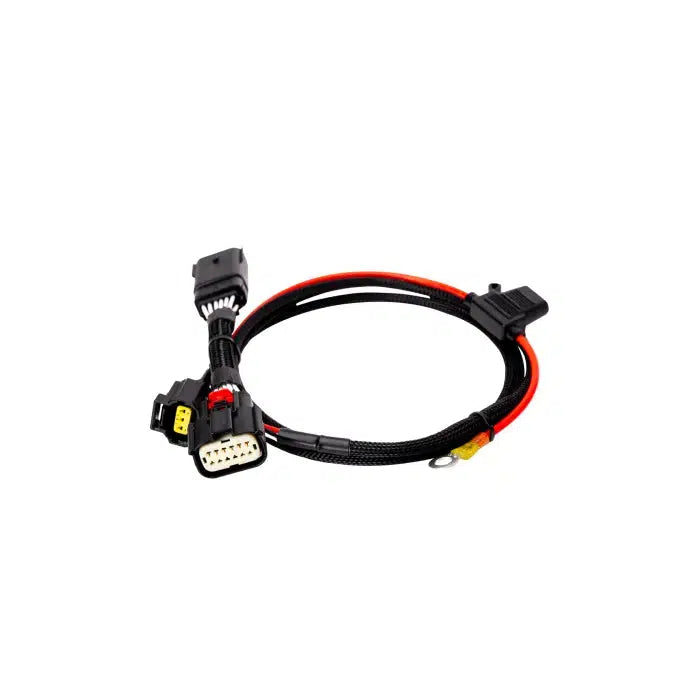

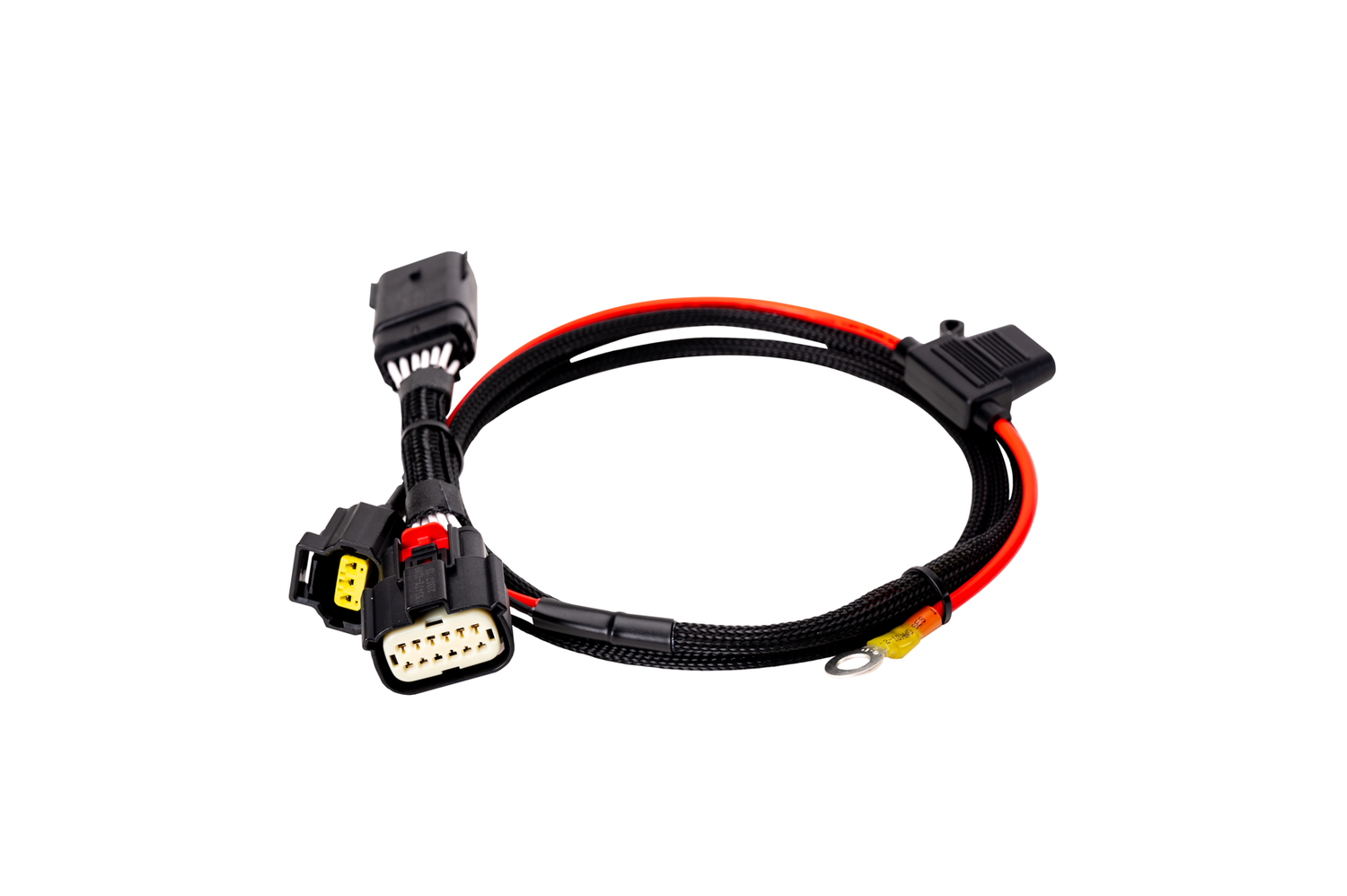

2011-2016 Powerstroke Charging Circuit Harness (FPE-HAR-FMC-CCH-1116)

Fits

No need for cutting or splicing - simply drop in this Charging Circuit Harness to fix that pesky battery lamp on your dashboard. Fleece Performance's in-house production process includes automated wire cutting and terminal crimping for top-notch replacement parts. Get back on the road in no time!

Part Number: FPE-HAR-FMC-CCH-1116

• No cutting or splicing
• Drop in
• Quality parts

• Click Here

Due to the routing, exposure, and general lack of protection on the small charging circuit sense wires that are routed from Powertrain Control Module (PCM) to the alternator it is common for wire damage to be experienced. The routing of the OE harness is cumbersome and extremely difficult to replace and diagnose. Images below show the routing location of the wires in the plastic channel located on the underside of the engine as well as exposed in sections between the channels.  These locations are also subjected to vibration and harsh weather and environment, resulting in shortened service life. Images of the routing location of these wires on the underside of the engine are shown below.

FIX/SOLUTION: The Fleece Performance Charging Circuit Harness is a drop-in replacement to replace a failed factory harness causing an intermittent or illuminated charging circuit MIL on the dash. The harness installs directly in-line with factory connections with no cutting or splicing and allows you to reroute the alternator connection along the top side of the engine, avoiding the unprotected channel routing on the underside of the engine.

Parts Only

• 6-Month Limited Parts Warranty
