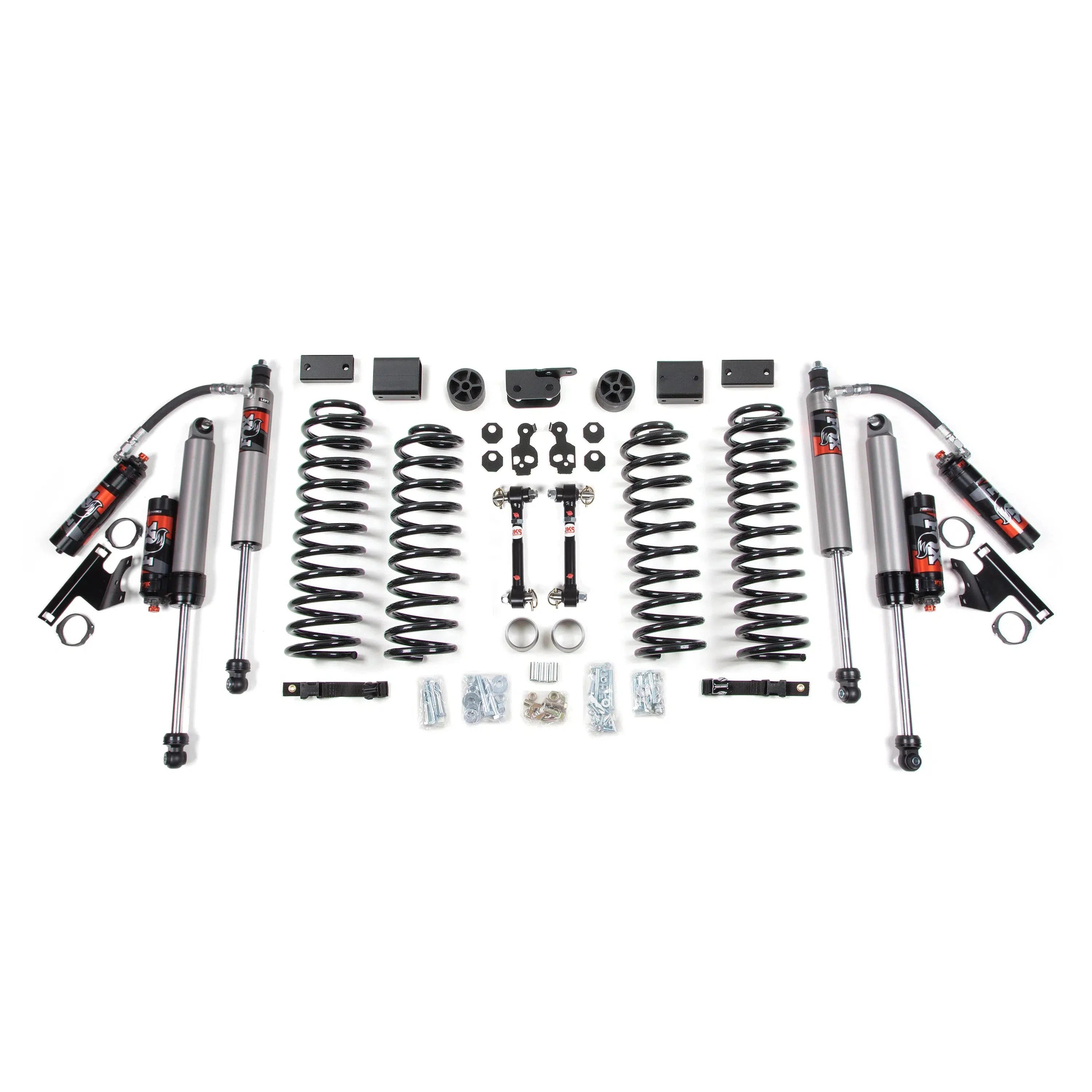

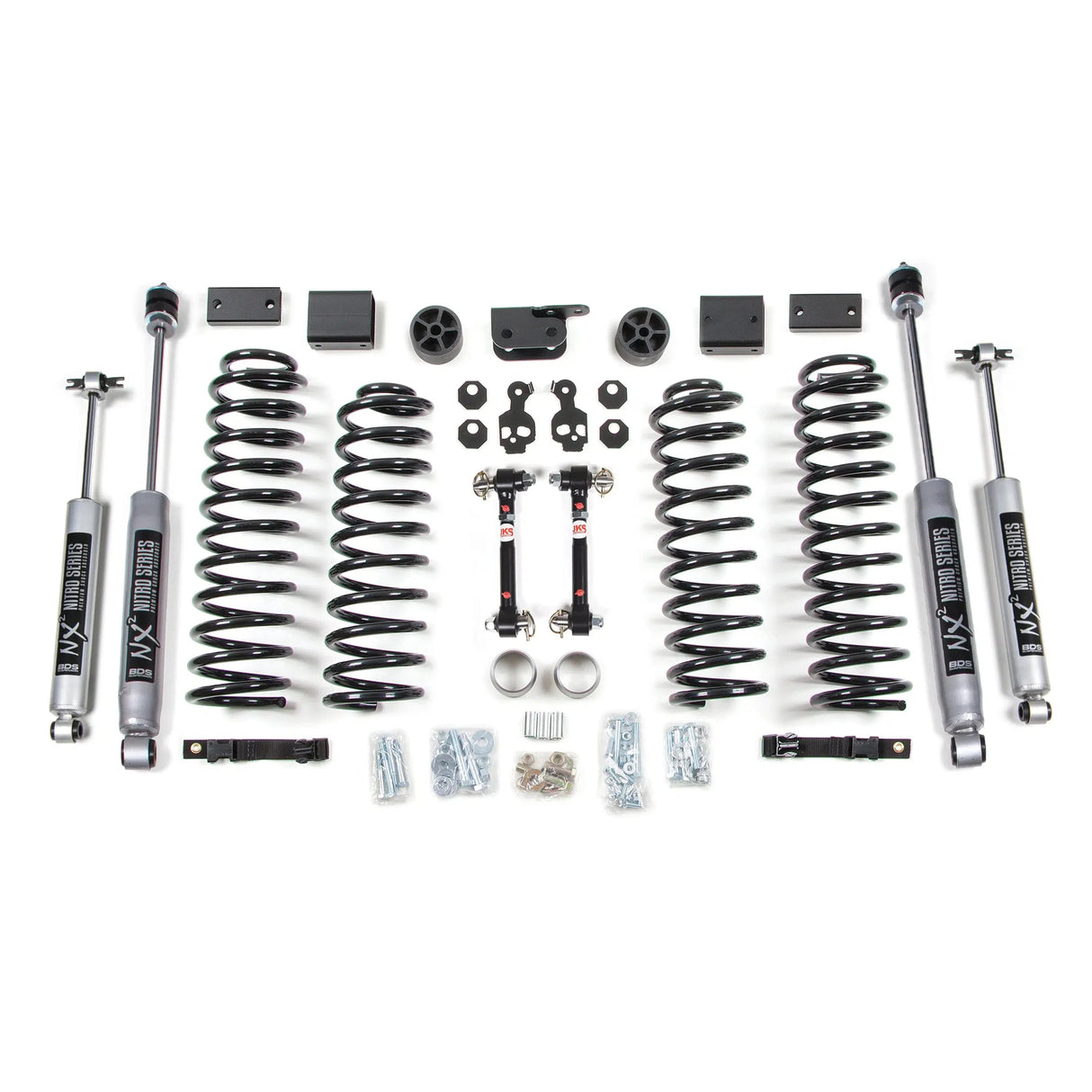

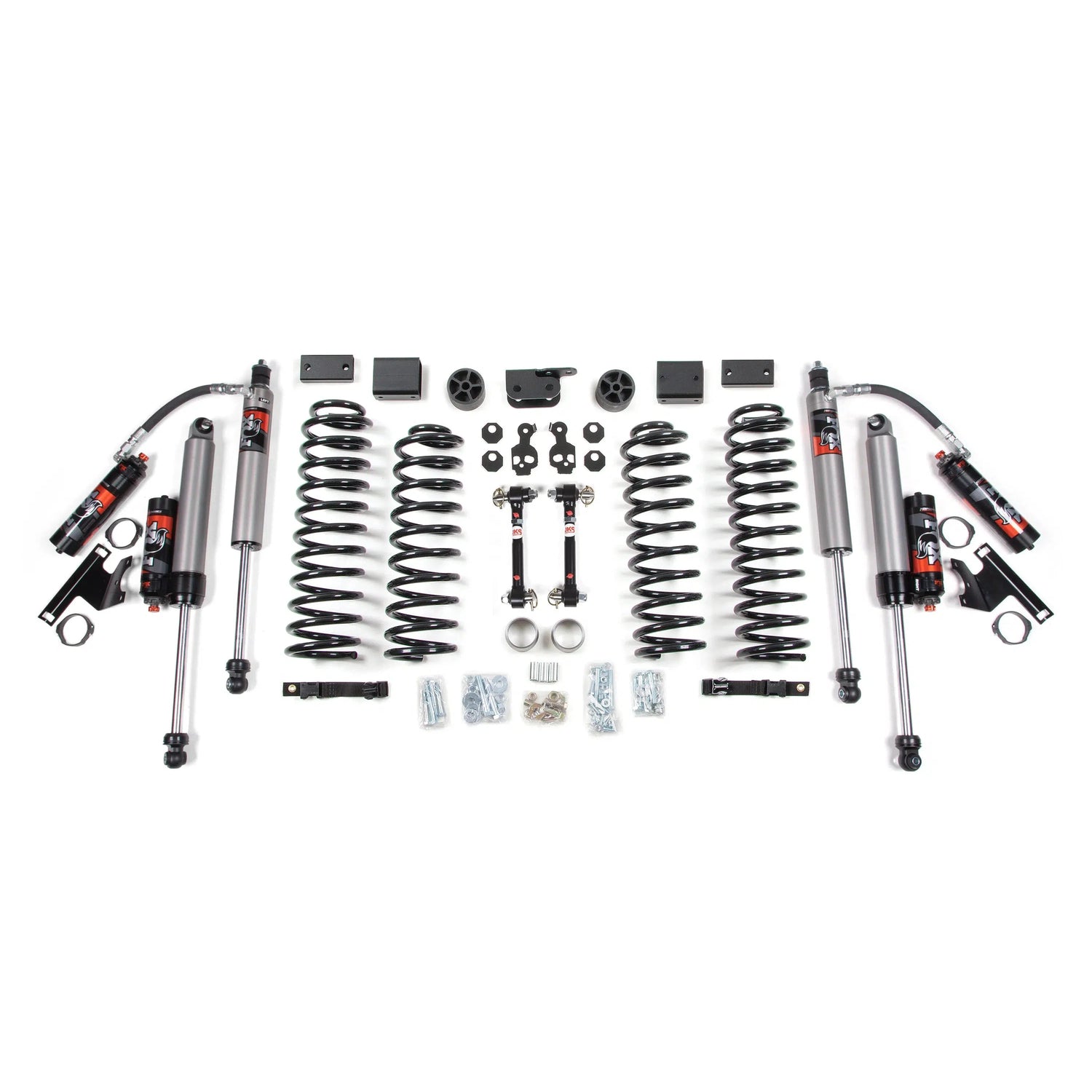

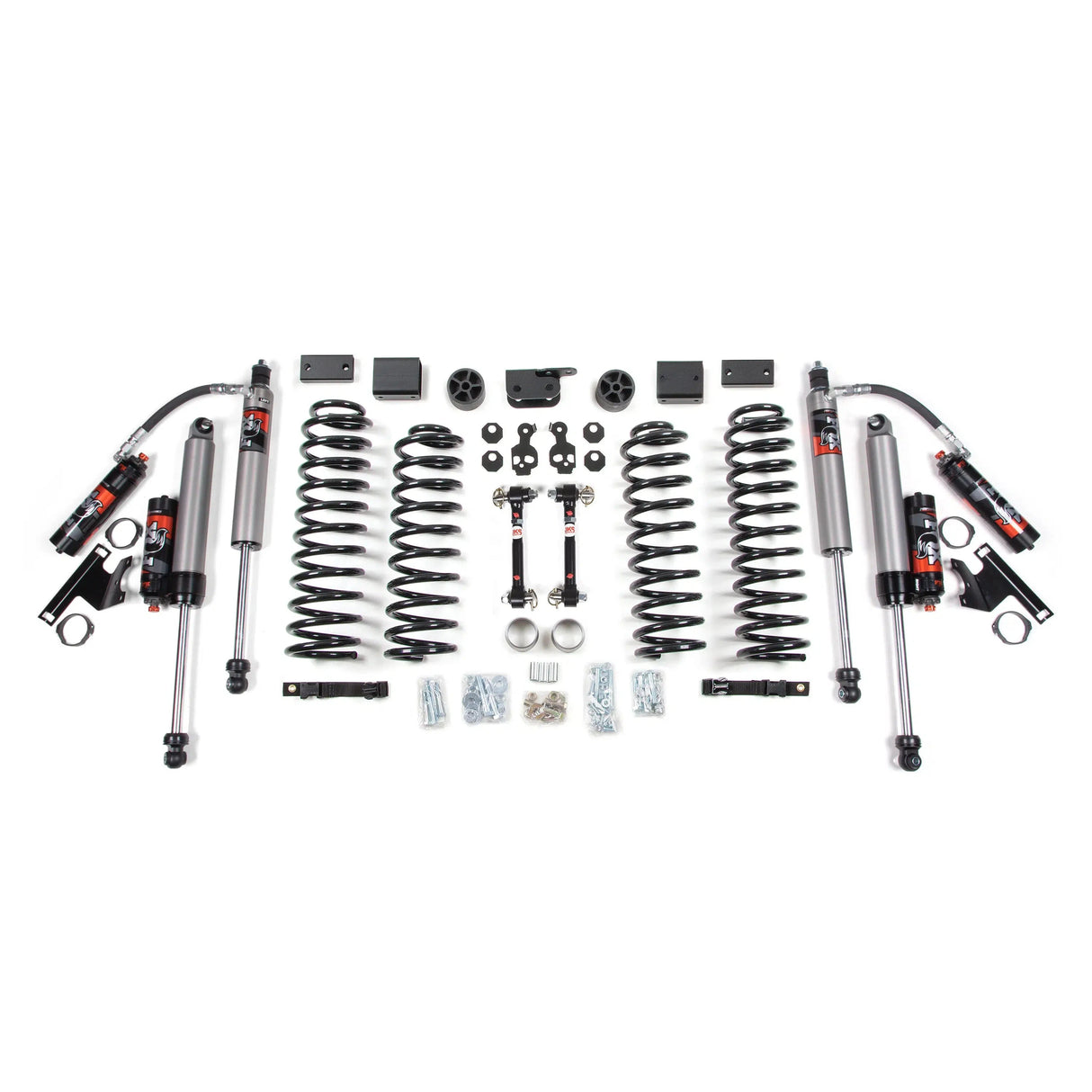

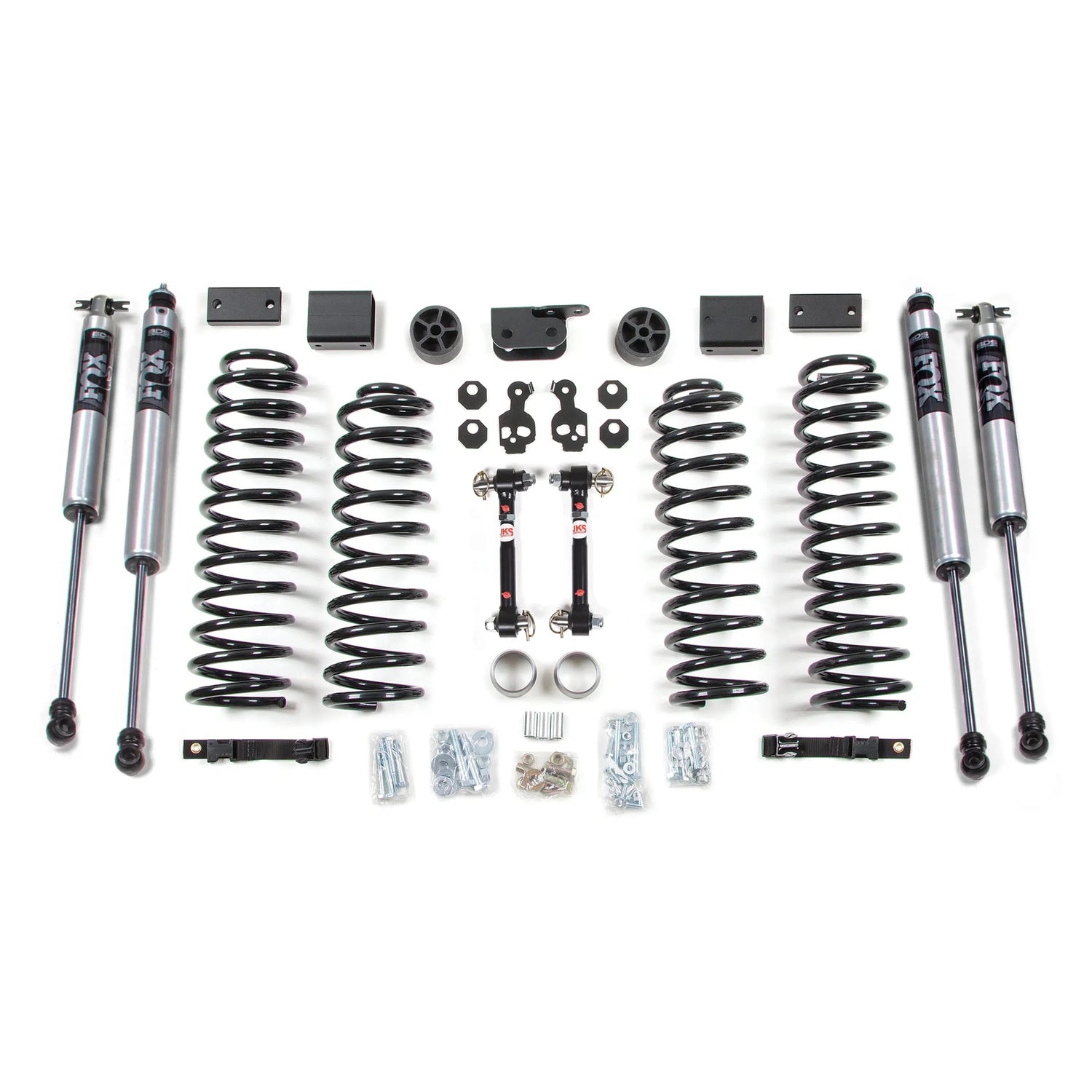

2012-2018 Wrangler 3" Lift Kit (BDS1416H)

Fits

The Wrangler has always been a go-to for a lot of off-road enthusiasts, give it a little extra kick and capability with this BDS 3" lift. Featuring 3" Pro-Ride coil springs capable of full coil bind & 2" bump stop extensions to control the compression travel, but increase wheel travel. With fixed or quick disconnect sway bar links.

Part Number: BDS1416H

• ProRide coil springs offer improved ride quality and more articulation
• Sway bar quicker disconnects and extended rear link for improved offroad flex
• Rear track bar bracket repositions rear axle under vehicle
• Lower cam locks to correct caster for alignment
• Choice of NX2 gas or FOX 2.0 IFP performance series shocks for improved damping
• Allows clearance for 35" tires

Wheel & Tire Fitment:

• 35 x 12.5 with 16 x 8 and 4.5 in. Backspace

Sway Bar Link Option

Disconnects:

• Gain 30% more axle articulation by disconnecting your front sway bar

• Convenient grease fittings ensure easy bushing lubrication for smooth, silent operation

• Stainless tapered mounting posts and self-align bushings allow you to connect or disconnect on unlevel surfaces

• Spherical bushings provide unrestricted 360 degrees of rotation and 11 degrees of misalignment capability

Fixed Links:

• Required for use on Rubicon models with electronic disconnect.

• Improves handling with proper sway bar operating angle

• Heavy-duty steel construction with zinc finish

• Polyurethane hourglass bushings for long life and quiet operation

1. Removing the OE spring isolators will result in a 1" lift if desired
2. 124408 rear track bar or 124308 rear track bar relocation is recommended if using factory wheels
3. This kit is FMVSS No.126 Compliant
4. This kit is right-hand drive compatible
