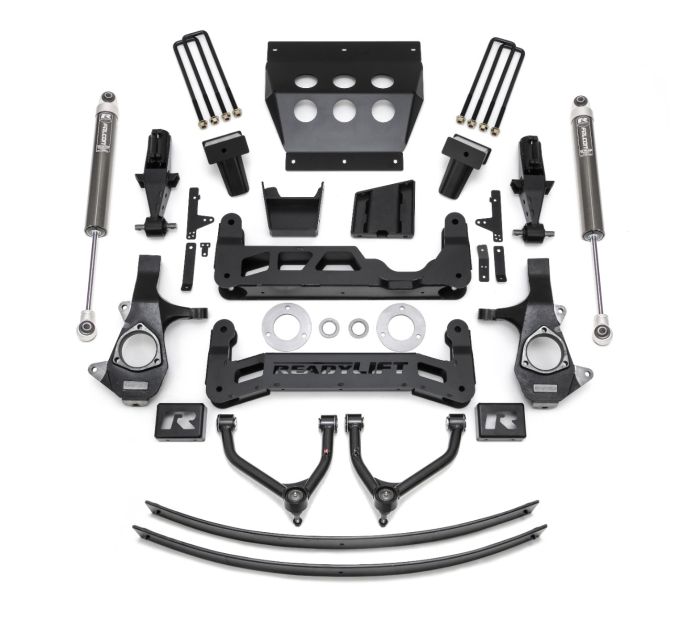

2014-2016 GMC 1500 9" Big Lift Kit w/ Cast Steel Suspension (44-34910)

Fits

The ultimate big lift kit for your 1500, ReadyLift has designed this kit specifically for factory cast steel front suspension. Featuring lower strut extensions, TCT bushings, and tubular UCAs provide you with superior strength and precise pivot points that will never add stress to your factory struts or compromise ride quality. Effectively increasing ground clearance for larger wheels and tires and improved articulation to conquer any terrain.

Part Number: 44-34910

• "clam-shell" style lower strut extension retains the use of the factory struts
• TCT lower bushings to provide a precise pivot point that maintains the factory ride
•  Boxed steel front/rear cross members and full-width front skid plate are constructed of thick 3/16" plate steel while also allowing for the use of the OE front plastic gravel guard
• 1/4" boxed plate steel differential drop brackets feature a double gusset & boxed center rib to take the abuse of front differential torsional twisting
• 3/16" thick plate steel rear lift blocks
• Built-in bump stop landings and an offset pin design to properly center the axle & specific angles to the blocks to retain the proper pinion angle

Tire Fitment:

• Fits up to a 37" tall off-road tire - and requires a 9" wide wheel with -12 offset for no rub
• Tire tread varies - some aggressive tires may require minor trimming

• Not for use on AWD applications
• Will work with trucks equipped with or without front MagneRide
• Not recommended for GMC Denali 1500 with REAR MagneRide or other models with Rear MagneRide.
