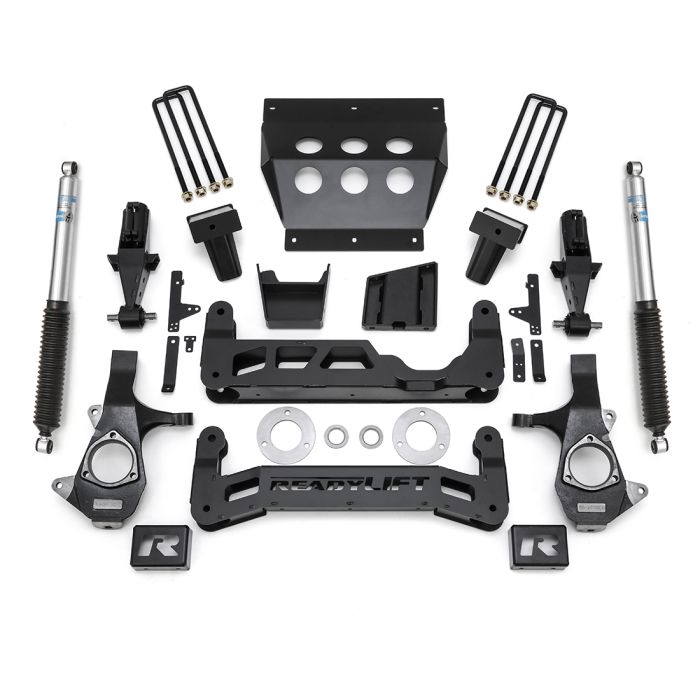

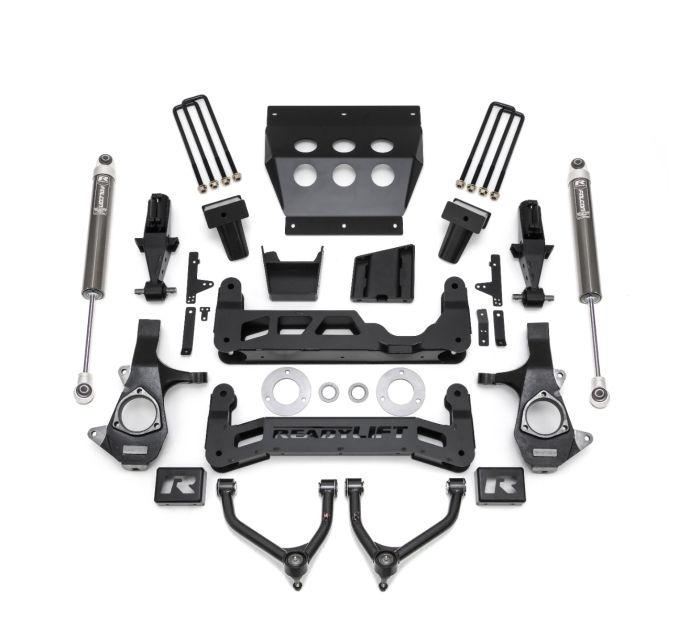

2014-2018 GMC 1500 7" Big Lift Kit w/ Aluminum Suspension (44-3470)

Fits

The ultimate big lift kit for your 1500, designed for use on trucks equipped with factory-forged Steel front suspension. Retains the factory turning radius while minimizing track width increase to less than 0.5" per side. If you want to increase, ground clearance, tire size, and explore harsher terrains/ trails without compromising your factory ride; this kit is for you.

Part Number: 44-3470/ 44-34720

• 2WD & 4WD ONLY
• TCT lower bushings to provide a precise pivot point that maintains the factory ride
•  Boxed steel front/rear cross members and full width front skid plate are constructed of thick 3/16" plate steel while also allowing for the use of the OE front plastic gravel guard
• 1/4" boxed plate steel differential drop brackets feature a double gusset & boxed center rib to take the abuse of front differential torsional twisting
• 3/16" thick plate steel rear lift blocks
• Built-in bump stop landings and an offset pin design to properly center the axle & specific angles to the blocks to retain the proper pinion angle
• Bilstein or Falcon 1:1 shocks included

Tire Fitment:

• Max tire: 35x12.50 on 9" wide wheel with -12 offset.

• Not for use on AWD applications
• Will work with trucks equipped with or without front MagneRide

Click here for installation instructions
