2014-2018 Cummins 4.5"/2.5" SST Lift Kit (69-1242)

Fits

The ReadyLIFT 69-1242 SST Lift Kit is the fastest, safest, and least expensive way to lift your 6.7L Ram 2500 without having to compromise the factory ride or handling. This option is a full bolt-on lift solution that allows for the installation of up to 37" tires!

Made with durable black e-coated steel, ReadyLIFT 4.5'' SST Lift coil spacers will not deteriorate or decrease ride height over time and allow you to retain the use of your factory front coil spring. This lift kit provides 4.5" of front lift and 2.5" of rear lift with heavy-duty fabricated steel coil spring spacers. To ensure perfect suspension geometry in order to maintain that factory ride, this kit includes the necessary front radius arm drop brackets and replacement front track bar relocation bracket. To top it off the Readylift 69-1242 kit also utilizes front/rear shock extensions, bump stop extensions, longer sway bar end links, and front sway bar frame side spacers.

Part Number: 69-1242

• Maintains the factory ride
• Improves off-road performance
• Frame-mount radius arm drop brackets allow the OEM alignment geometry to be retained
• 4.5" front lift
• 2.5" rear lift

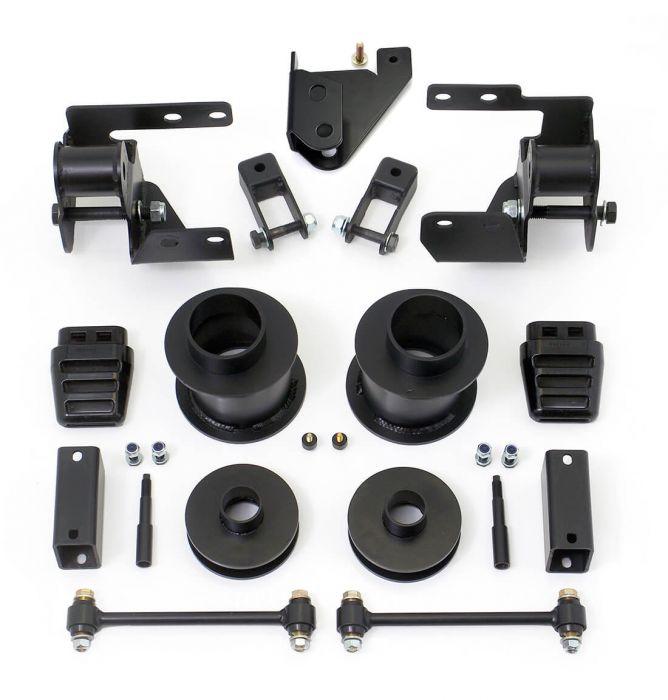

Includes:

• (2) front coil spring spacers.
• (2) rear coil spring spacers.
• (2) radius arm drop brackets.
• (2) front shock extensions.
• (2) rear shock stem extensions.
• (2) extended front bump stops.
• (1) front track bar bracket.
• (2) front sway bar mount spacers.
• All necessary hardware and instructions.

Tire Fitment:

• 37" Maximum tire diameter
• 37x12.50 for no rub on a 9" wide wheel with 0 offset
• 18" - 37X12.5R18
• 20" - 37X12.5R20
• 22" - 325/60R22

• For use only with the new radius arm suspension trucks with rear coil springs.
• Not for use with Power Wagon, snow prep package or ambulance package equipped vehicles
• For Diesel Engine trucks (gas engine trucks will sit slightly nose high)
• Note: For use on 4WD Ram 2500 Diesel trucks with the new radius arm suspension and rear coil springs only. This kit is not compatible with trucks with Auto-Ride or Power Wagons.

• Not compatible with Auto-Ride.
