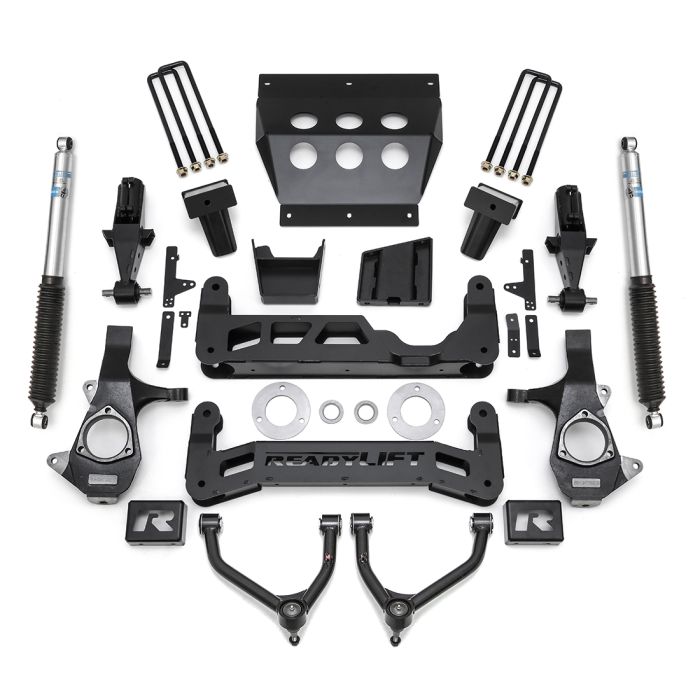

2014-2018 GMC 1500 7" Big Lift Kit w/ Stamped Steel Suspension (44-3472)

Fits

A significant amount of engineering and development go into making these big lift kits work competently in your 1500. From tubular upper control arms to retain your factory turning radius and minimizing track width, allowing you to clear 35" tires. Lower strut extensions with TCT bushings allow you to retain the factory struts with no rotation required and provide an accurate pivot point that will never compromise the factory ride quality or handling. Effectively providing you with improved ground clearance, incredible articulation, and predictability for one amazing off-road ride over any terrain.

Part Number: 44-3472

• TCT lower bushings to provide a precise pivot point that maintains the factory ride
•  Boxed steel front/rear cross members and full-width front skid plate are constructed of thick 3/16" plate steel while also allowing for the use of the OE front plastic gravel guard
• 1/4" boxed plate steel differential drop brackets feature a double gusset & boxed center rib to take the abuse of front differential torsional twisting
• 3/16" thick plate steel rear lift blocks
• Built-in bump stop landings and an offset pin design to properly center the axle & specific angles to the blocks to retain the proper pinion angle
• Bilstein shocks included

Tire Fitment:

• Allows for up to a 35" tall off-road tire
• Requires at least a 9" wide wheel with -12 offset

• Tire tread varies - some aggressive tires may require minor trimming.
• Not for use on AWD applications
• Not recommended for GMC Denali 1500 with REAR MagneRide or other models with Rear MagneRide
• Front MagneRide is okay
• Can be used on trucks with factory Aluminum front suspension
• Not for use on AWD applications - 2WD or 4WD only
• Single Cab configuration has not been validated for fitment & drivability by ReadyLIFT

• ReadyLIFT Suspension Inc. and/or Dirty Diesel Customs are NOT responsible for any damage or failure resulting from improper installation.
• Click here to view installation instructions
