2014-2020 3.0L Powerstroke 3.5" SST Lift Kit (69-2300)

Fits

 The ReadyLIFT 3.5" SST Lift Kit is developed to give 2015-2020 F-150 owners a packaged front/rear lift option that lifts the front of the vehicle 3.5" with 2" in the rear. This creates a popular overall lifted stance that isn't too high, but high enough to allow for 35x11.50 tires. These lift systems capitalize on the popularity of Readylifts tubular control arm design SST lift kits while incorporating many other advanced features.

To lift the rear they have included OEM style 3" tall cast rear lift blocks with built-in bump stop landing pads which include dual locator pins. For trucks with a two-piece driveshaft, they also throw in a carrier-bearing spacer. Combine all these features and you gain an excellent driving and handling suspension system that truly upgrades your Ford F-150 truck!

Part Number: 69-2300

• Maintains the factory ride and handling

• Ensures the proper geometry and alignment by utilizing the DOM Upper Control Arm.
• Allows for the installation of up to 35" tires
• 3.5" front lift
• 2" rear lift

Tire Fitment:

• 35x12.50 Max on a 9" wide wheel with +12 offset
• Some minor trimming may be necessary depending on the tire design.
• Recommended tire:
• 285-50-R22
• 285-65-R20
• 285-75-R18

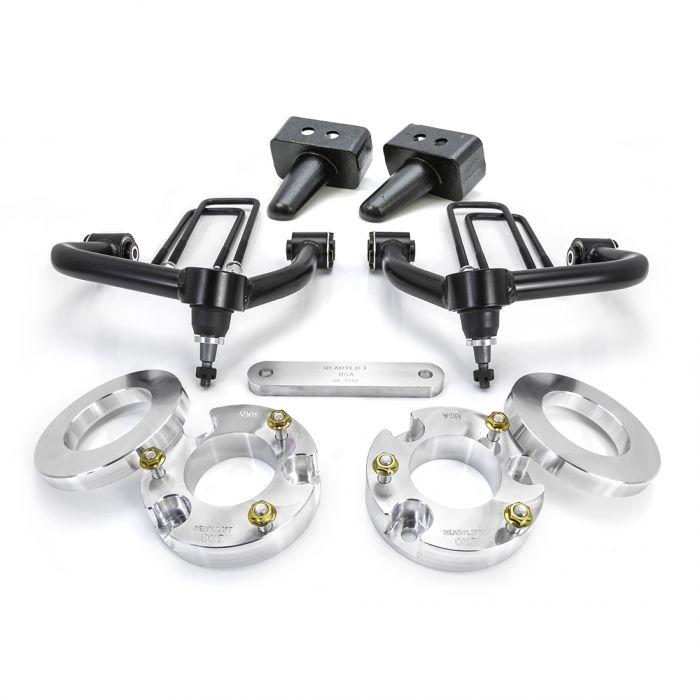

Includes:

• (2) heavy duty DOM tubular steel control arms with corrected cup angles
• Heavy-duty ball joints and one-time grease urethane bushings.
• (2) CNC machined billet aluminum offset top mount strut extensions
• (2) CNC machined billet aluminum strut spring pre-load spacers.
• (2) 3" rear lift blocks with new longer u-bolts and hardware.

This kit is not for use on trucks that are factory pre-lifted/leveled or that have the "off-road package". Check factory height prior to ordering or installing. Trucks with more than 22" of wheel hub to fender lip height may require less lift.
