2015-2020 F-150 3.5" SST2.1 Suspension System (62-23040)

Fits

Get ready, because ReadyLIFT offers their new 3.5" SST2.1 lift kit for the 2015-2020 Ford F-150 4WD! This lift solution is perfect for achieving a slightly aggressive yet still cool lifted look, all while keeping that smooth factory ride intact. This latest 3.5" lift kit features the brand new Falcon 2.1 series front strut and rear shock system, delivering an unbeatable ride quality and freeing up room for bigger wheels and tires with a 3.5" front lift and 2.5" rear lift over the stock height.

The Falcon 2.1 system includes front monotube struts and rear adjustable piggyback shocks. SST 2.1 allows you to adjust the suspension for daily, sport, or work duties with the Falcon 2.1 Sport Tow/Haul Shocks. With easy-to-use 3-position Fast-Adjust settings - Sport/daily, Moderate Tow/Haul, and Heavy Tow/Haul - you can find the perfect tune. Falcon Performance Shocks enhance performance and comfort on any terrain. These versatile systems are great for daily driving, off-road adventures, and tow/haul tasks. ReadyLIFT's engineers also created upgraded DOM tube steel upper control arms with corrected ball joint angles, complete with (4) alignment cam plates, to complement the advanced Falcon strut/shock design. The ReadyLIFT 3.5" SST2.1 Kit is specifically designed for the new 2015-2020 Ford F-150 4WD pickups. The maximum size tire/wheel fitment for use with this kit (without trimming) is a 295/60R20 on a 9” wide and +18 offset wheel.

Part Number: 62-23040

• 3.5” front lift with a 2.5” rear blocks.
• Allows for up to 295/60R20 on a 9" wide and +18 offset.
• Fit up to a 35" x 12.5" wheel 20" x 9" with +12 offset with minor trimming.
• DOM tubular steel Upper Control Arms with market-best heavy-duty high-angle proprietary ball joint.
• Unmatched curb-appeal and rugged mid-size truck capability delivered in an affordable yet innovative Smart Suspension Technology “no-cut” lift kit.
• “High-Value Performance” is the driving force behind our new vehicle-specific Falcon shocks.
• Falcon shock absorber systems are tuned for comfort with predictive handling, control, and stability on-road and offroad.

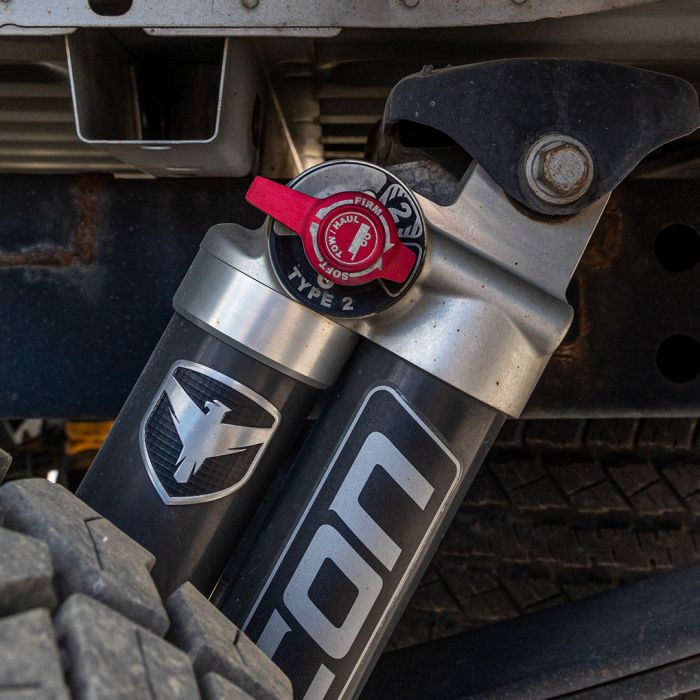

• Rear adjustable 3-position Falcon 2.1 shocks tune for daily, sport, or work duties.
• Vehicle-specific performance-tuned Falcon 2.1 dampers on all four corners.
• Improved dynamic roll control and low-speed damping.
• Dramatic improvement in on-road comfort and off-road performance.
• Optimized fitment for unobstructed suspension travel and articulation.
• 6061-T6 aluminum alloy shock body resists Impact to protect internal components.
• Smooth-honed internal shock body surface for long-term performance.
• 3/4” induction hardened chrome plated shaft resists rock damage, corrosion, and shaft buckling.
• Large shaft diameter provides a wide range of adjustments on adjustable shocks.
• Hard anodized 6061-T6 aluminum alloy billet piston.
• 1-piece Teflon bronze piston wear band w/ O-ring.

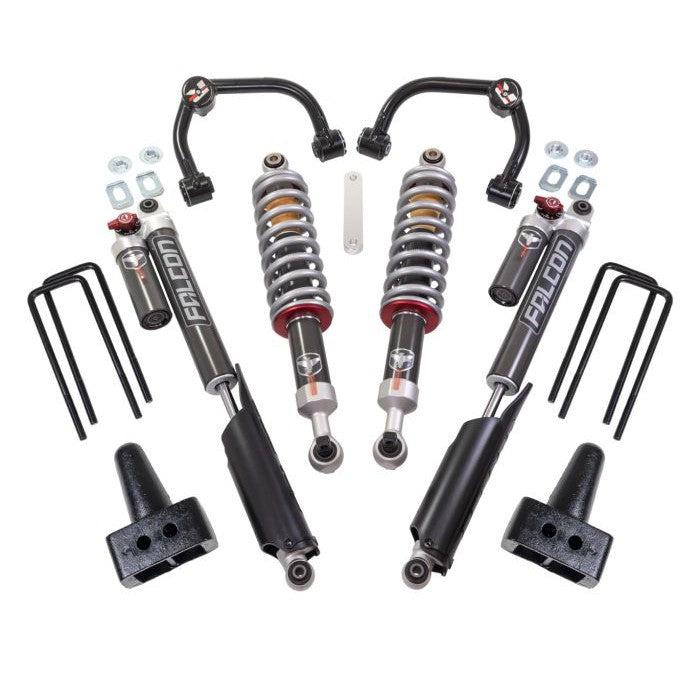

Includes:

• Falcon 2.1 Monotube Front Schock
• Falcon 2.1 Tow Shock
• UPPER CONTROL ARM
• UPPER CONTROL ARM
• ALIGNMENT CAM
• ALIGNMENT PLATE
• 3'' REAR BLOCK KIT
• Carrier Bearing
• HARDWARE PACK

• Estimated Install Time: 6 Hours +/- 1 Hours  (excluding alignment and wheel/tire assembly)
• Click Here

Notes:

Installation Alignment Note:  Your vehicle may require alignment after product installation. You may incur additional costs to align the vehicle.

Installation Headlamp Aim Note:  In addition to your vehicle alignment, for your safety and others, it is necessary to check and adjust your vehicle headlamps for proper aim and alignment after product installation.  You may incur additional costs to adjust the headlamp system.

 Installation Advanced Driver Assistance Systems (ADAS) Note:  If your vehicle is equipped with active or passive safety/collision monitoring and/or assistance/avoidance systems including, but not limited to, camera- or radar/sonar-based systems, check and adjust your vehicle’s systems for proper aim and function after product installation.   In some instances, your vehicle may require OEM dealer service tools and factory-trained technicians to re-calibrate ADAS.  You may incur additional costs to adjust ADAS systems.

SAEJ2492 WARNING: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or rollover during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner's manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.

• Check factory height prior to ordering or installing. Trucks with more than 22" of wheel hub to fender lip height may require less lift.

Tire Fitment

• 35x12.50 Max on a 9" wide wheel with +12 offset

Some minor trimming may be necessary depending on the tire design.

Recommended tire:

• 285-50-R22
• 285-65-R20
• 285-75-R18

Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.

Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.
