2016-2023 Tacoma XB Evo LED Headlights (LF2-530)

Fits

The XB Evo LED headlights; the latest in LED technology from Morimoto. This set features new optics that enable light output that exceeds the rigorous standards of the IIHS and an optional Supercharged LED driver to boost intensity by 30% (off-road use ONLY), nothing out performs the XB Evos, on or off-road.

Part Number: LF2-530

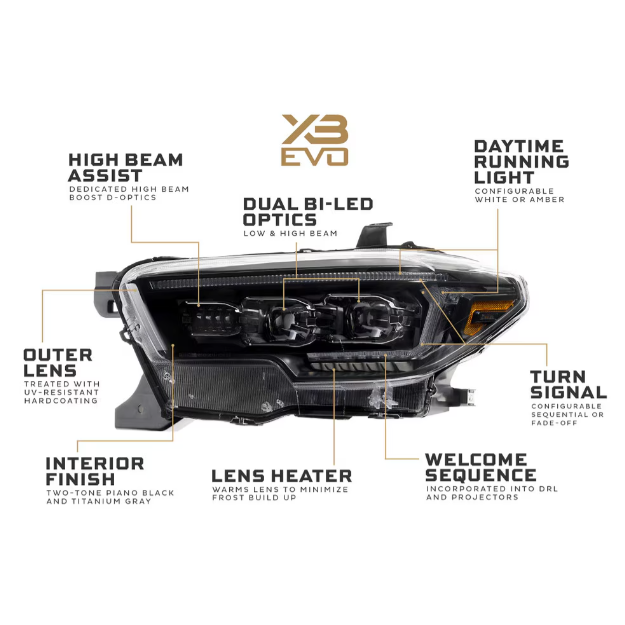

• New optics enable light output that exceeds the rigorous standards of the IIHS
• Utilizes dual Bi-LED projectors; latest in LED technology
• DOT Compliant for public roads
• Optional Supercharged LED driver to boost intensity by 30%
• Warms the lens surface to prevent frost buildup during wet/ snowy conditions -  activate this by flashing high beams 4 times
• Signal swap keys enable users to personalize the operation of running lights and turn signals

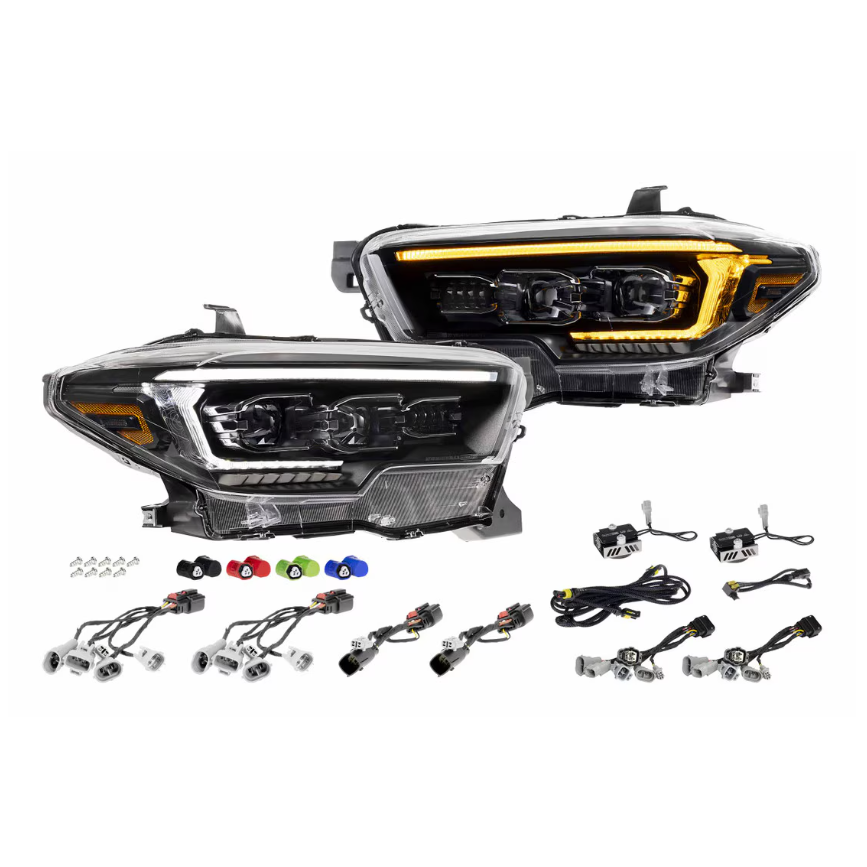

Includes:

• Headlight pair
• x8 function selectors
• x2 halogen adapters
• x2 LED adapters
• x2 magnet mount resistors
• DLR harness
• Fuse tap
• x9 screws

• Traffic Pattern: LHD / Right Hand Traffic Only
• Output (Standard Drivers): DOT (FVMSS108) Compliant (LB2V and UB2)
• Output (Supercharged Drivers): Non-Compliant
• Main Optics: 2x Type 1 Ishida Optic Bi-LED (1x Nichia NC4W193F @ 750mA)
• High Beam Assist: 1x Type D Ishida Optic HB (4x Nichia NCSW131G @ 750mA)

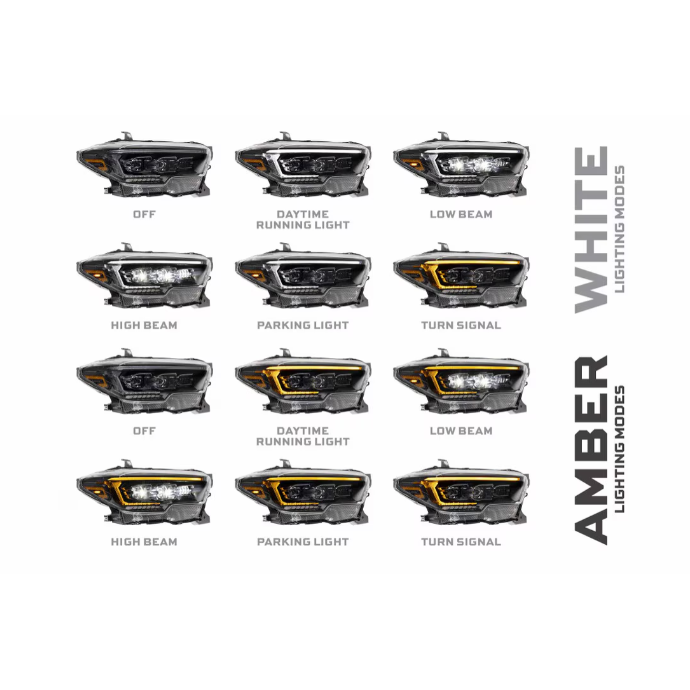

• Functions: Low, High, Park, Turn, DRL, Welcome, and Lens Heating
• Turn Signal Modes: Sequential or Fade Off (Integrated)

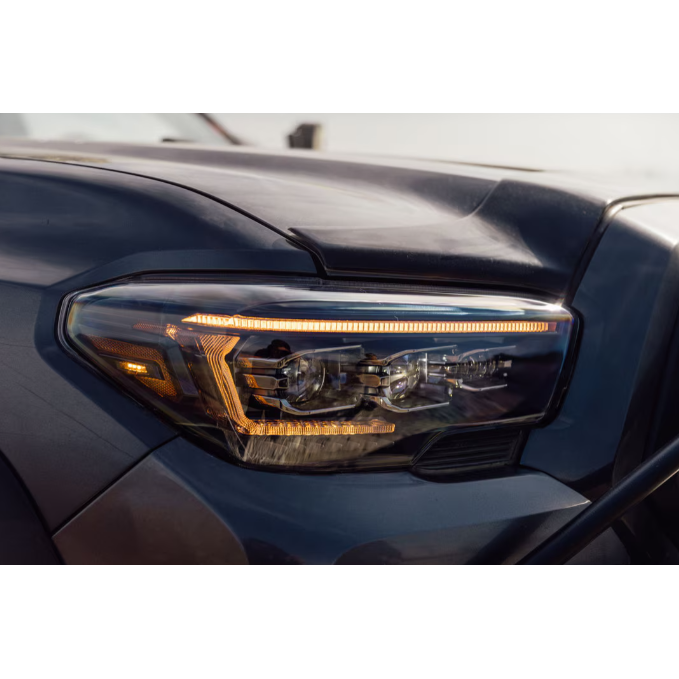

• DRL Colors: White or Amber (Integrated)
• DRL/Signal Optics: Glass-like 3D TIR Optics with Topography sidewall pattern
• Frost-Free System: Logic Controlled 50W Ceramic w/ circulation fans
• Internal Finish: Two-tone piano Black and Titanium w/ contrasting textures
• Side marker: Amber side reflex reflector (DOT compliant)
• Wiring: Plug n Play for all sub-models within model year range
• Lens Details: Polycarbonate with UV-Shield Hard coating (Exceeds OE Toyota benchmark)

•  Installation of Optional Supercharged Drivers results in non-compliant intensity
• Meets all DOT, SAE and FMVSS108 Standards
• These headlights were developed for compatibility with North American vehicles. Morimoto does not guarantee compatibility on trucks outside of North America
