2017-2025 Powerstroke 2.5" Lift Kit w/ 2-Piece Driveshaft (69-2741)

Fits

The Ford Super Duty platform has always been at the forefront of HD performance. ReadyLift is constantly developing and engineering innovative ways to increase the suspension of these already very capable pickups. The 2.5" SST Lift Kit is specially designed for pickups with a 2-piece driveshaft. Coil spacers with sound isolators, shock extensions, and sway bar drop mount spacers provide you with more ground clearance, a strong stance, and robust performance on any terrain, giving you the ability to install 37" tires without compromising factory geometry and ride quality.

Part Number: 69-2741

• Maintains the factory ride
• Provides a slight rake, which is ideal for towing or hauling applications
• Allows for the installation of up to 37" tires (with some trimming). However, 35" tires are best suited for this kit
• No cutting or drilling is required
• 2.5" front lift & 2" rear lift

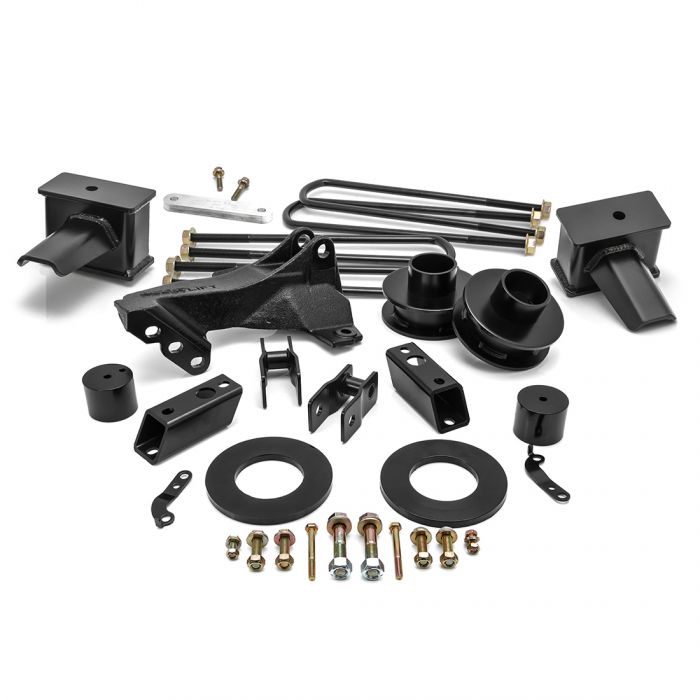

Includes:

• 2.5" coil spring spacers with sound isolators
• Fabricated steel rear lift blocks with longer u-bolts
• CNC-machined billet carrier bearing spacer
• OEM-style front track bar relocation bracket
• Longer sway bar end links, brake line bracket, & bump stop extensions
• Front shock extensions

Wheel & Tire Fitment:

• 35" is best. 37" can fit with some possible trimming

• For use on Single Rear Wheel trucks with 2-piece drive shaft only
• Not compatible with TREMOR editions.
• The lift blocks in this kit are not designed to work with aftermarket or factory add-on air spring/load leveling kits that attach to the bump stop tangs. The use of this type of airbag system will void all block warranties and can cause the failure of the block bump stop tang.
• 2020 MY Super Duty may sit slightly taller in the rear than prior model years due to block height variations from the Ford factory. The additional rake works well visually with the vehicle's body lines.

• ReadyLIFT Suspension Inc. and/or Dirty Diesel Customs are NOT responsible for any damage or failure resulting from improper installation.
• Click Here For Installation Instructions
